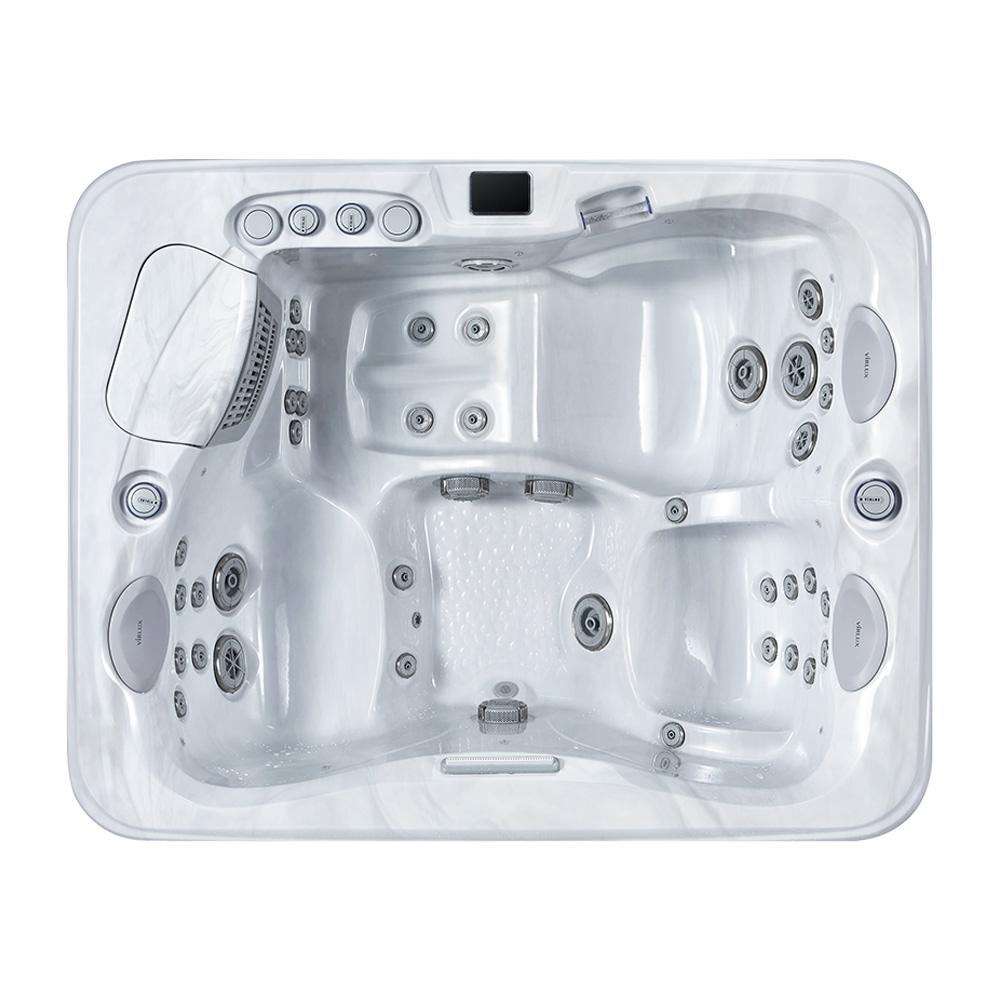

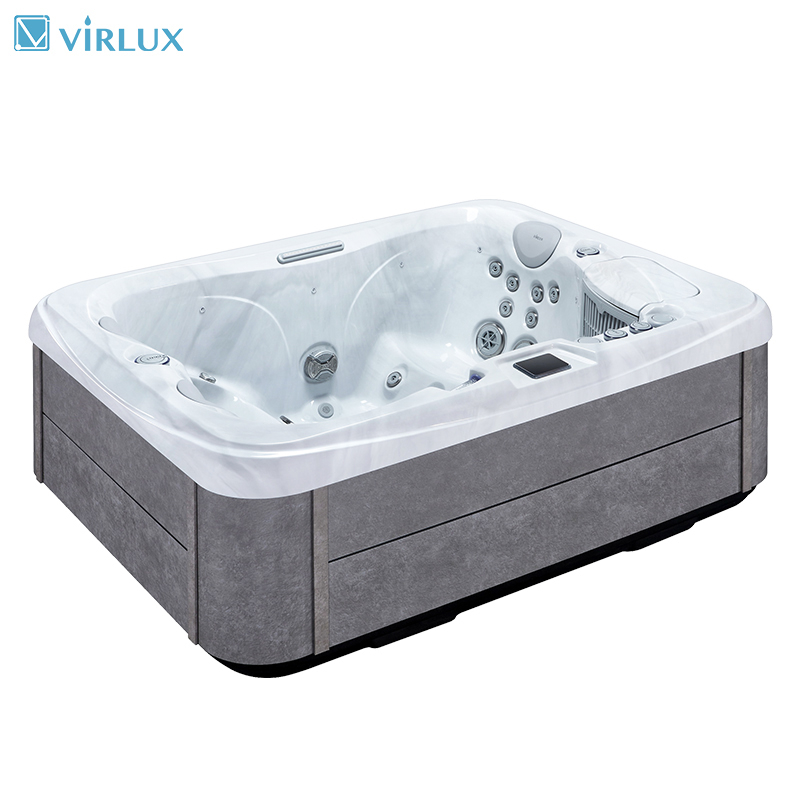

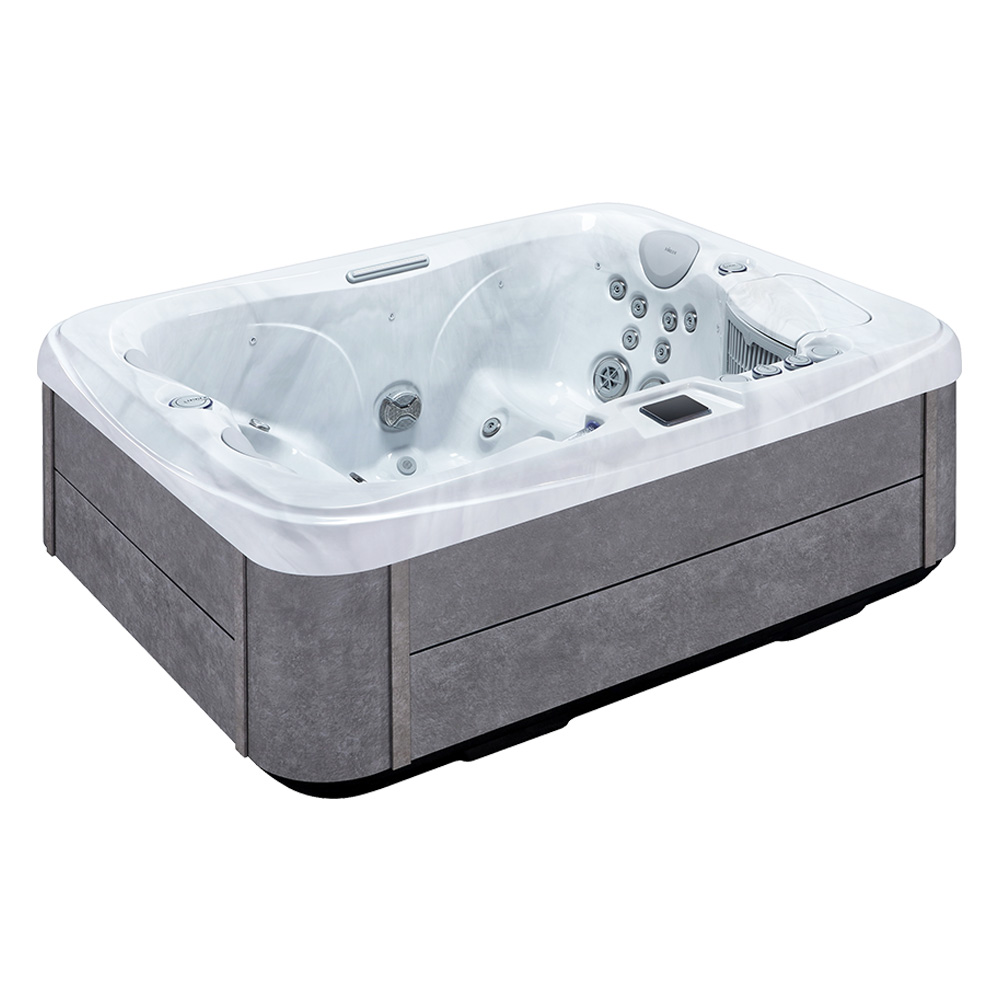

V1006
| Quantity: | |
|---|---|
2100×1650mm fits standard balcony dimensions (many European balconies are 2000–2500mm deep). The narrow 1650mm width leaves room for a bistro table or potted plants alongside the spa.
One 2.0HP main pump plus a 0.5HP circulation pump reduces energy draw compared to dual-pump models. The 3.0kW heater works efficiently with the smaller water volume and multi-layer insulation.
Parameter | Specification |
Model | V1006 |
Dimensions (L x W x H) | 2100*1650*800mm |
Seating Capacity | 2 adults |
Lounge Seat (s) | 1 adult |
Water Capacity | 1,391 liters |
Dry Weight | 350 kg |
Filled Weight | 1,811 kg |
Spa Shell Material(USA) | Aristech ® Acrylic |
Spa Cabinet Material | PS Wood-Plastic Composite Panels |
Cabinet Frame | Preserve Woods+ stainless steel |
Bottom (Pedestal Base) | ABS sheet |
Jet Ring Trim | White Grey Plastic |

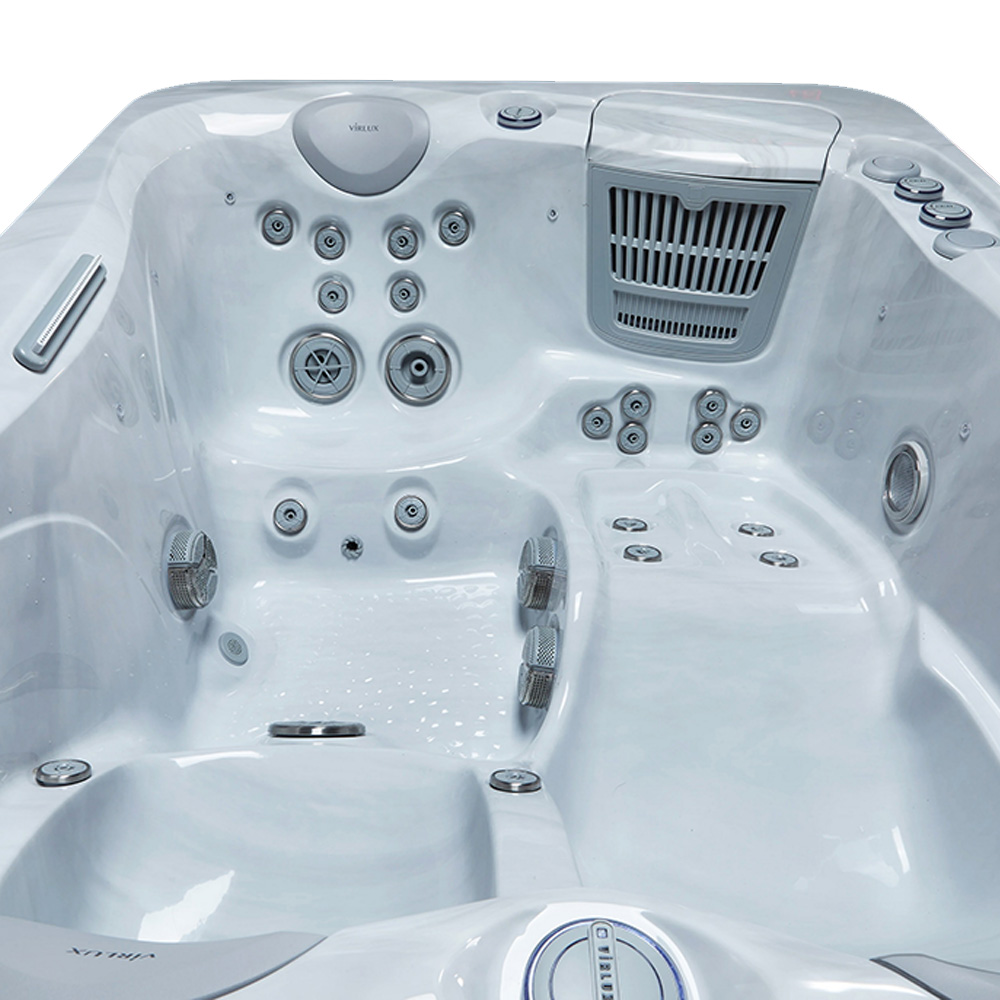

Total Jets (pcs) | 37 |
6' Rotational Jets (pcs) | 2 |
6' Directional Jets (pcs) | 3 |
4' Rotational Jets (pcs) | 2 |
2.5' Directional Jets (pcs) | 30 |
Ozone Jets | 1 |
Joyonway Control system | P68B123 |

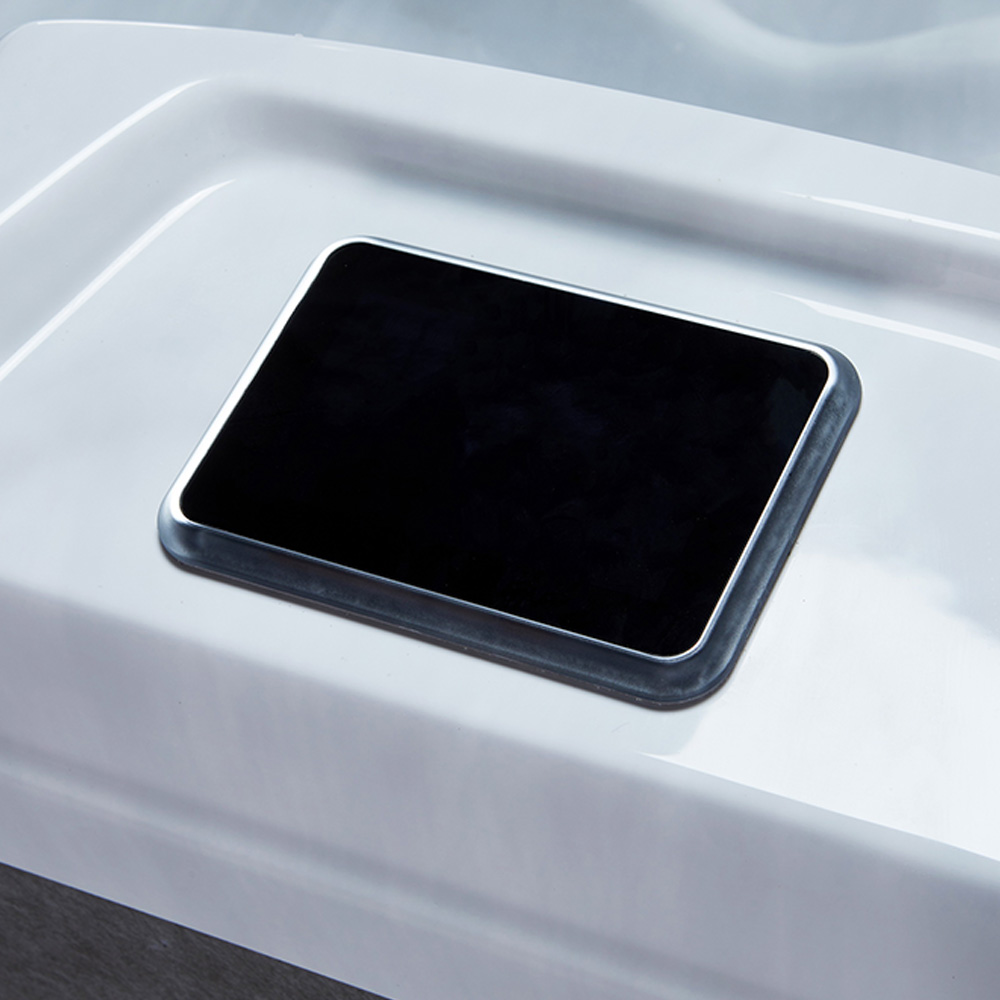

Joyonway Touch panel | PB565 |
Pump 1(CE, TUV Approved) | One-speed / 1*2.0HP |
Circulation Pump (CE, TUV Approved) | 1 x 0.5HP |
Heater(CE, UL Approved) | 1 x 3.0kW |
Lighting(ETL Approved) | 1x12V, Multi-colored LED Underwater Light |
Ozone Water Purification System | Yes |
Electrical Requirements | 220-240V/50Hz, 22A Max. |

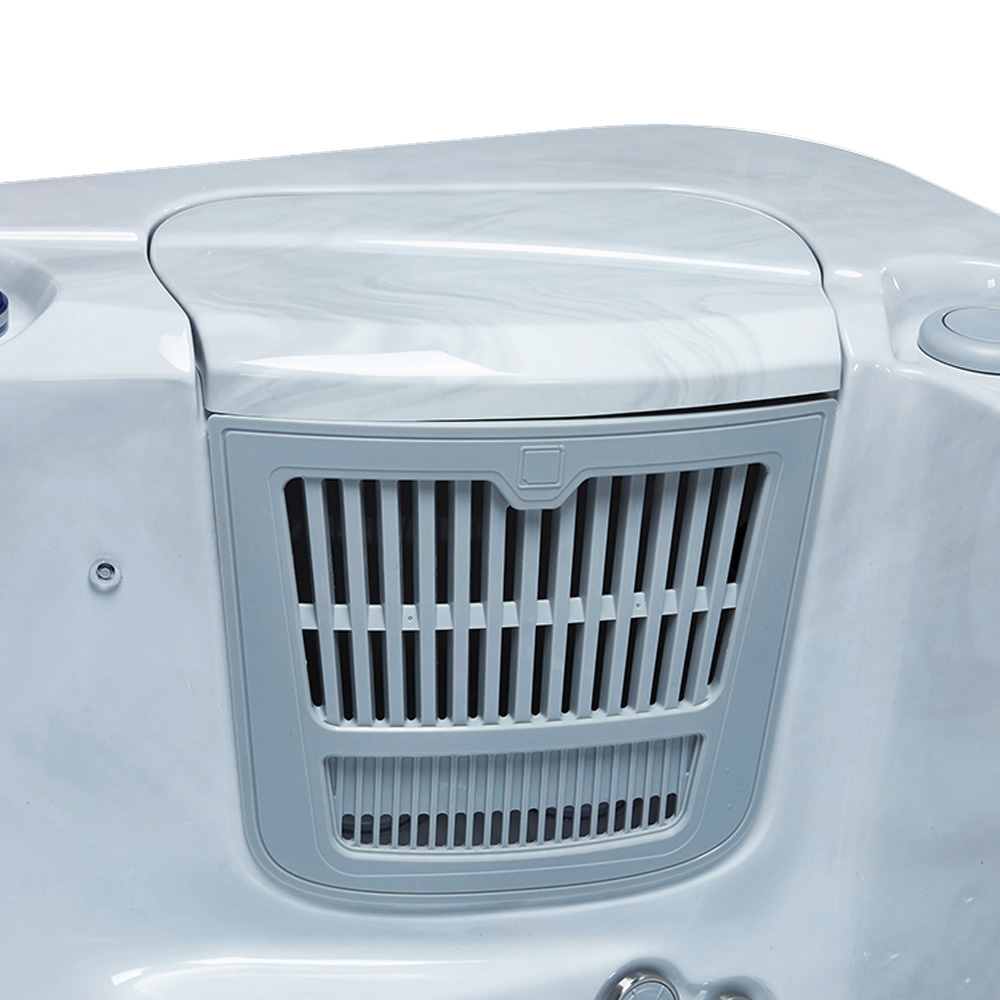

Filter Size | 50sq.ft. |
2' Diverter Valve(pc) | 2 |
1' Diverter Valve(pc) | 2 |

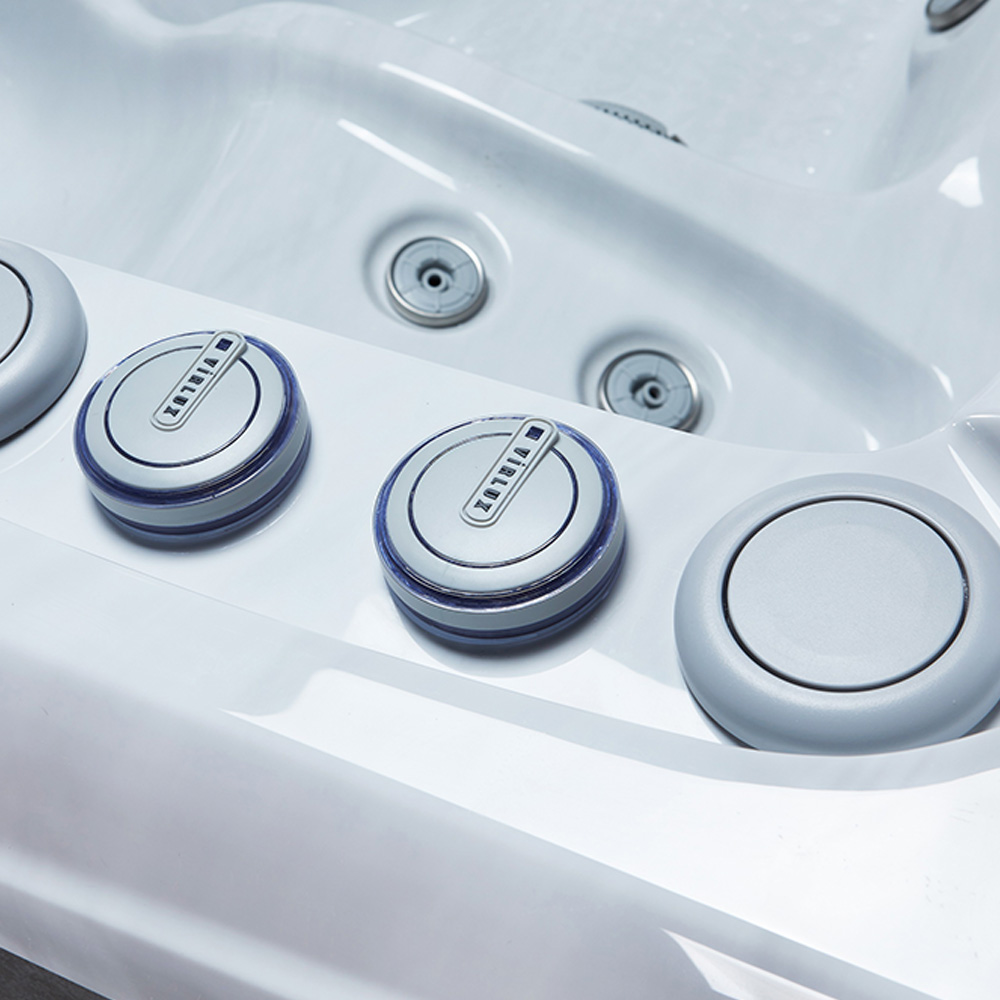

Air Control Valves (pcs) | 4 |
EVA Spa Pillows(pcs) | 3 |
Bottom Drain(pc) | 1 |
Drain Valve(pc) | 1 |
Apartment Balconies (Concrete Construction)
Many European and Australian apartments have concrete balconies rated for 3–5 kN/m². The V1006's 1,811kg filled weight spread over 3.465m² equals ~523 kg/m²—within many modern building codes.
Couples with Limited Outdoor Space
No yard? No problem. The V1006 turns a 7-foot balcony into a private wellness retreat. One partner uses the lounger while the other sits upright; swap after 20 minutes.
Rooftop Decks (Weight-Sensitive)
Lighter than full-size spas by 70kg, the V1006 improves the safety margin for rooftop installations. Combined with weight distribution pads, it's feasible for buildings that reject larger spas.
First-Time Spa Owners in Urban Areas
City dwellers often assume a spa is impossible without a suburban yard. The V1006 changes that math, offering a genuine lounger experience in an apartment-friendly size.
Home Gym Adjacent
Place the V1006 next to your home gym setup. After squats or deadlifts, step directly into the lounger—the 30 micro jets along the legs address soreness immediately.
Small Vacation Rentals (Studios/Cabins)
Tiny homes and studio cabins can offer a luxury amenity that doesn't consume the entire outdoor area. Renters searching for "private spa" will pay a premium.
Installation Requirements
Electrical: 220-240V / 50Hz, 22A dedicated circuit with GFCI/RCD. Many apartments have a 32A circuit for ovens—an electrician can tap that.
Foundation: Concrete balcony, reinforced deck, or compacted gravel pad. Never place directly on soil or grass.
Access: 2100×1650mm passes through standard entry doors (800–900mm width) when tilted; measure before delivery.
Getting Started
Position the V1006 on its level foundation.
Connect electrical through a licensed electrician.
Fill via garden hose through the filter compartment.
Power on; set temperature to 38°C via PB565 panel.
Add startup chemicals (reduced quantities due to smaller water volume).
Quick Tips
Balcony Load Distribution: Use 20mm-thick plywood sheets under the spa to spread weight over more balcony surface area.
Neighbor Courtesy: Run pumps before 10pm on shared balconies; the 48–52dB hum can travel through concrete.
Winter Drain Prevention: In freezing climates, never turn off power—the circulation pump must run to prevent pipe freezing.
Download Full Installation Manual (PDF) → [Click Here]
Q1: Can two people use the lounger at the same time?
A: No—the lounger is contoured for one person. The V1006 has one lounger and one upright seat, so both users soak simultaneously but in different positions.
Q2: How do I fill the V1006 on a balcony without a hose connection?
A: Use a 20-liter bucket or purchase a portable garden pump. Many apartment dwellers fill via 5-gallon jugs carried from the bathroom.
Q3: Is the V1006 allowed on balconies in my building?
A: Check your building's bylaws and consult a structural engineer. Many newer buildings (post-2010) are rated for spa loads; older buildings may not be.

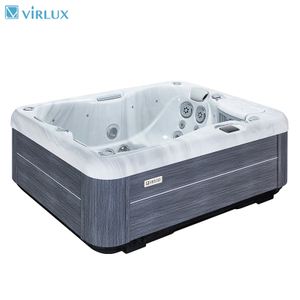

Q4: What's the difference between V1006 and V1015?
A: V1006 has 37 jets; V1015 has 25 jets. V1015 includes the T10 enhanced flow designation; V1006 does not. Both share the same 2100×1650mm footprint.
Q5: How long does the water stay hot without power?
A: Approximately 4–6 hours in mild weather (10°C), 2–3 hours in freezing conditions. The insulation is effective, but without the heater, temperature drops steadily.
Q6: Can I install the V1006 indoors (e.g., in a basement)?
A: Not recommended. High humidity can damage drywall and promote mold. If indoors, you'd need industrial-grade ventilation—outdoor installation is strongly preferred.
Q7: Does the V1006 come with a cover lifter?
A: No—cover lifters are optional due to space constraints on small balconies. The included cover is lightweight enough (approx. 8kg) for one person to remove manually.
Q8: What is the lead time for delivery?
A: Typically 14–21 days for Europe/North America, 21–30 days for Australia. Contact your regional distributor for current inventory levels.
