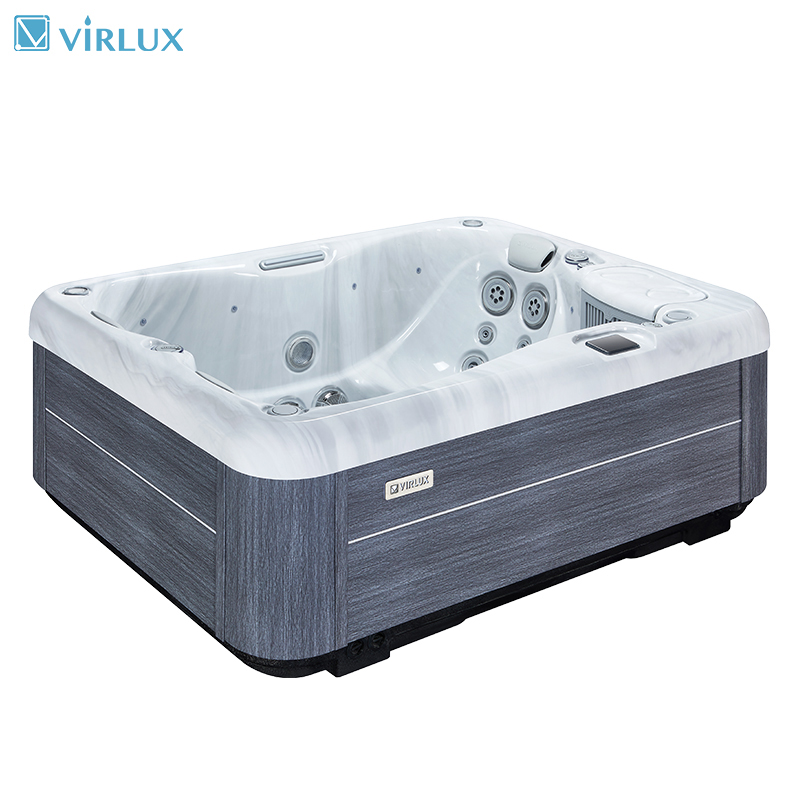

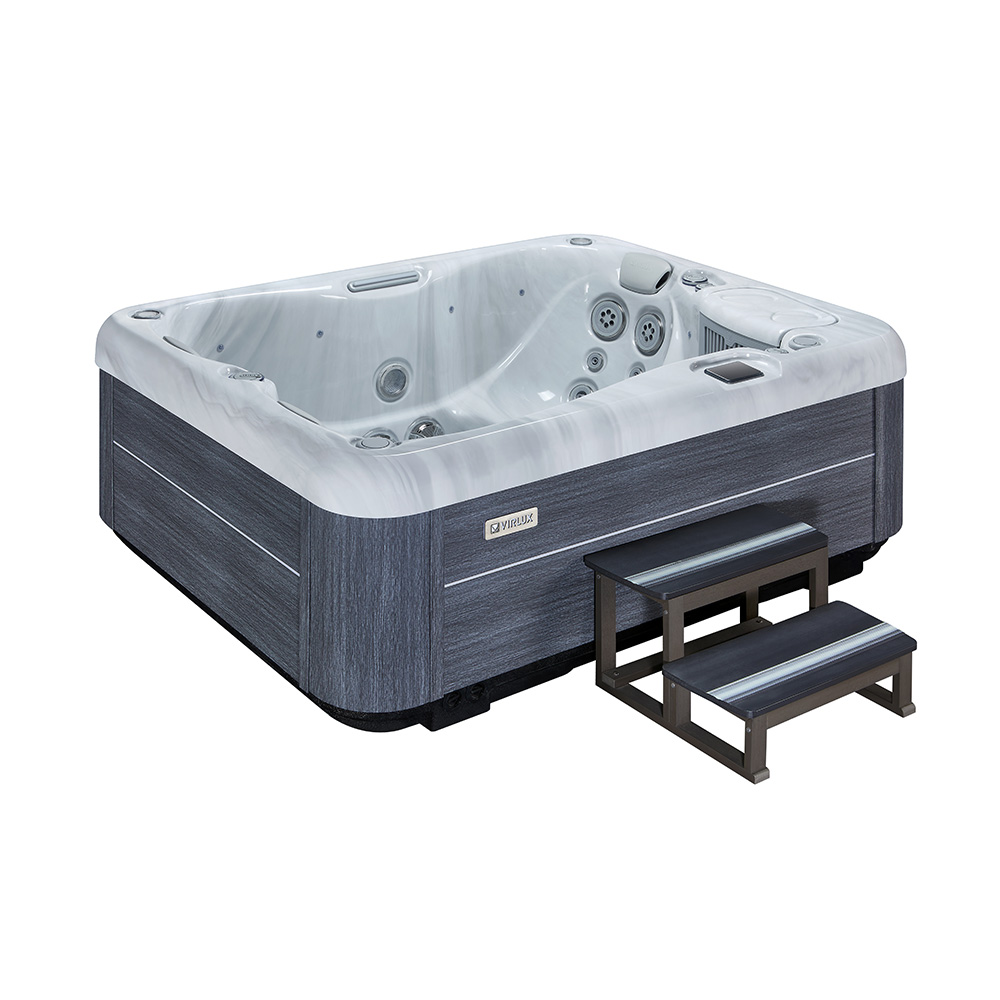

V1015
| Quantity: | |
|---|---|
2100×1650mm fits standard balcony dimensions (many European balconies are 2000–2500mm deep). Narrow 1650mm width leaves room for bistro table or potted plants alongside spa.
One 2.0HP main pump plus 0.5HP circulation pump reduces energy draw compared to dual-pump models. 3.0kW heater works efficiently with smaller water volume.
Parameter | Specification |
Model | V1015 |
Dimensions (L x W x H) | 2100*1650*800mm |
Seating Capacity | 2 adults |
Lounge Seat (s) | 1 adult |
Water Capacity | 1,391 liters |
Dry Weight | 350 kg |
Filled Weight | 1,811 kg |
Spa Shell Material(USA) | Aristech ® Acrylic |
Spa Cabinet Material | PS Wood-Plastic Composite Panels |
Cabinet Frame | Preserve Woods+ stainless steel |
Bottom (Pedestal Base) | ABS sheet |
Jet Ring Trim | White Grey Plastic |

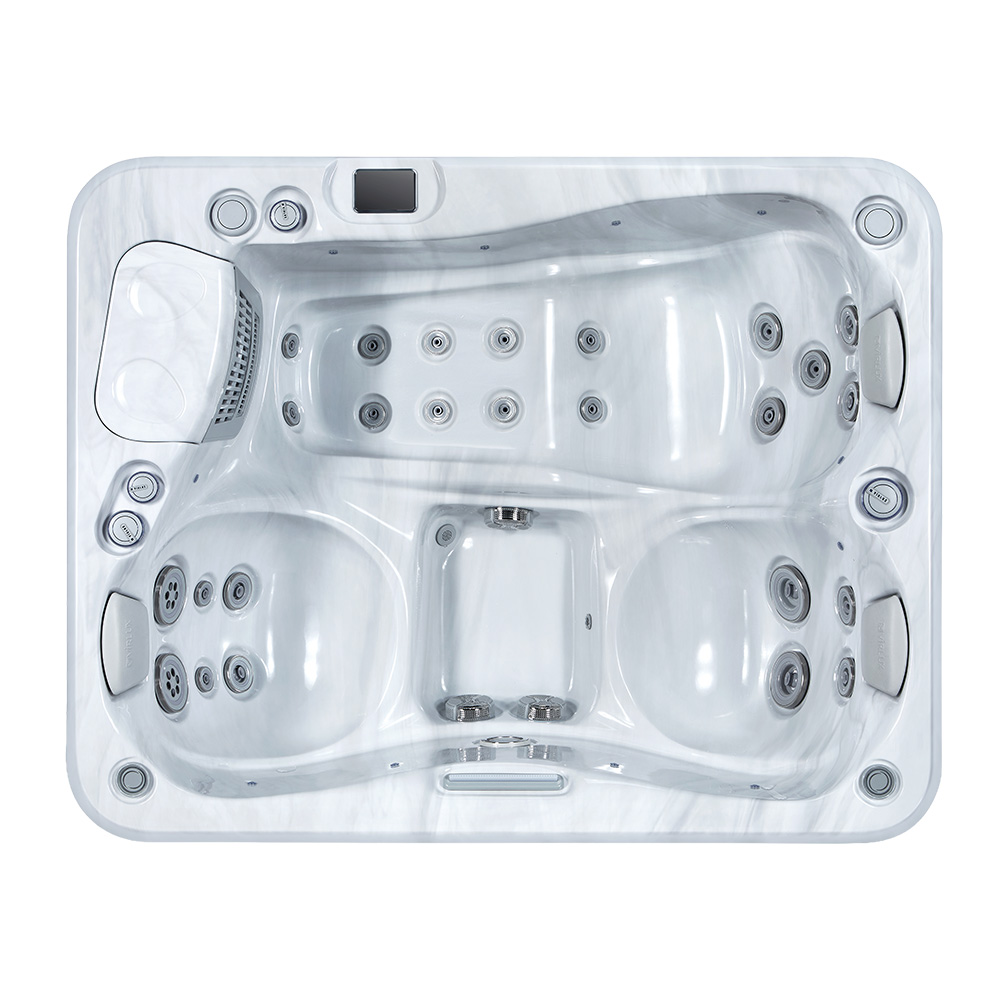

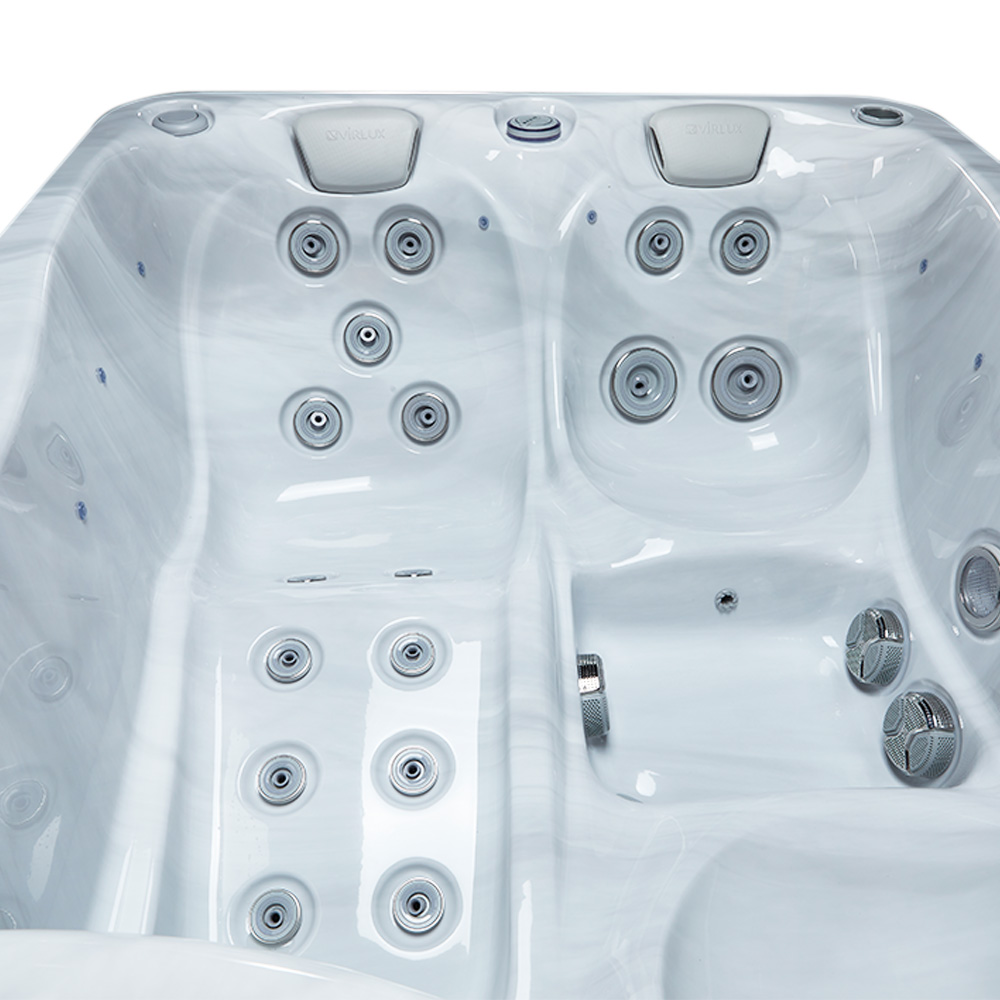

Total Jets (pcs) | 25 |
6' Rotational Jets (pcs) | 2 |
6' Directional Jets (pcs) | 2 |
4' Directional Jets (pcs) | 9 |
2.5' Directional Jets (pcs) | 12 |
Ozone Jets | 1 |
Joyonway Control system | P68B123 |

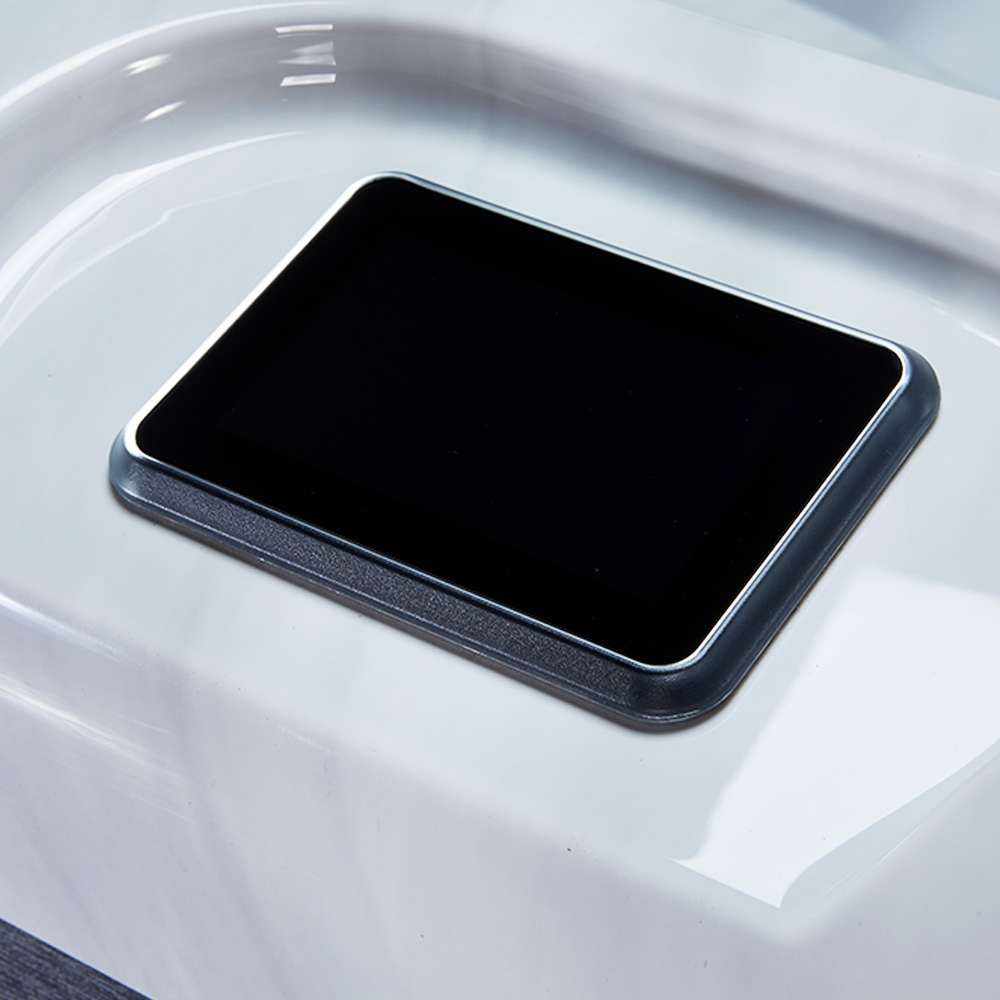

Joyonway Touch panel | PB565 |
Pump 1(CE, TUV Approved) | One-speed / 1*2.0HP |
Circulation Pump (CE, TUV Approved) | 1 x 0.5HP |
Heater(CE, UL Approved) | 1 x 3.0kW |
Lighting(ETL Approved) | 1x12V, Multi-colored LED Underwater Light |
Ozone Water Purification System | Yes |
Electrical Requirements | 220-240V/50Hz, 22A Max. |
Filter Size | 50sq.ft. |
2' Diverter Valve(pc) | 2 |
1' Diverter Valve(pc) | 2 |

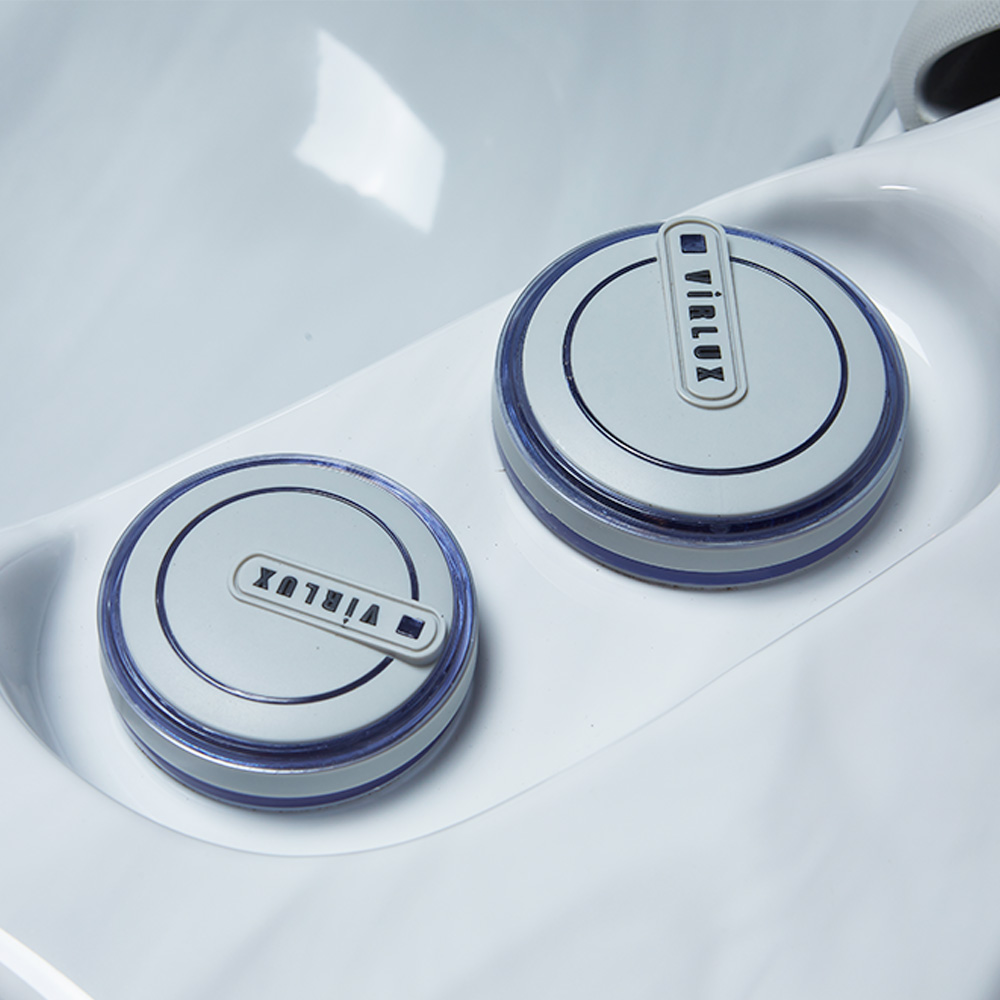

Air Control Valves (pcs) | 4 |
EVA Spa Pillows(pcs) | 3 |
Bottom Drain(pc) | 1 |
Drain Valve(pc) | 1 |
Apartment Balconies (Concrete Construction)
Many European and Australian apartments have concrete balconies rated for 3–5 kN/m². V1015's 1,811kg filled weight spread over 3.465m² equals ~523 kg/m²—within many modern building codes.
Couples with Limited Outdoor Space
No yard? No problem. V1015 turns 7-foot balcony into private wellness retreat. One partner uses lounger while other sits upright; swap after 20 minutes.
Rooftop Decks (Weight-Sensitive)
Lighter than full-size spas by 70kg, V1015 improves safety margin for rooftop installations. Combined with weight distribution pads, feasible for buildings that reject larger spas.
First-Time Spa Owners in Urban Areas
City dwellers often assume spa impossible without suburban yard. V1015 changes that math, offering genuine lounger experience in apartment-friendly size.
Home Gym Adjacent

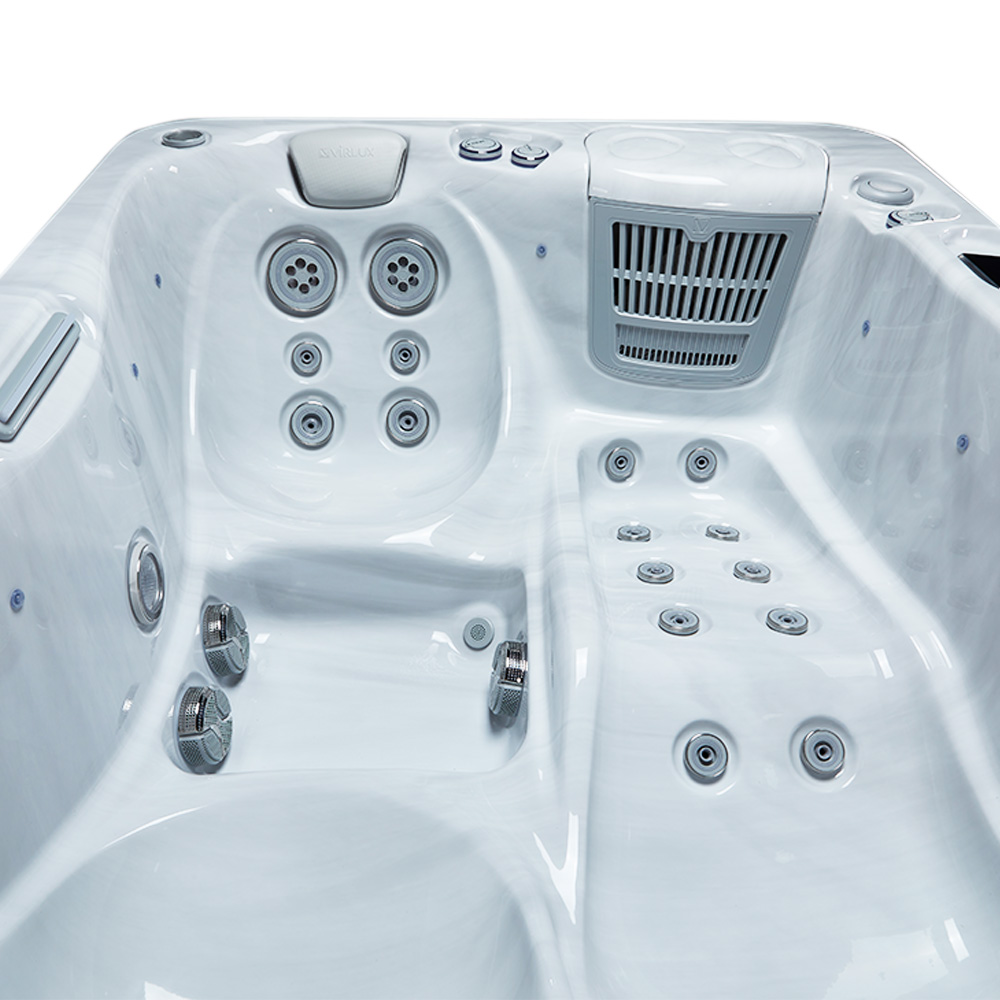

Place V1015 next to home gym setup. After squats or deadlifts, step directly into lounger—12 micro jets along legs address soreness immediately.
Small Vacation Rentals (Studios/Cabins)
Tiny homes and studio cabins can offer luxury amenity that doesn't consume entire outdoor area. Renters searching for "private spa" will pay premium.
Installation Requirements
Electrical: 220-240V / 50Hz, 22A dedicated circuit with GFCI/RCD. Many apartments have 32A circuit for ovens—electrician can tap that.
Foundation: Concrete balcony, reinforced deck, or compacted gravel pad. Never place directly on soil or grass.
Access: 2100×1650mm passes through standard entry doors (800–900mm width) when tilted; measure before delivery.
Getting Started
Position V1015 on level foundation.
Connect electrical through licensed electrician.
Fill via garden hose through filter compartment.
Power on; set temperature to 38°C via PB565 panel.
Add startup chemicals (reduced quantities due to smaller water volume).
Quick Tips
Balcony Load Distribution: Use 20mm-thick plywood sheets under spa to spread weight over more balcony surface area.
Neighbor Courtesy: Run pumps before 10pm on shared balconies; 48–52dB hum can travel through concrete.
Winter Drain Prevention: In freezing climates, never turn off power—circulation pump must run to prevent pipe freezing.
Download Full Installation Manual (PDF) → [Click Here]
Q1: Can two people use lounger at same time?
A: No—lounger contoured for one person. V1015 has one lounger and one upright seat, so both users soak simultaneously but in different positions.
Q2: How do I fill V1015 on balcony without hose connection?
A: Use 20-liter bucket or purchase portable garden pump. Many apartment dwellers fill via 5-gallon jugs carried from bathroom.
Q3: Is V1015 allowed on balconies in my building?
A: Check building's bylaws and consult structural engineer. Many newer buildings (post-2010) rated for spa loads; older buildings may not be.

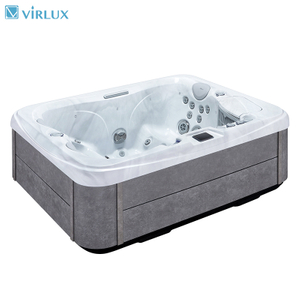

Q4: What's difference between V1015 and V1006?
A: V1015 has 25 jets; V1006 has 37 jets. Both share same 2100×1650mm footprint. V1015 is newer model with updated jet configuration.
Q5: How long does water stay hot without power?
A: Approximately 4–6 hours in mild weather (10°C), 2–3 hours in freezing conditions. Insulation effective, but without heater, temperature drops steadily.
Q6: Can I install V1015 indoors (e.g., in basement)?
A: Not recommended. High humidity damages drywall and promotes mold. If indoors, need industrial-grade ventilation—outdoor installation strongly preferred.
Q7: Does V1015 come with cover lifter?

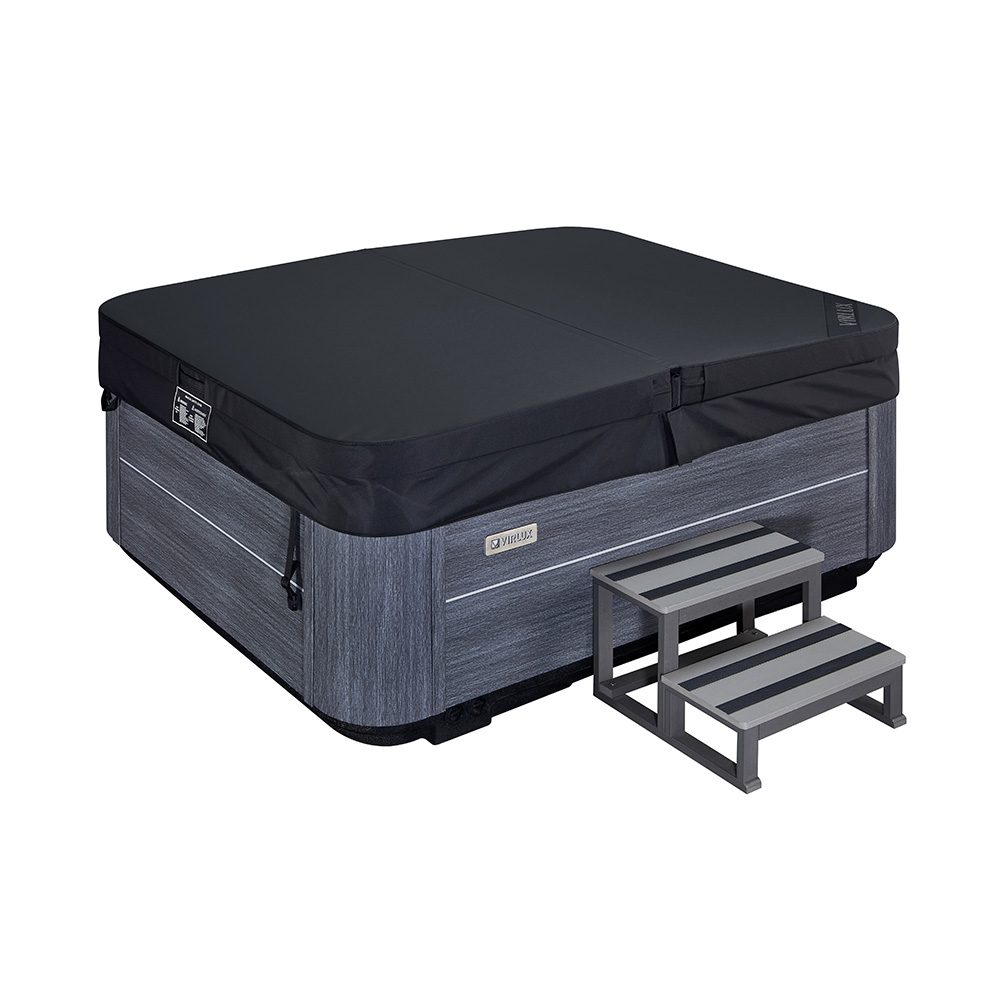

A: No—cover lifters optional due to space constraints on small balconies. Included cover lightweight enough (approx. 8kg) for one person to remove manually.
Q8: What is lead time for delivery?
A: Typically 14–21 days for Europe/North America, 21–30 days for Australia. Contact regional distributor for current inventory levels.
