V8001
| Quantity: | |
|---|---|

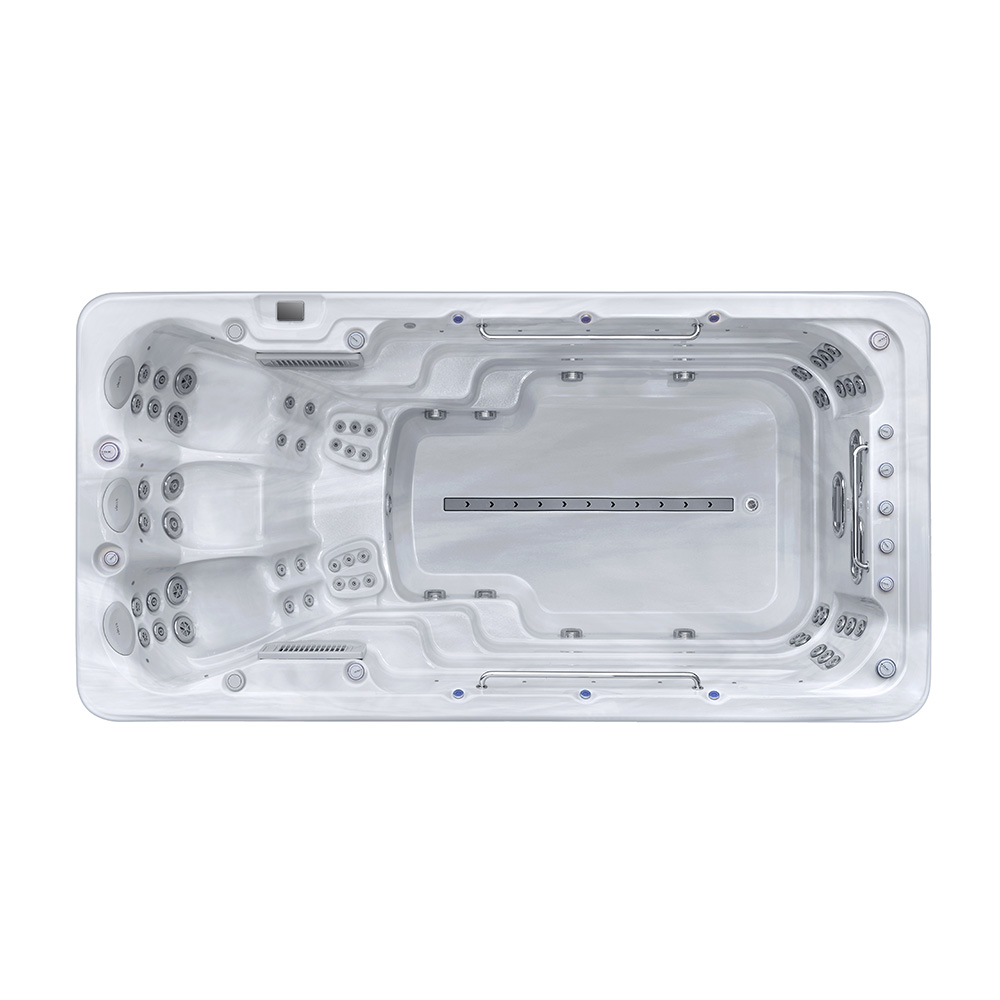

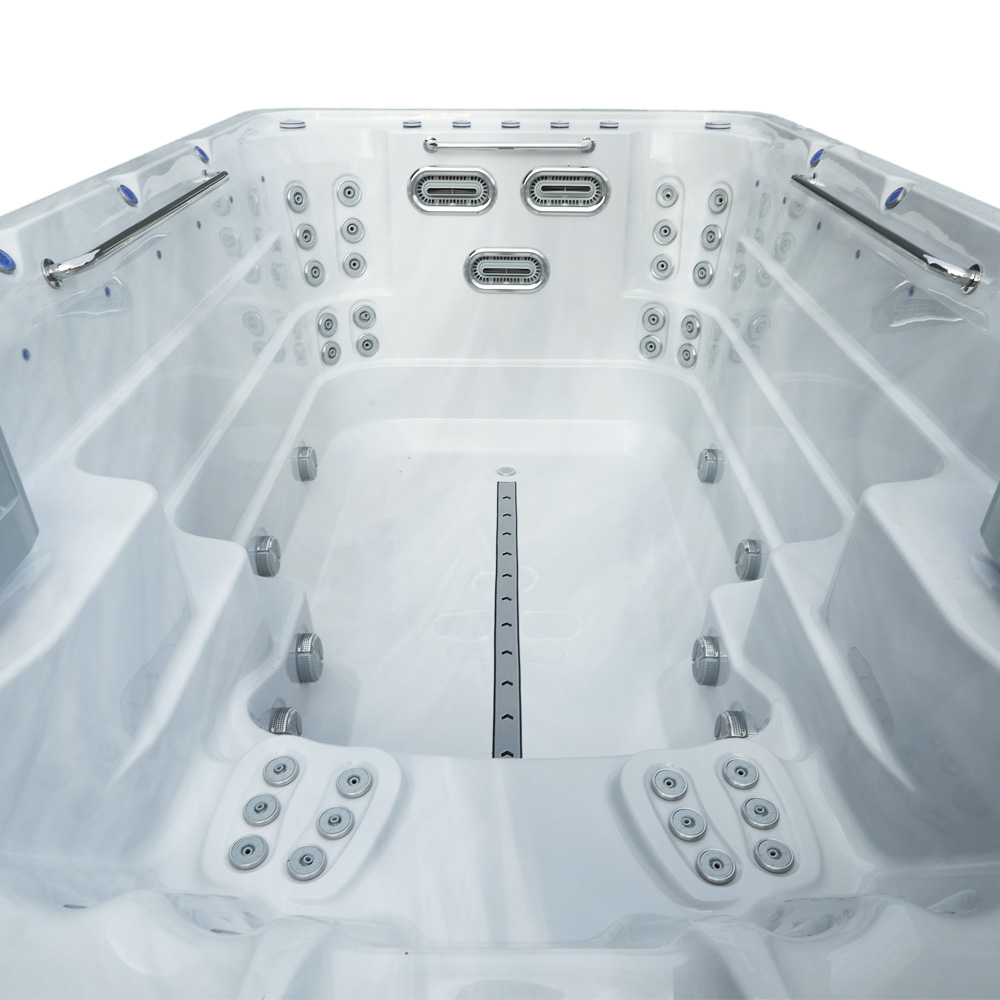

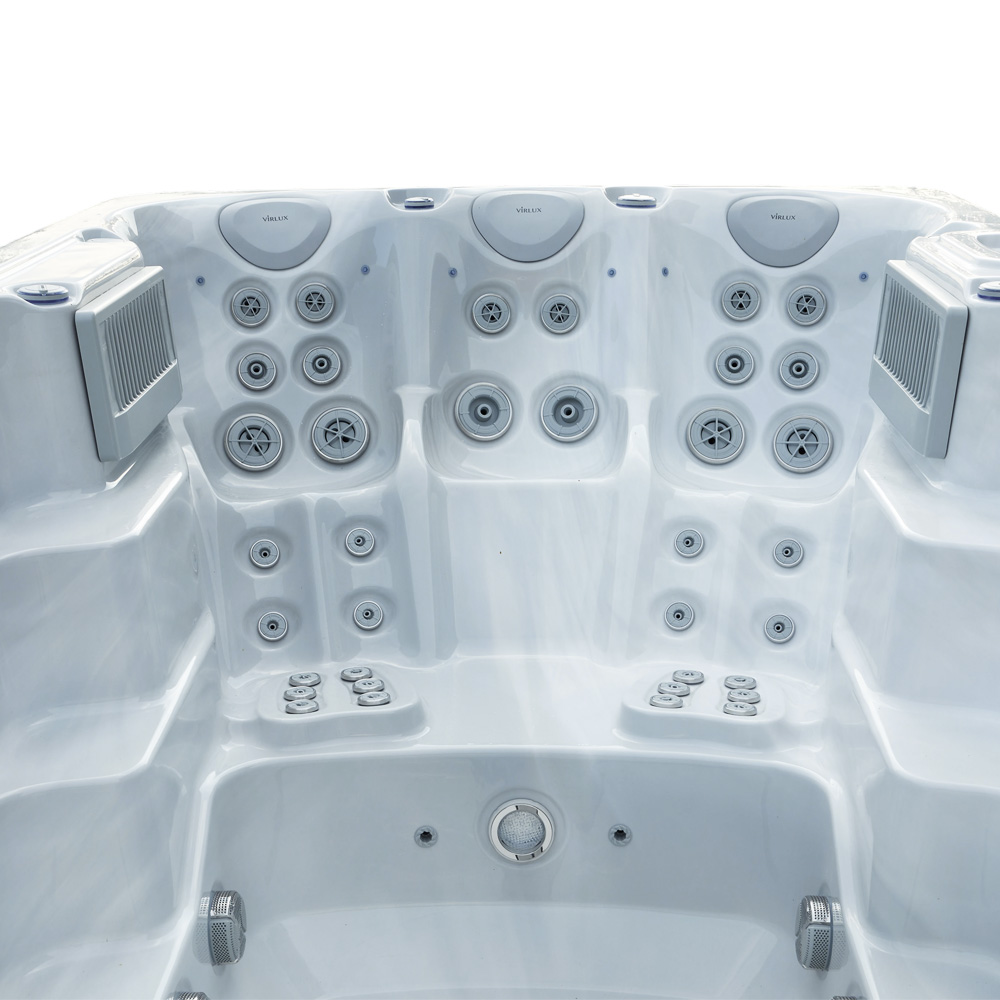

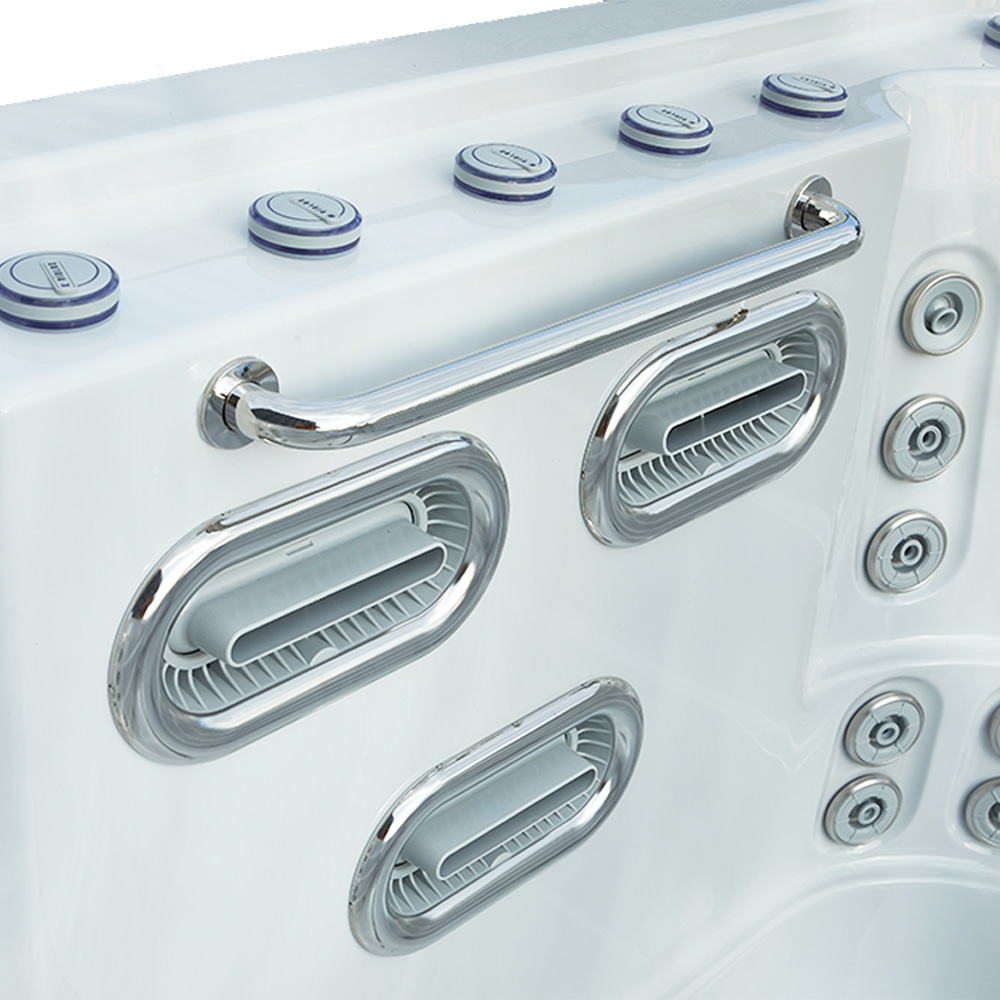

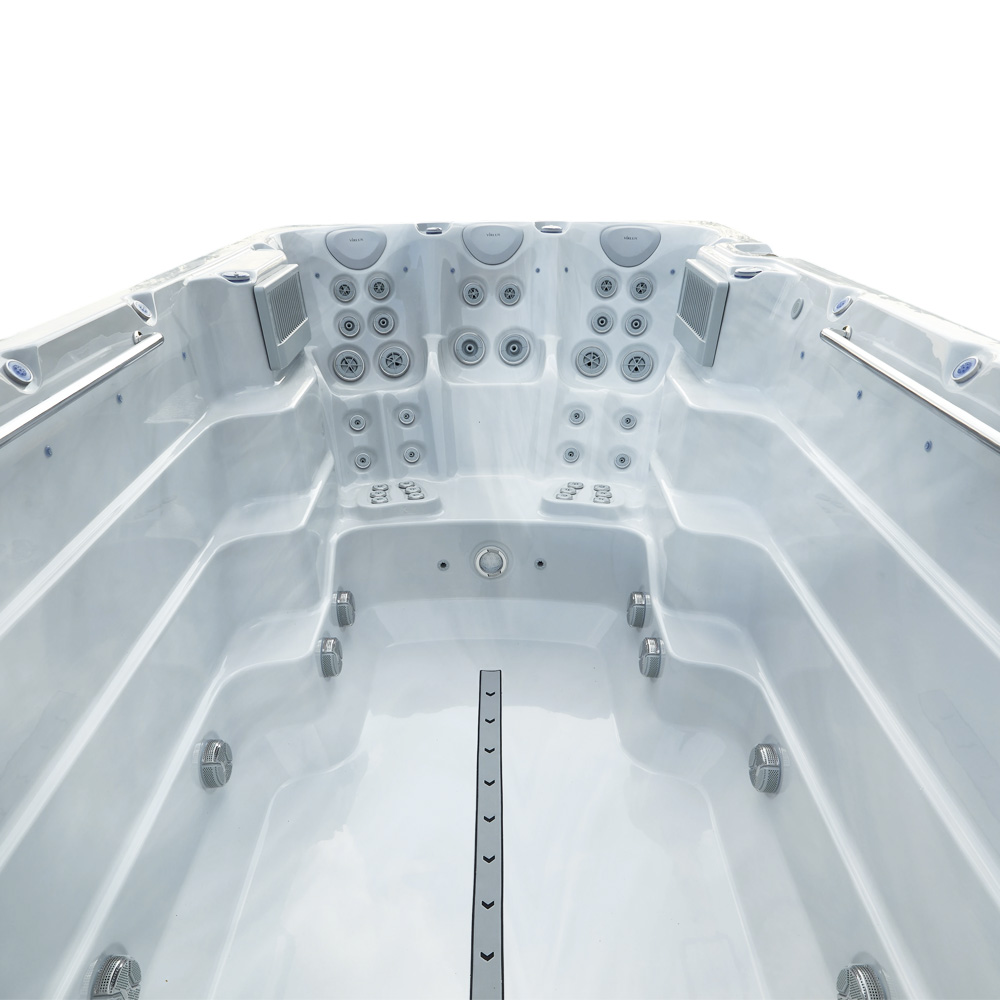

Separate zones share the same water but operate independently. Swim against an adjustable current in the 4500mm-long exercise area, then move to the spa zone for 59 jets targeting tired muscles.
Set the swim zone to 26–28°C for vigorous exercise and the spa zone to 38–40°C for recovery—from one control panel. The 3.0kW heater prioritizes the spa zone when both are active.
Parameter | Specification |
Model | V8001 |
Dimensions (L x W x H) | 4500x2250x1500mm |
Seating Capacity | 3 adults |
Lounge Seat (s) | 0 adults |
Water Capacity | 13800 liters |
Dry Weight | 1200 kg |
Filled Weight | 3500 kg |
Spa Shell Material(USA) | Aristech ® Acrylic |
Spa Cabinet Material | PS Wood-Plastic Composite Panels |
Cabinet Frame | Preserve Woods+ stainless steel |
Bottom (Pedestal Base) | ABS sheet |
Jet Ring Trim | White Grey Plastic |
Total Jets (pcs) | 59 |
15' U Jets (pcs) | 3 |
6' Rotational Jets (pcs) | 4 |
6' Directional Jets (pcs) | 2 |
4' Rotational Jets (pcs) | 6 |
4' Directional Jets (pcs) | 24 |
2.5' Directional Jets (pcs) | 20 |
Ozone Jets | 1 |
Joyonway Control system | P69B133 |
Joyonway Touch panel | PB565 |
Pump 1(CE, TUV Approved) | One-speed / 1*3.0HP |
Pump 2(CE, TUV Approved) | One-speed / 1*3.0HP |
Pump 3(CE, TUV Approved) | One-speed / 1*3.0HP |
Pump 4(CE, TUV Approved) | One-speed / 1*3.0HP |
Circulation Pump (CE, TUV Approved) | 1 x 1HP |
Heater(CE, UL Approved) | 1 x 3.0kW |
Lighting(ETL Approved) | 1x12V, Multi-colored LED Underwater Light |
Ozone Water Purification System | Yes |
Electrical Requirements | 220-240V/50Hz, 22A Max. |
Filter Size | 50sq.ft. |
2' Diverter Valve(pc) | 3 |
1' Diverter Valve(pc) | 2 |
Air Control Valves (pcs) | 6 |
EVA Spa Pillows(pcs) | 3 |
Bottom Drain(pc) | 1 |
Drain Valve(pc) | 1 |
Triathlon Training at Home
Open water isn't always accessible. The V8001 lets triathletes log miles against adjustable resistance, track stroke count, and then recover in the 59-jet spa zone—all without leaving home.
Physical Therapy and Rehabilitation
Therapists use the swim zone for low-impact walking or resistance exercises, then move patients to the warm spa zone for muscle relaxation. Dual temperature supports progressive protocols.
Family Fitness and Play
Teenagers can swim against the current while parents relax in the spa zone. The 4500mm length accommodates two children playing simultaneously; the 3-person spa zone seats the family after activities.
Boutique Hotel Wellness Suites
Properties with limited space for a full pool can install the V8001 as a premium amenity. Guests appreciate the option to exercise privately, and hotels save on pool permits.
Home Gym Extension
Dedicated home gym owners can add aquatic training without a separate building. The V8001 fits in a standard garage (4500mm length requires larger space) or covered patio.
Cold Climate Year-Round Use
Canadian and Nordic homeowners can swim outdoors even in winter. Insulation keeps the swim zone above freezing while the spa zone remains hot for post-swim recovery.
Installation Requirements
Electrical: 220-240V / 50Hz, 22A dedicated circuit with GFCI/RCD. Four pumps plus heater require professional wiring.
Foundation: Reinforced concrete pad, 150mm minimum thickness, supporting 3,500 kg (approx. 7,700 lbs).
Access: 4500×2250mm requires a wide gate (minimum 2300mm clearance) or crane lift for backyard installations.
Getting Started
Position the V8001 on its concrete pad (crane may be needed).
Have a licensed electrician connect the 22A supply.
Fill the swim zone first (lower water inlet), then the spa zone.
Power on; set swim temperature (26–28°C) and spa temperature (38–40°C).
Test the current adjustment dial—start at lowest resistance.
Add startup chemicals (double normal amount due to 13,800-liter volume).
Quick Tips
Current Calibration: Increase resistance gradually over several sessions; the powerful pumps can surprise first-time swimmers.
Filter Maintenance: Clean the 50 sq.ft. filter every 2 weeks (double the frequency of smaller spas due to higher debris load).
Winter Operation: Never drain the unit; keep power on and set swim zone to minimum 5°C to prevent freezing.
Download Full Installation Manual (PDF) → [Click Here]
Q1: Can I swim laps in the V8001 if I'm 190cm tall?
A: Yes—the 4500mm swimming length accommodates full stroke extension for swimmers up to 195cm. Taller individuals may need to bend knees slightly at the turn.
Q2: How noisy is the current generator?
A: Approximately 55–62 decibels—similar to a dishwasher. Cabinet insulation reduces exterior noise; neighbors 10 meters away may hear a low hum.
Q3: Can I use both zones at different temperatures simultaneously?
A: Yes—dual-zone temperature control maintains separate set points. However, gradual mixing occurs over several hours; expect the swim zone to warm slightly during long spa sessions.
Q4: What's the warranty on the V8001?
A: 5 years on shell and structure, 2 years on pumps, heater, and control system. The current generator mechanism is covered under pump warranty.
Q5: Do I need special chemicals for the large water volume?
A: Standard spa chemicals work, but quantities increase. Use a water calculator app to determine correct doses for 13,800 liters. Ozone helps reduce overall consumption.
Q6: Can the V8001 be installed indoors?
A: Yes, but install industrial-grade ventilation (minimum 10 air changes per hour) to manage humidity. Chlorinated water vapor can damage unprotected steel and drywall.
Q7: How often should I change the water?
A: Every 6–12 months, depending on usage. The larger volume dilutes contaminants; with ozone, some owners go 12–18 months between changes.
Q8: Is the current suitable for children or elderly swimmers?
A: Yes—the dial adjusts from very gentle (0.5 m/s flow) to challenging (2.0 m/s). Start at lowest setting for beginners or therapy patients.
