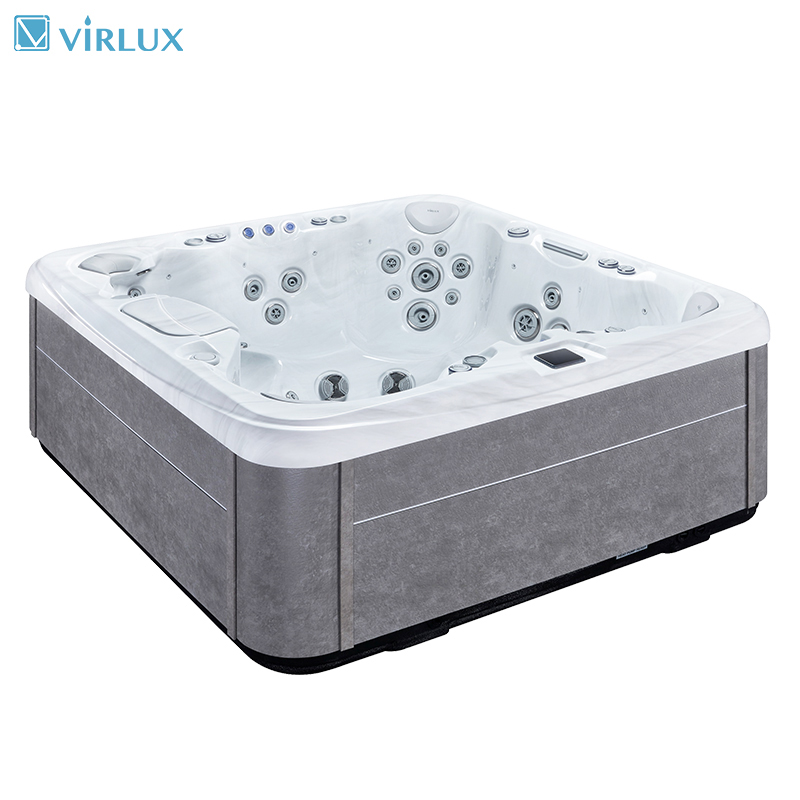

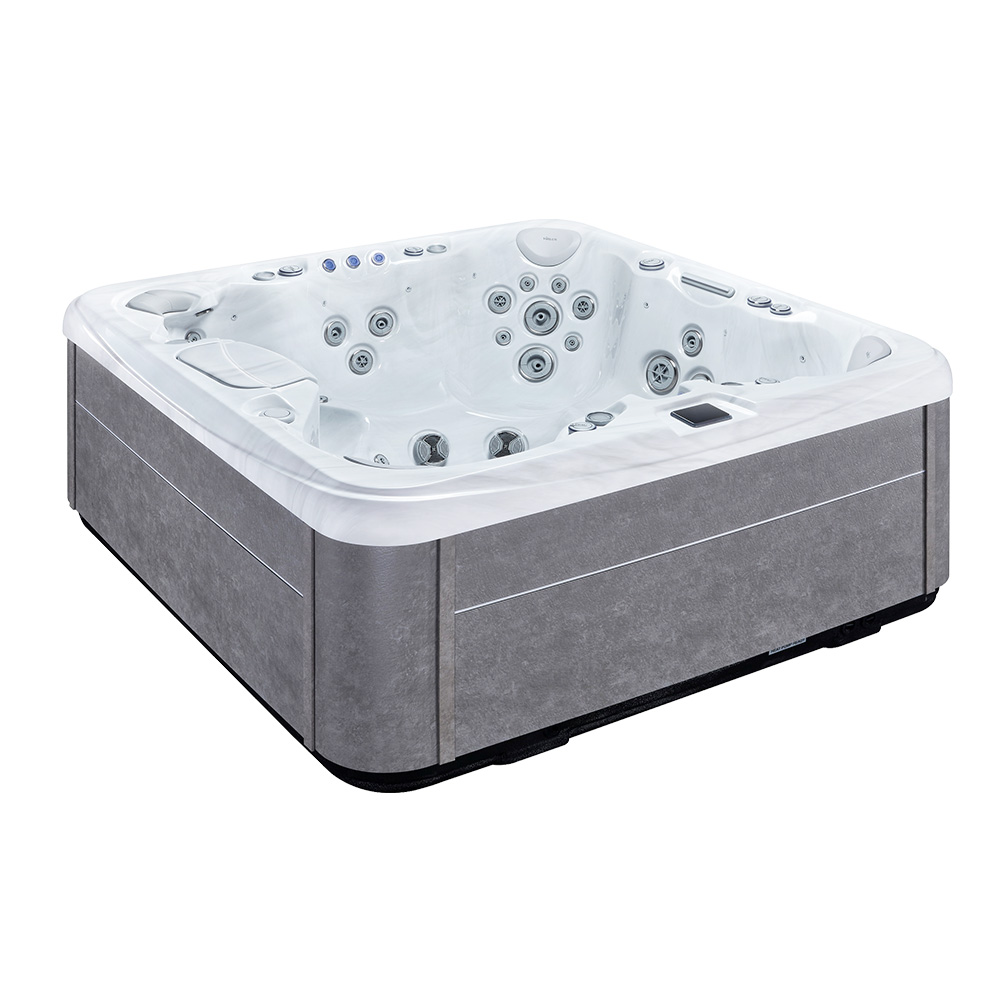

V1001
| Quantity: | |
|---|---|

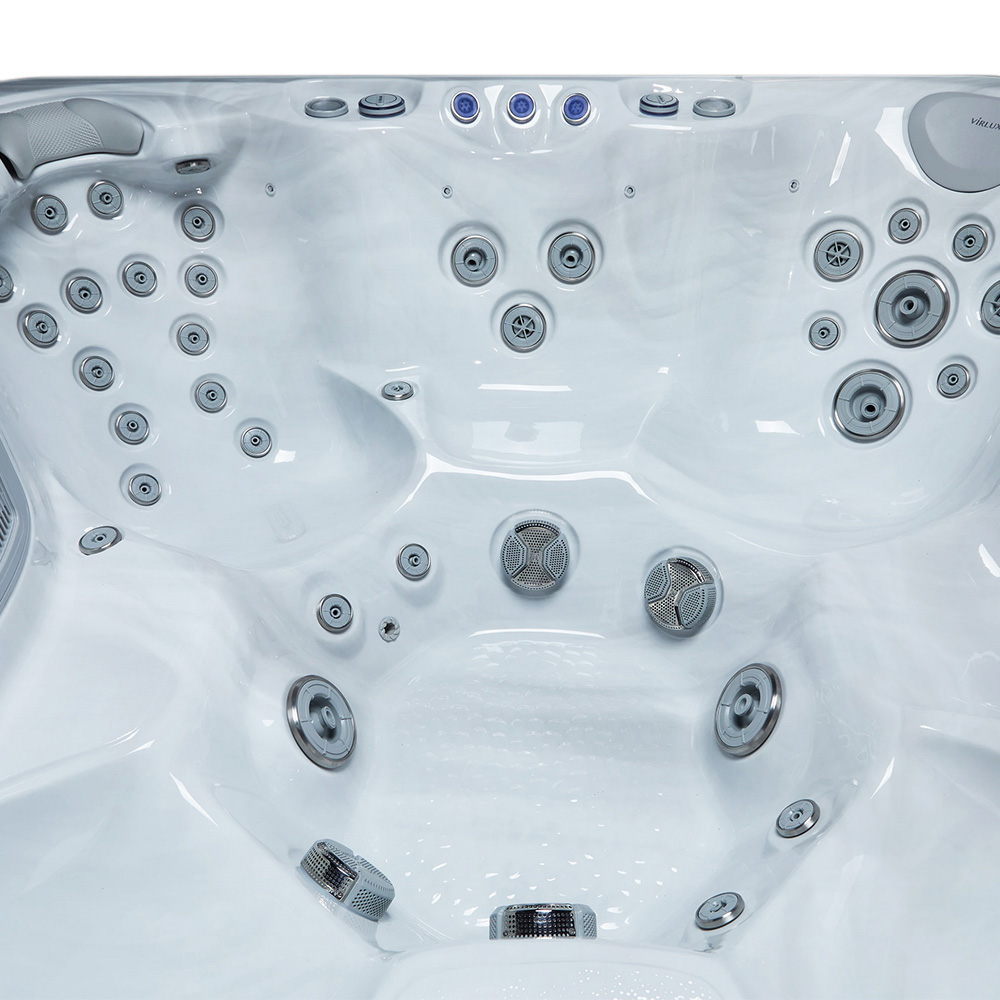

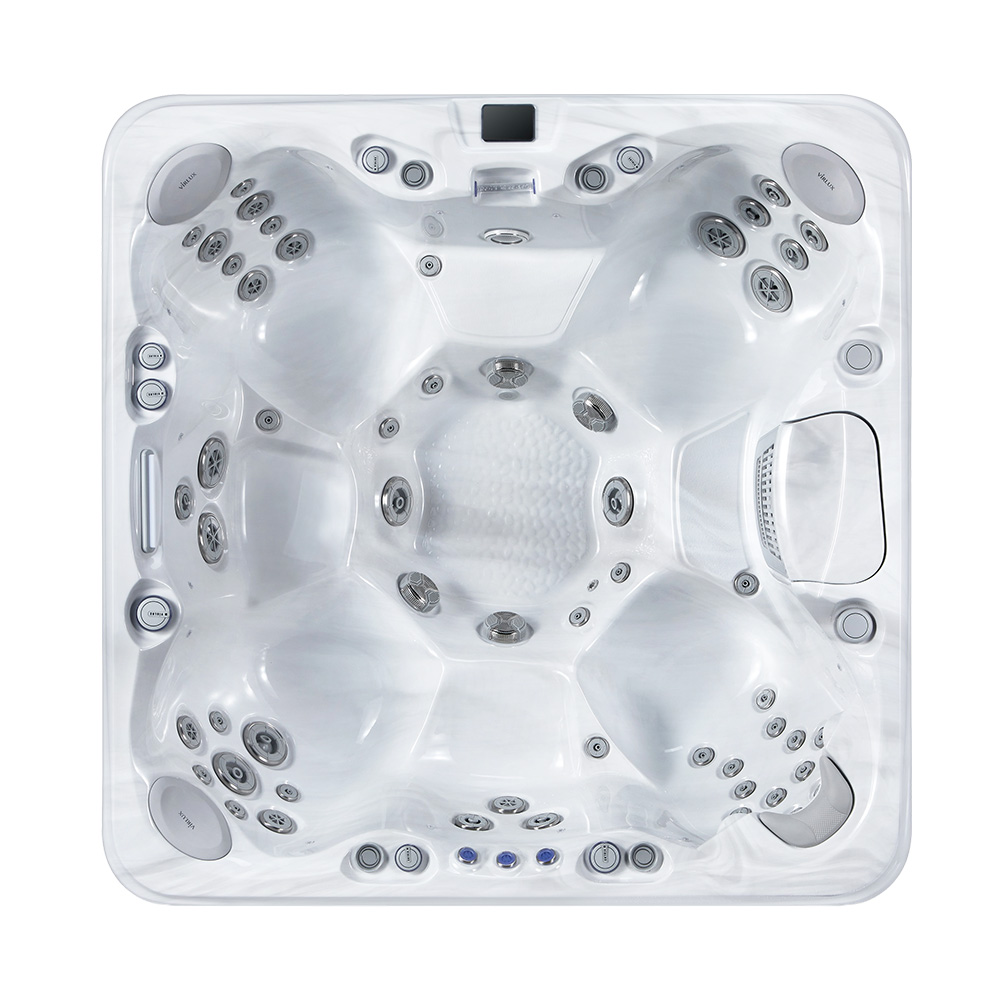

All six positions receive equivalent jet coverage—no passenger seat compromise. The 52-jet configuration distributes rotational, directional, and micro nozzles so every occupant enjoys targeted muscle relief.

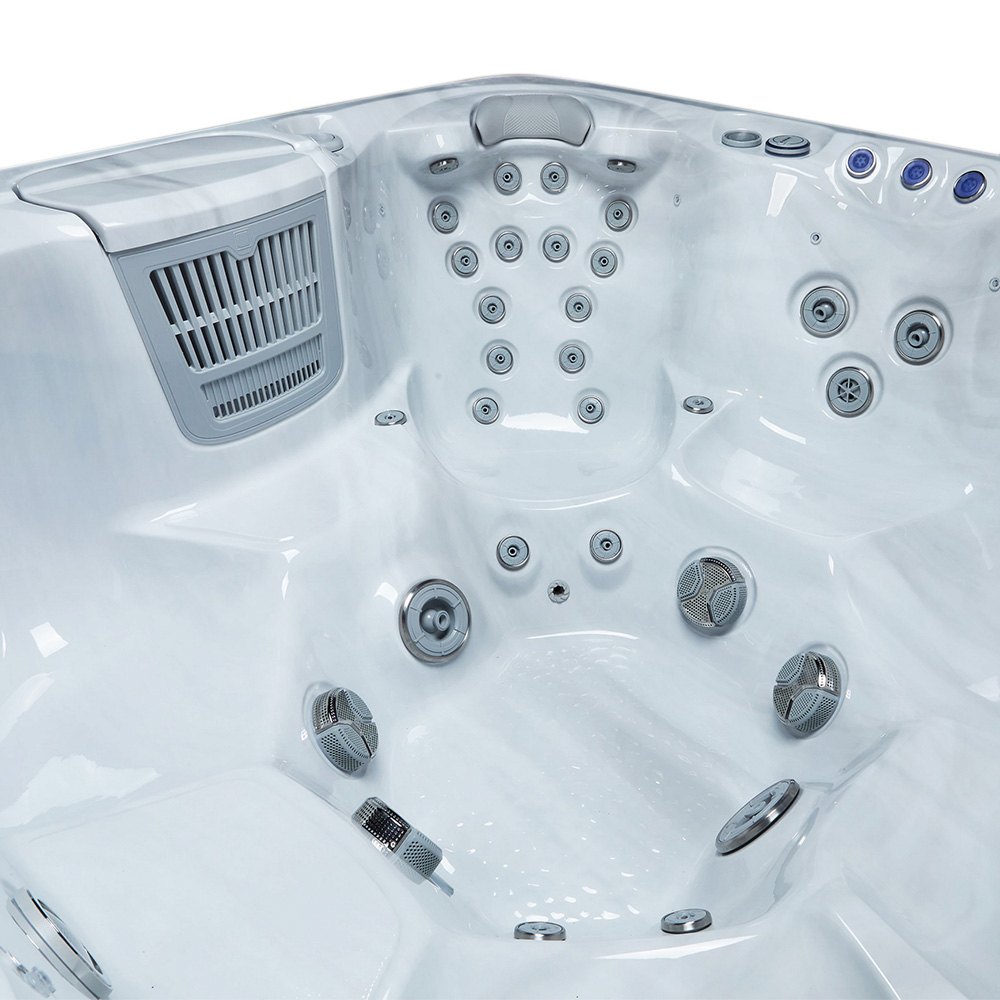

The system includes 4 large rotational jets (6"), 4 large directional jets, 7 medium rotational jets (4"), 7 medium directional jets, and 30 micro directional jets (2.5") plus an ozone jet. This mix delivers everything from deep-tissue pressure to gentle, flowing stimulation.
The corona discharge ozone system breaks down organic contaminants before they become chloramines, reducing chemical demand by up to 70%. A 50 sq.ft. filter handles the remaining particulate.
Parameter | Specification |
Model | V1001 |
Dimensions (L x W x H) | 2260*2260*940mm |
Seating Capacity | 6 adults |
Lounge Seat (s) | 0 |
Water Capacity | 1,391 liters |
Dry Weight | 420 kg |
Filled Weight | 1,811 kg |
Spa Shell Material(USA) | Aristech ® Acrylic |
Spa Cabinet Material | PS Wood-Plastic Composite Panels |
Cabinet Frame | Preserve Woods+ stainless steel |
Bottom (Pedestal Base) | ABS sheet |
Jet Ring Trim | White Grey Plastic |
Total Jets (pcs) | 52 |
6' Rotational Jets (pcs) | 4 |
6' Directional Jets (pcs) | 4 |
4' Rotational Jets (pcs) | 7 |
4'' Directiona Jets(pcs) | 7 |
2.5' Directional Jets (pcs) | 30 |
Ozone Jets | 1 |
Joyonway Control system | P68B123 |
Joyonway Touch panel | PB565 |
Pump 1(CE, TUV Approved) | One-speed / 1*2.0HP |
Pump 2(CE, TUV Approved) | One-speed / 1*2.0HP |
Circulation Pump (CE, TUV Approved) | 1 x 0.5HP |
Heater(CE, UL Approved) | 1 x 3.0kW |
Lighting(ETL Approved) | 1x12V, Multi-colored LED Underwater Light |
Ozone Water Purification System | Yes |
Electrical Requirements | 220-240V/50Hz, 22A Max. |
Filter Size | 50sq.ft. |
2' Diverter Valve(pc) | 1 |
1' Diverter Valve(pc) | 2 |
Air Control Valves (pcs) | 4 |
EVA Spa Pillows(pcs) | 4 |
Bottom Drain(pc) | 1 |
Drain Valve(pc) | 1 |
Residential Family Backyards
Six family members can soak together without feeling crowded. The symmetrical jet layout means no arguments over the "best seat"—every position delivers comparable hydrotherapy.
Boutique Hotels and Guest Houses
Install the V1001 in a dedicated spa garden or poolside. Commercial-grade components withstand daily guest rotation, and the ozone system keeps maintenance tasks manageable for hotel staff.
Post-Workout Home Recovery
After intense training, direct the 4 rotational jets to sore shoulders and lower back. A 15-minute session accelerates circulation and reduces next-day stiffness.
Vacation Rental Upsell (Airbnb/VRBO)
Listings featuring a hot tub command higher nightly rates. The intuitive PB565 panel prevents guest confusion, and the durable Aristech shell resists accidental damage.
Four-Season Outdoor Living
Rated for operation down to -30°C, the V1001 remains functional through Nordic winters. The multi-layer insulation keeps water ready even when the air dips below freezing.
Installation Requirements
Electrical: Dedicated 220-240V / 50Hz, 22A circuit with GFCI/RCD protection. Licensed electrician required.
Foundation: Level reinforced concrete pad capable of supporting 1,811 kg (approx. 4,000 lbs). Minimum 100mm thickness recommended.
Clearance: Allow 600mm access on at least one side for pump and filter maintenance.
Getting Started
Position the empty V1001 on its concrete pad.
Connect electrical supply through a qualified electrician.
Remove the filter cover and fill via garden hose until water covers all jets.

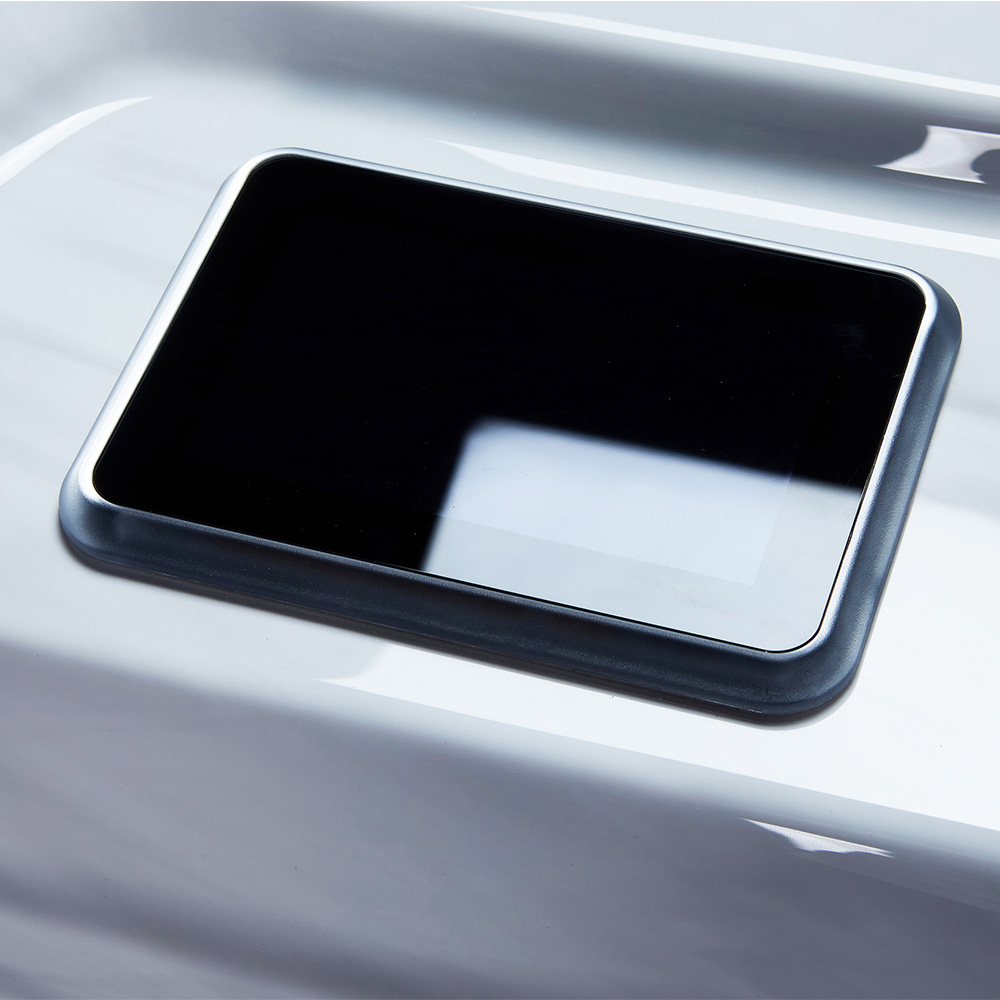

Power on; use the PB565 touch panel to set target temperature (initial heat-up: 12–20 hours).
Add startup chemicals (pH balancer and sanitizer) per the quick-start guide.
Quick Tips
Filter Care: Rinse the 50 sq.ft. filter monthly with a garden hose; replace annually or when flow visibly decreases.
Winter Strategy: Keep the insulated cover closed whenever the spa is idle—heat loss doubles without it.
Water Testing: Use test strips weekly to maintain pH between 7.2–7.8 and sanitizer at 1–3 ppm.
Download Full Installation Manual (PDF) → [Click here]
Q1: Can the V1001 operate in below-freezing temperatures?
A: Yes—the multi-layer insulation system and -30°C rating make it suitable for cold climates. Keep power connected continuously to prevent pipe freezing.
Q2: How often must I add chemicals with the ozone system?
A: Most owners test water weekly and add small sanitizer doses every 5–7 days. Ozone reduces chemical consumption by approximately 70% compared to non-ozone spas.
Q3: What does the warranty cover?
A: VIRLUX provides 5 years on the shell and structural frame, 2 years on pumps, heater, and control system. Spare parts are stocked regionally for quick replacement.
Q4: Is professional electrical installation mandatory?
A: We strongly recommend a licensed electrician for the 22A, 220-240V connection. Incorrect wiring can create safety hazards and may void component warranties.
Q5: Does the V1001 include a lounger seat?

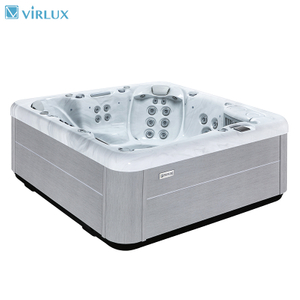

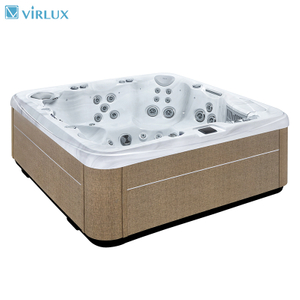

A: No—all six seats are upright ergonomic positions. For a lounger in the same footprint, consider the V1002 (5+1) or V1012 models.
Q6: How long does the water stay hot during a power outage?
A: Thanks to the insulation package, temperature drops approximately 1–2°C per hour in freezing conditions. A 3-4 hour outage is manageable; longer outages may require reheating.
Q7: Can I upgrade to WiFi or Bluetooth later?
A: Yes—both are optional add-ons. Contact our sales team for retrofit modules compatible with the P68B123 control system.
Q8: What certifications does the V1001 hold?
A: CE (Europe), TUV (Germany), ETL/UL (North America), SAA (Australia), and ROHS—covering all target markets.
