V1011 T14
| Quantity: | |
|---|---|

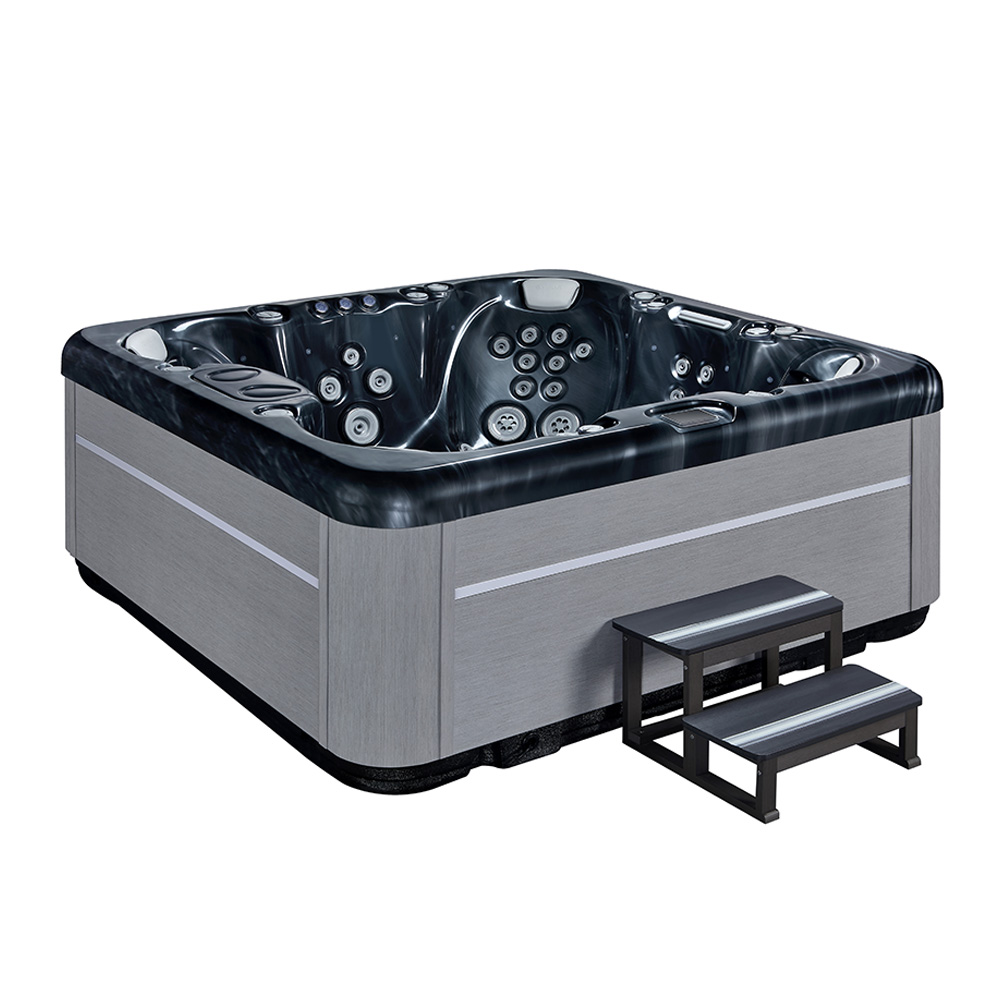

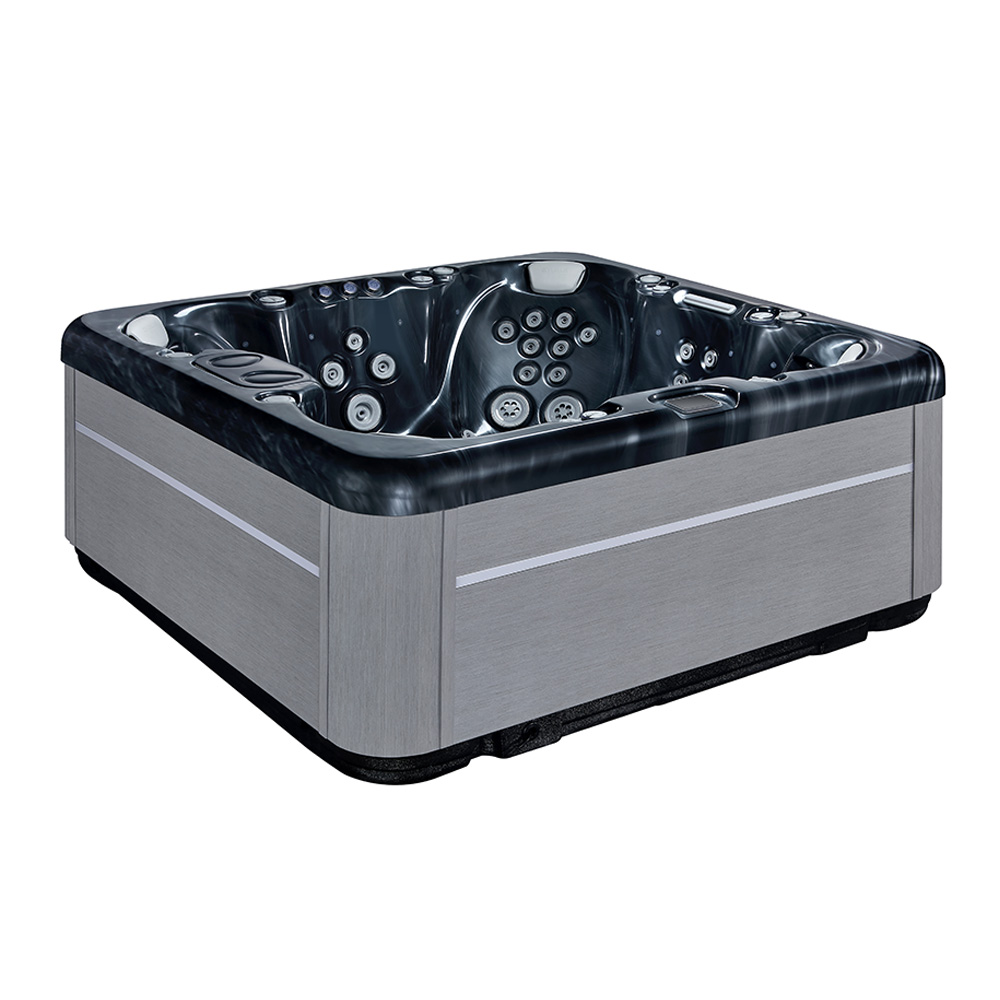

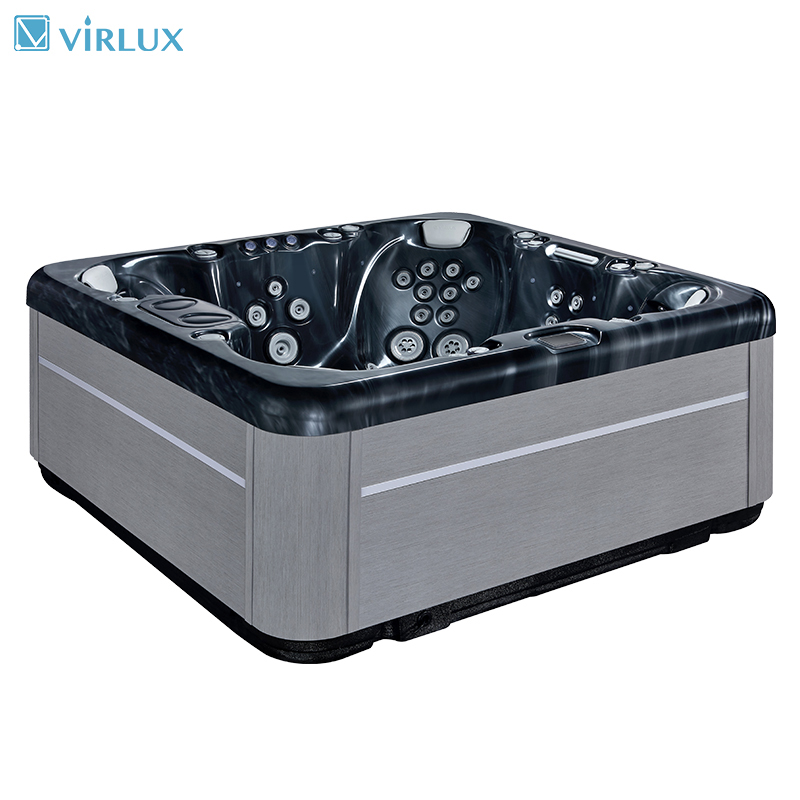

The massive 2.26-meter square chassis represents a quantum leap in internal volume compared to standard tubs. Taller individuals can fully stretch their limbs in any chosen seat without ever experiencing the cramped constraints typical of lesser spas.

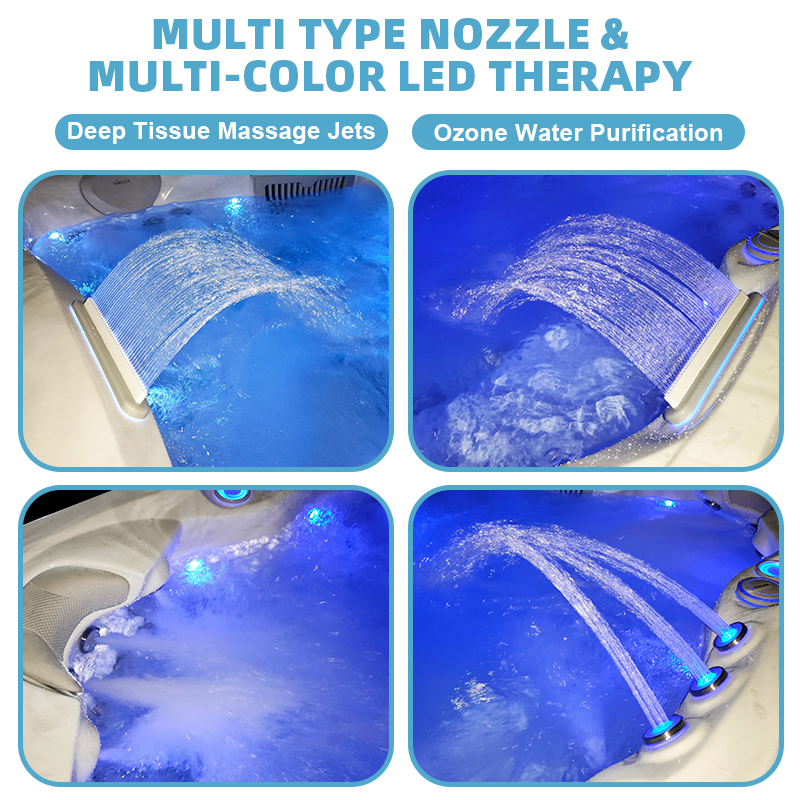

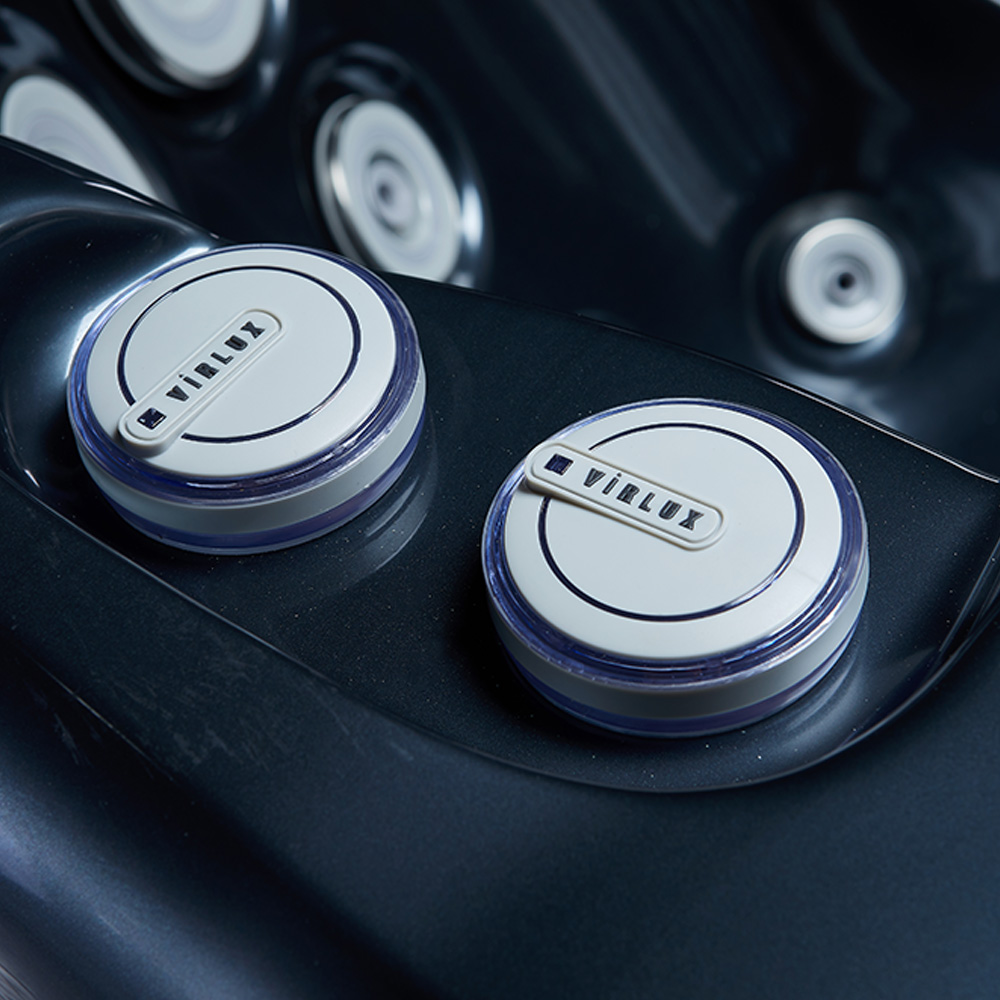

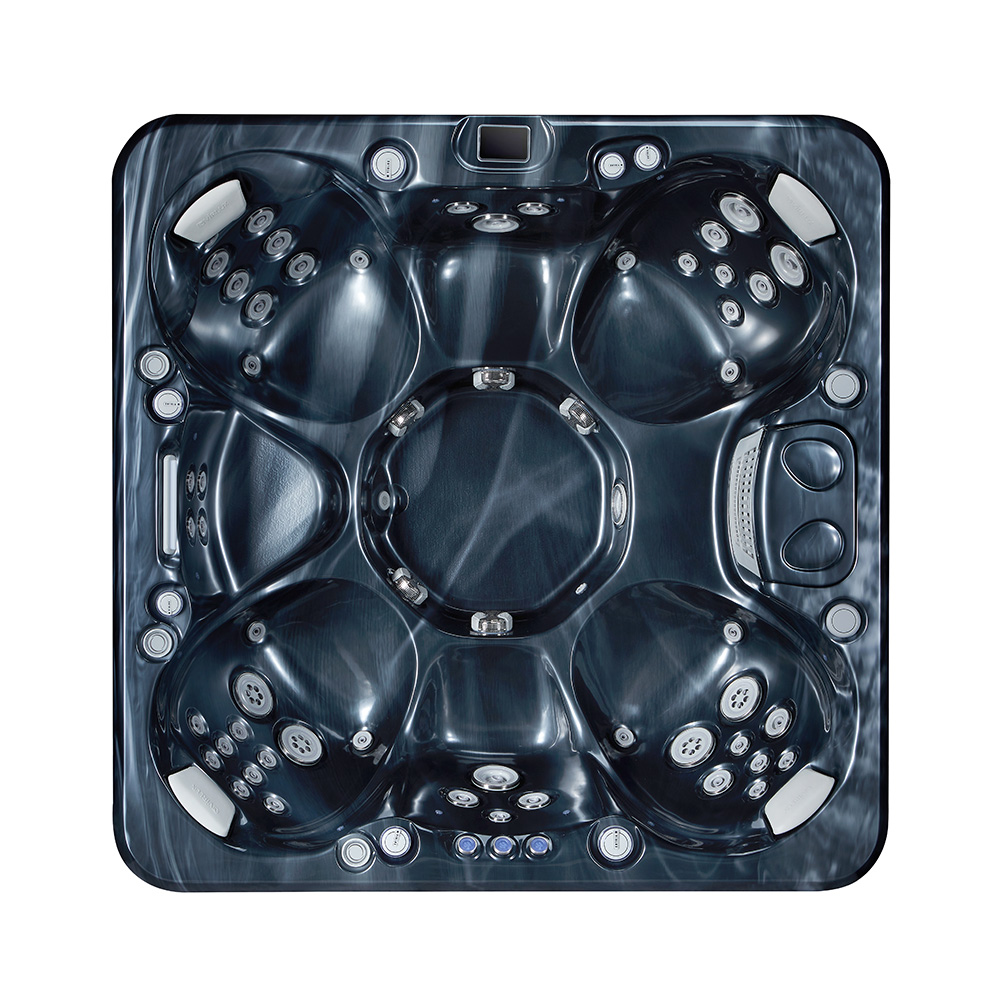

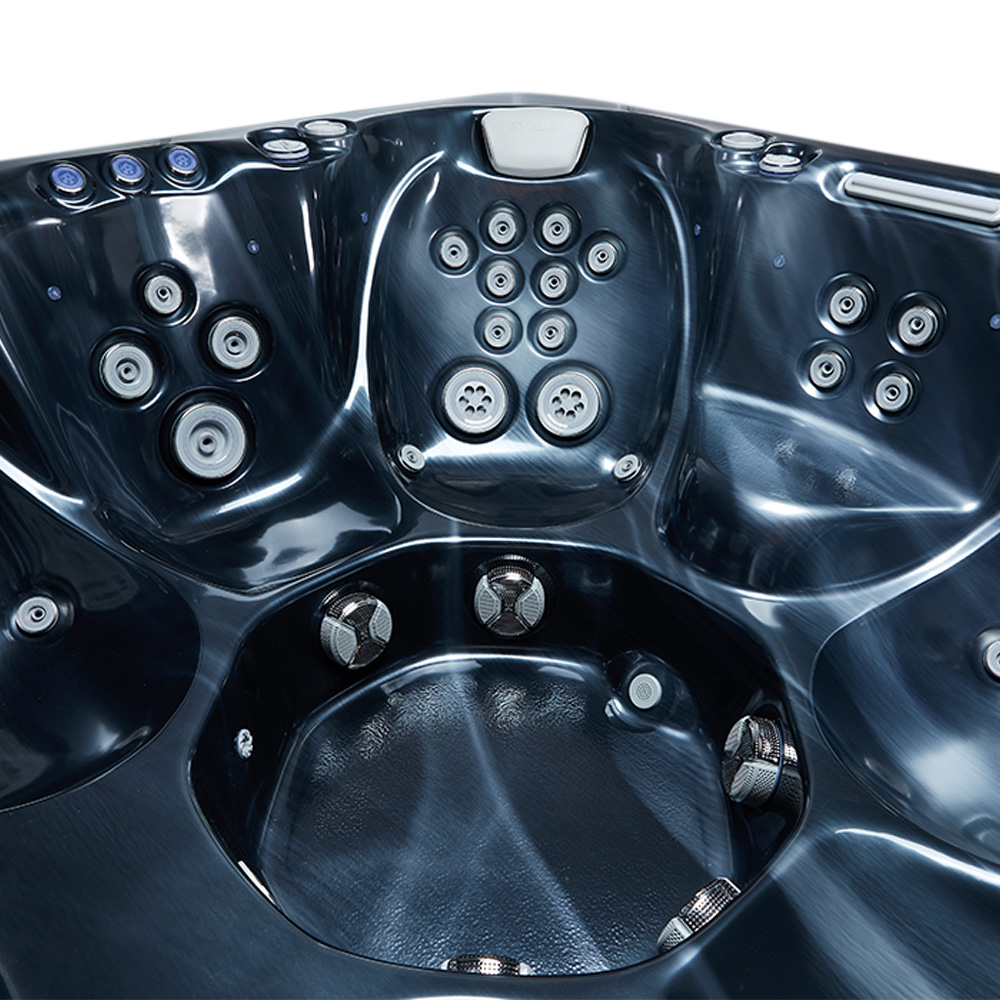

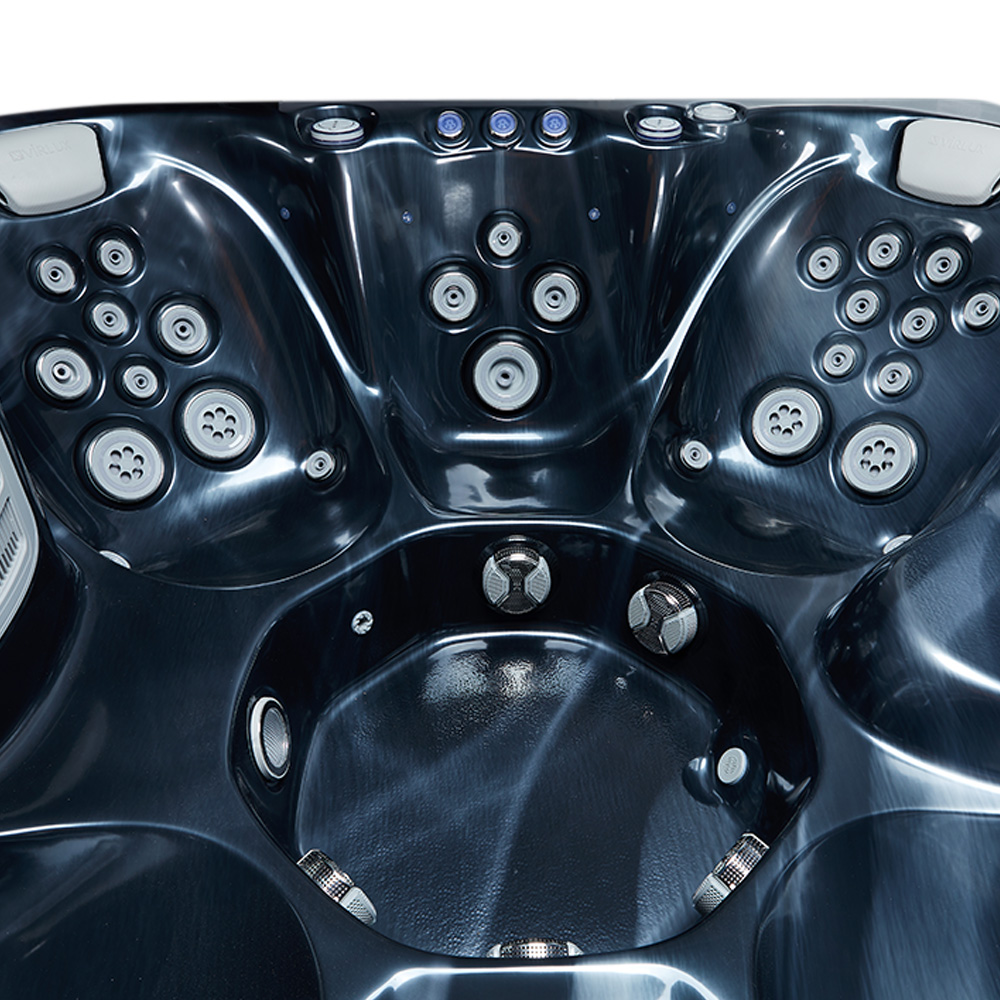

A mathematically mapped network of 54 high-velocity nodes—highlighted by fourteen 4-inch directional blasters—creates a 360-degree hydro-massage envelope. Individual air-mix diverter valves allow every guest to independently sculpt their massage intensity, from a soothing ripple to a deep-meridian targeted assault.

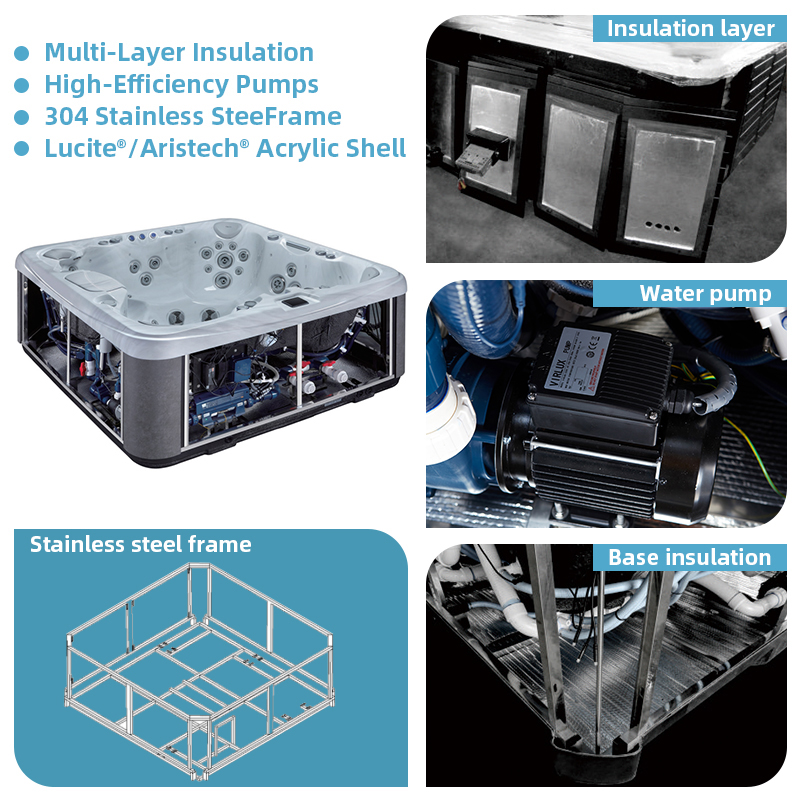

Wrapped in UV-shielded, corrosion-proof PS composite panels and fortified by a hybrid wood-and-steel chassis. The hermetically sealed ABS bottom plate aggressively locks out soil moisture, freezing drafts, and wildlife, extending the unit's lifespan well beyond a decade.
Sourced directly from the world's premier supplier in the USA, the seamless interior shell offers a skin-friendly, velvety texture. Its natural anti-microbial resilience and high surface luster ensure the tub retains its showroom brilliance across years of exposure.
A dedicated 0.5HP independent circulation pump operates in perfect unison with a high-output ozone generator. This system executes non-stop water purification under ghost-like acoustic levels, delivering crystalline, hypoallergenic water that complies with maternal-grade safety.
Specification | Data |
Model No. | V1011 |

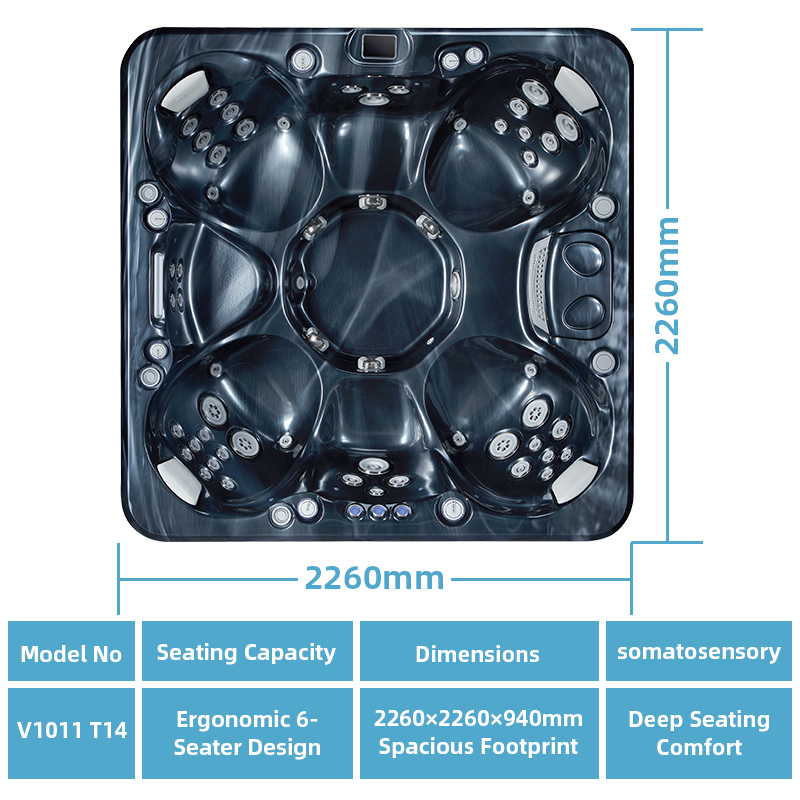

Dimensions (L x W x H) | 2260 2260 940 mm |
Seating Capacity | 6 adults |
Lounge Seat(s) | 0.0 |
Water Capacity | 1,391 liters |
Dry / Filled Weight | 420 kg / 1,811 kg |
Spa Shell Material(USA) | Aristech ® Acrylic |
Spa Cabinet Material | PS Wood-Plastic Composite Panels |
Cabinet Frame | Preserve Woods + stainless steel |
Bottom (Pedestal Base) | ABS sheet |
Total Jets (pcs) | 54.0 |
Control System & Panel | Joyonway P68B123 / PB565 |
Pumps | 2 x 2.0HP (One-speed) + 1 x 0.5HP Circ Pump |
Heater | 1 x 3.0kW |
Lighting | 1x12V, Multi-colored LED Underwater Light |
Electrical Requirements | 220-240V/50Hz, 22A Max. |
Ozone System | Yes (1.0 Ozone Jet) |
Luxury Villa Landscapes
The commanding dimensions and architectural aesthetics seamlessly anchor sprawling aristocratic gardens. It serves as a majestic focal point for outdoor entertaining, broadcasting the owner's impeccable taste and dedication to premium hospitality.
Premium Wellness & Med-Spas
Commercial-grade pump velocity combined with expansive multi-user seating makes this a phenomenal asset for professional wellness centers. The precisely calibrated acupressure jets elevate the perceived value of your facility's therapeutic offerings.
Alpine Ski Chalets
The exceptional 940mm depth allows for complete shoulder-deep immersion. Amidst freezing mountain winds, the relentless 3.0kW heater rapidly elevates core body temperatures, thoroughly thawing out exhausted skiers and snowboarders.
Multi-Generational Households
The cavernous, lounge-free layout is exceptionally safe and accessible for both seniors and children. Grandparents can enjoy a gentle dorsal massage in one corner while the younger generation utilizes the high-impact jets opposite them, beautifully harmonizing diverse needs.
Environmental Preparation:
Given its flagship proportions, ensure all delivery pathways (gates, verandas, tight corners) provide at least a 950mm clearance prior to arrival. The resting surface must be structurally hardened to bear a fully loaded weight of 1,811 kg. Power must be supplied via a strictly dedicated 220-240V/50Hz line wired to a compliant 22A GFCI/RCD breaker by a licensed professional.
First-Time Activation Protocol
Thoroughly wipe down the acrylic interior, remove all packaging from the filter bay, and fill the tub directly through the filter canister to prevent dangerous airlocks in the plumbing.
Halt the water flow only when the level sits roughly 5 centimeters above the highest neck jets.
Engage the main breaker to awaken the PB565 display. Navigate the intuitive menus to lock in your operational schedule and target heat.
Cycle through Pump 1 and Pump 2 to verify that water is surging powerfully and evenly across all zones.
Quick Tips
If departing on an extended vacation, utilize the Joyonway panel to activate "Sleep/Winterize Mode," which safeguards the internal pipes against freezing using a fraction of normal electricity.
To preserve the ultimate luxurious feel, we highly recommend completely draining, purging, and refilling the vessel with fresh water every 3 to 4 months.
Q1: How much of a difference does the 2260mm size actually make compared to standard tubs?
A: It is a monumental upgrade. The expanded footprint translates to nearly 25% more centralized footwell space. When six adults are seated simultaneously, knees and feet will not awkwardly collide, providing a first-class, uncrowded lounging experience.
Q2: Why do you utilize the Joyonway brand for the electronic brains?
A: Joyonway represents the absolute pinnacle of smart spa technology. The P68B123 motherboard provides astonishing resistance to electromagnetic interference, while the PB565 touch panel registers commands flawlessly even under heavy splashing or with soaking wet fingers.
Q3: Does the Wood-Plastic Composite (PS) cabinet require sanding or staining like natural wood?
A: Zero maintenance is required. Our advanced PS composite perfectly mimics the rich texture of hardwood but is 100% impervious to rot, termites, and UV bleaching. A quick wipe with a damp cloth is all it takes to keep it looking showroom-new for years.
Q4: Is it safe to pour normal bath salts or bubble bath into the spa?
A: We strongly advise against this. Standard foaming agents and mineral-heavy salts will rapidly clog the micro-pores of the filter and create a nightmare of foam. Please only use specialized, non-foaming aromatherapy elixirs explicitly formulated for hot tub use.
Q5: What is the specific advantage of blending wood and stainless steel in the frame?
A: Pure timber frames can warp over time, while all-metal frames are highly susceptible to condensation rust in extreme temperature shifts. Our hybrid skeleton perfectly balances the shock-absorbing flex of treated wood with the unyielding structural rigidity of steel.

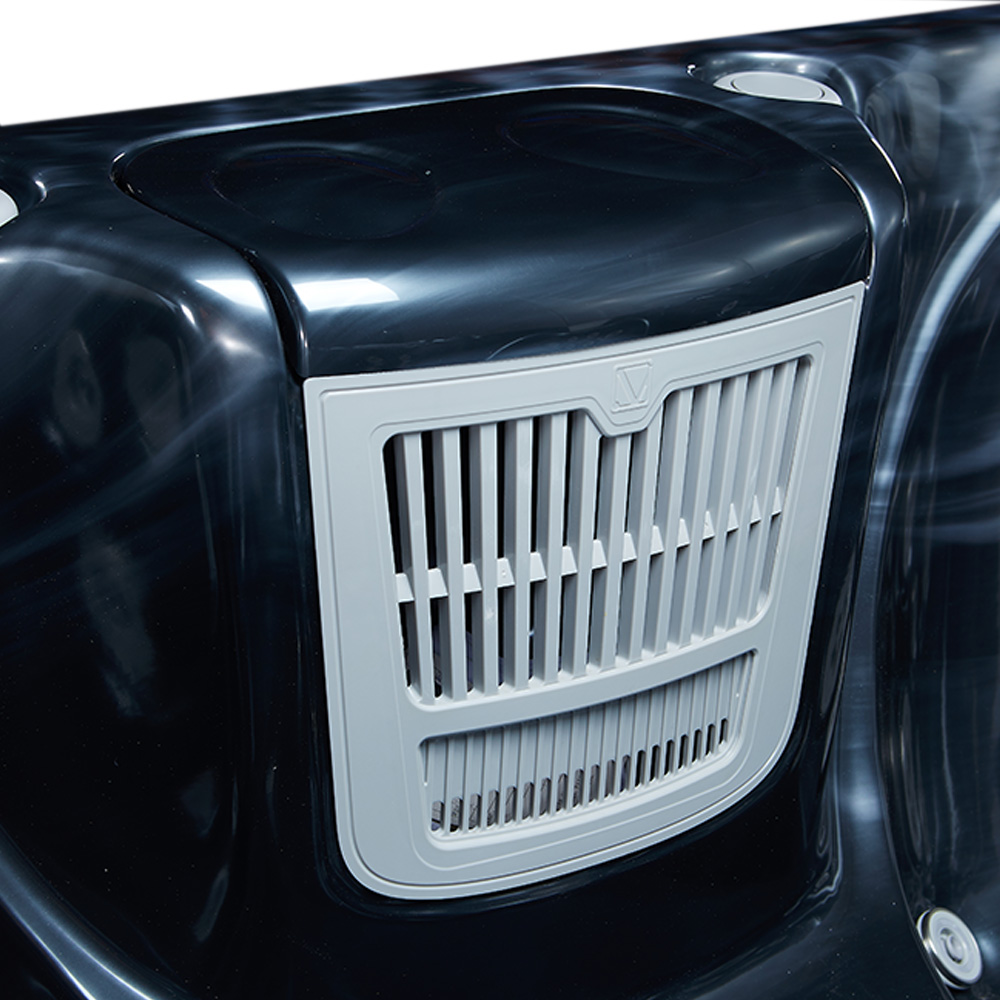

Q6: How difficult is it to access and clean the filtration system?
A: Incredibly easy. The cartridge is housed in a concealed, top-loading aesthetic bay. Simply unscrew it counter-clockwise, remove it, and blast the pleats with a garden hose every couple of weeks. Swap it for a brand new cartridge every 6-12 months for flawless water clarity.
