V1011 T10
| Quantity: | |
|---|---|

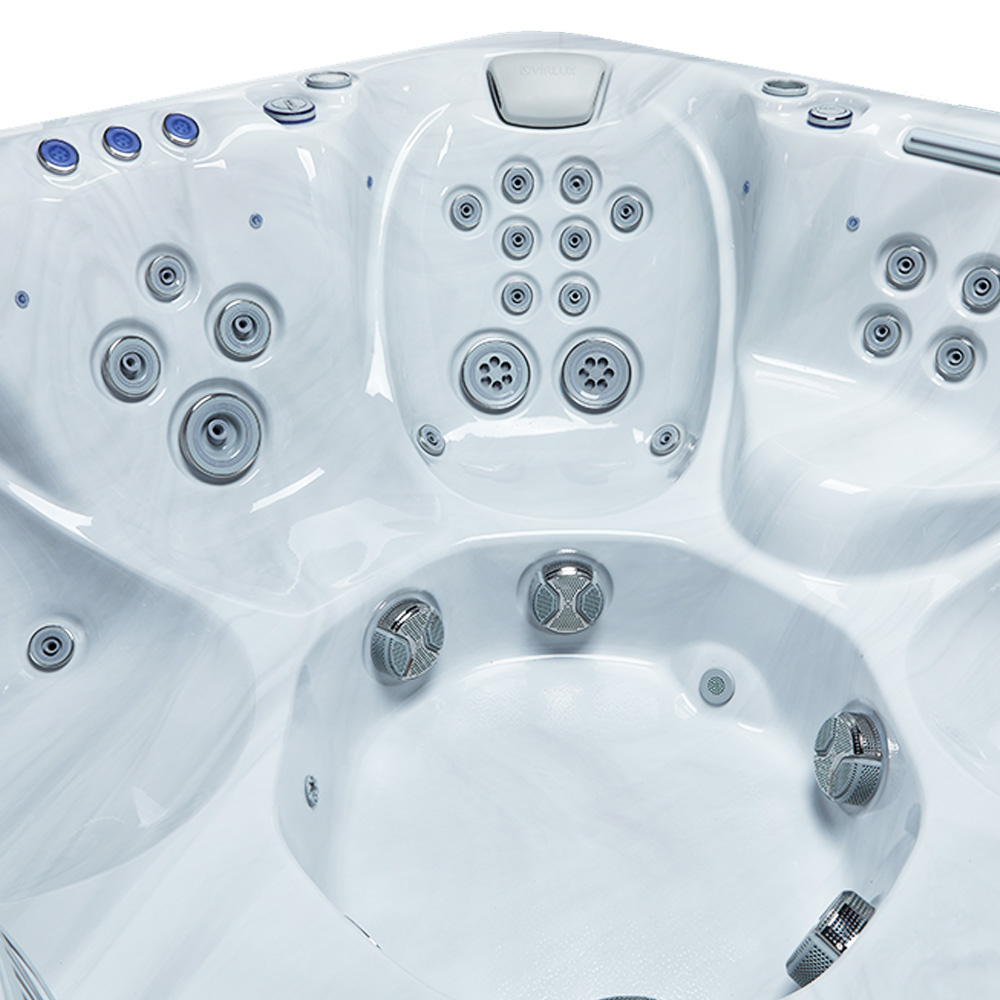

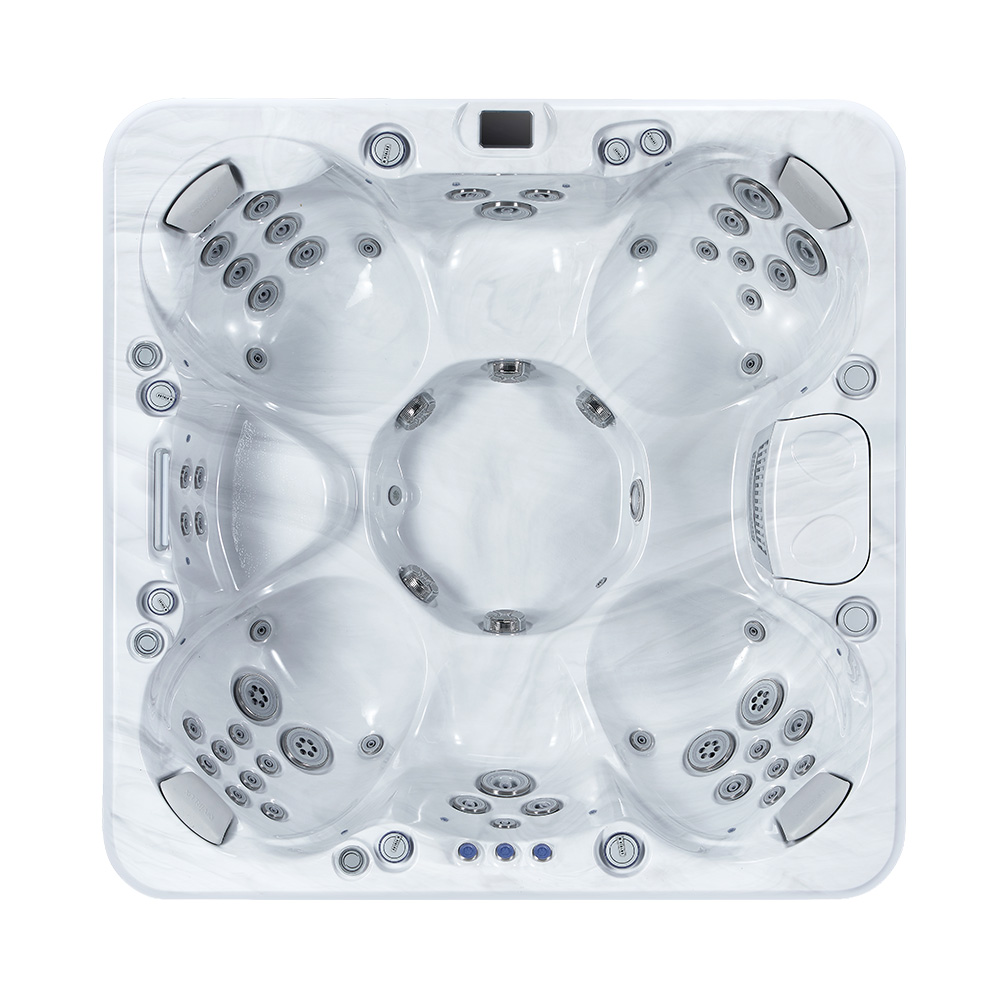

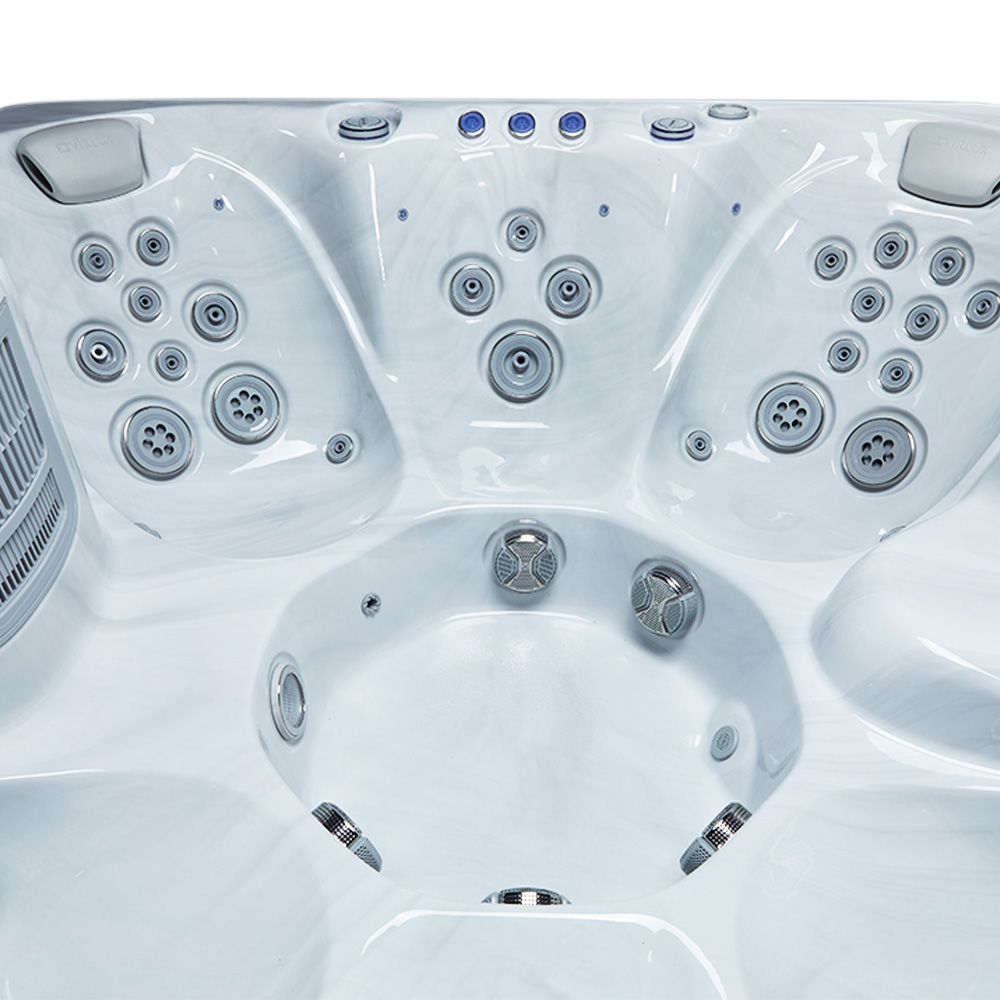

Every seat targets neck, shoulders, and lower back equally. No "guest seat" compromise—any position delivers a therapeutic experience. The 54-jet split is logically arranged across six positions.
One large and two small diverter valves balance flow between seat groups. Unlike complex multi-valve systems, the V1011's setup is intuitive: turn one valve to shift pressure between left and right sides.
Parameter | Specification |
Model | V1011 |
Dimensions (L x W x H) | 2260*2260*940mm |
Seating Capacity | 6 adults |
Lounge Seat (s) | 0 |
Water Capacity | 1,391 liters |
Dry Weight | 420 kg |
Filled Weight | 1,811 kg |
Spa Shell Material(USA) | Aristech ® Acrylic |
Spa Cabinet Material | PS Wood-Plastic Composite Panels |
Cabinet Frame | Preserve Woods+ stainless steel |
Bottom (Pedestal Base) | ABS sheet |
Jet Ring Trim | White Grey Plastic |
Total Jets (pcs) | 54 |
6' Rotational Jets (pcs) | 4 |
6' Directional Jets (pcs) | 4 |
4'' Directiona Jets(pcs) | 14 |
2.5' Directional Jets (pcs) | 32 |
Ozone Jets | 1 |
Joyonway Control system | P68B123 |

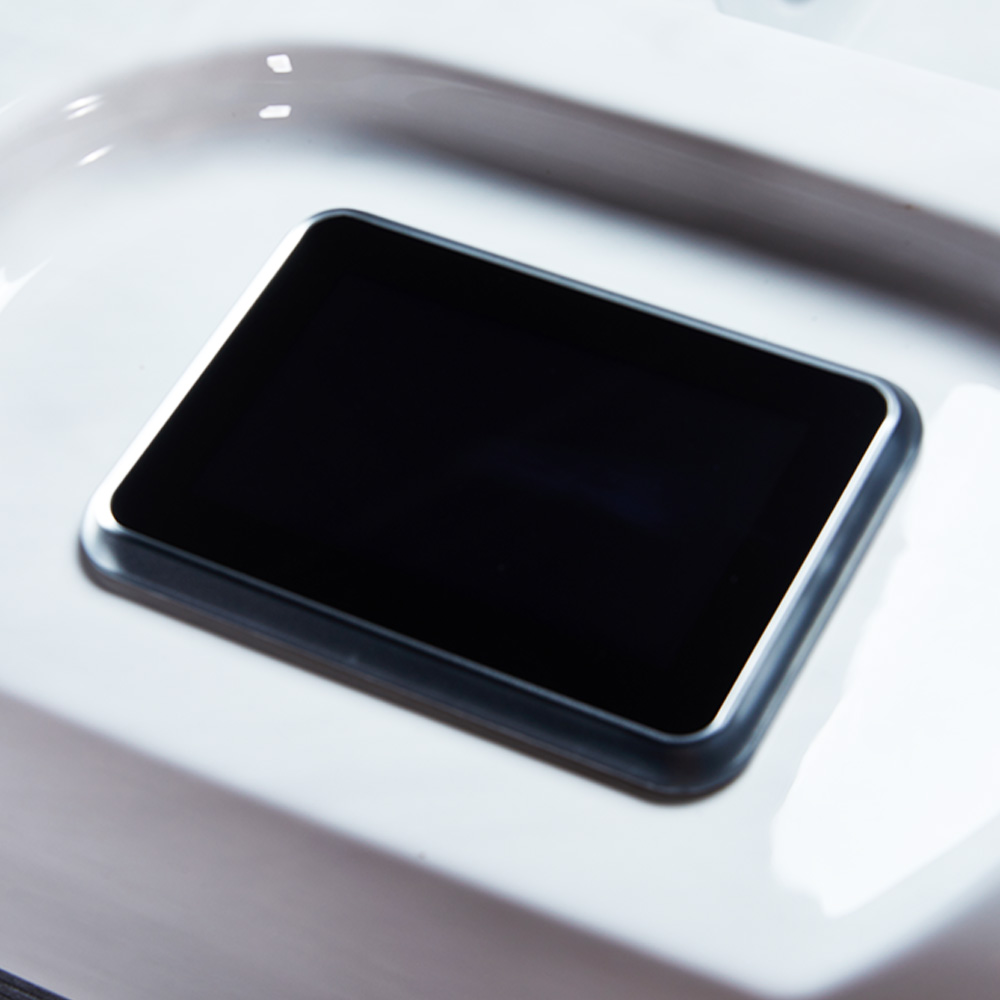

Joyonway Touch panel | PB565 |
Pump 1(CE, TUV Approved) | One-speed / 1*2.0HP |
Pump 2(CE, TUV Approved) | One-speed / 1*2.0HP |
Circulation Pump (CE, TUV Approved) | 1 x 0.5HP |
Heater(CE, UL Approved) | 1 x 3.0kW |
Lighting(ETL Approved) | 1x12V, Multi-colored LED Underwater Light |
Ozone Water Purification System | Yes |
Electrical Requirements | 220-240V/50Hz, 22A Max. |
Filter Size | 50sq.ft. |
2' Diverter Valve(pc) | 1 |
1' Diverter Valve(pc) | 2 |
Air Control Valves (pcs) | 4 |
EVA Spa Pillows(pcs) | 4 |
Bottom Drain(pc) | 1 |
Drain Valve(pc) | 1 |
Large Family Gatherings
Six family members each get a "primary" seat. No arguing over the best position—symmetrical design means every spot has rotational, directional, and micro jets.
Neighborhood Social Events
Host block parties or casual get-togethers. The V1011's straightforward controls let guests adjust their own massage intensity without instruction.
Boutique Hotel Group Bookings
Traveling groups (wedding parties, corporate retreats) can all soak together. The V1011 fits in hotel spa gardens where multiple single-spa units would require more space.
Community Wellness Centers
Yoga studios or community pools can offer the V1011 as a bookable amenity. Durable Aristech shell withstands heavy rotation; ozone system reduces chemical handling.
Family with Older Children
Teenagers and young adults appreciate upright seats (loungers feel "too adult"). The 54 jets provide enough stimulation without feeling clinical.
Four-Season Backyard Use
From Canadian winters to Australian summers, insulation and UV-resistant shell maintain year-round functionality.
Installation Requirements
Electrical: 220-240V / 50Hz, 22A dedicated circuit with GFCI/RCD.
Foundation: Reinforced concrete pad, 100mm minimum thickness, supporting 1,811 kg.
Access: 2260×2260mm fits through standard 36" gates; measure before delivery.
Getting Started
● Position the spa on a level, stable foundation.
● Connect electrical supply through a licensed electrician.
● Fill with water using a garden hose through the filter compartment.
● Power on and set desired temperature via the touch panel.
● Add water treatment chemicals as recommended.
Quick Tips
Jet Adjustment: Use three diverter valves to shift pressure—close one valve partially to increase flow to opposite seats.
Pillow Care: Remove EVA pillows when shocking the water; high chlorine levels can degrade material over time.
Winter Operation: Keep cover closed when not in use; insulation works best with cover sealed.
Download Full Installation Manual (PDF) → [Click Here]
Q1: How does V1011 differ from V1001?
A: Both are 6-person, 2260×2260mm models. V1011 has 54 jets (vs 52), includes 4 EVA pillows, and uses a different diverter valve configuration (1×2" + 2×1"). Jet distribution is more balanced across all six seats.
Q2: Is there a lounger option for V1011?
A: No—V1011 is all upright seats. For a lounger in same footprint, see V1002 (5+1) or V1012.
Q3: Can children use all six seats safely?
A: Yes, but supervise children under 12. Seat depth (approximately 800mm) means smaller children may need a booster seat or pool noodle.
Q4: What is warranty on EVA pillows?
A: 1 year against defects. EVA is naturally UV-resistant but will eventually harden after 2-3 years of direct sun exposure; replacements available.
Q5: How noisy are air control valves?
A: Four air valves produce a soft hiss when open (similar to water fountain). Closing valves silences sound entirely.
Q6: Can I upgrade V1011 to WiFi control?
A: Yes—retrofit WiFi module available. Install into P68B123 controller; PB565 touch panel will then show remote connectivity options.

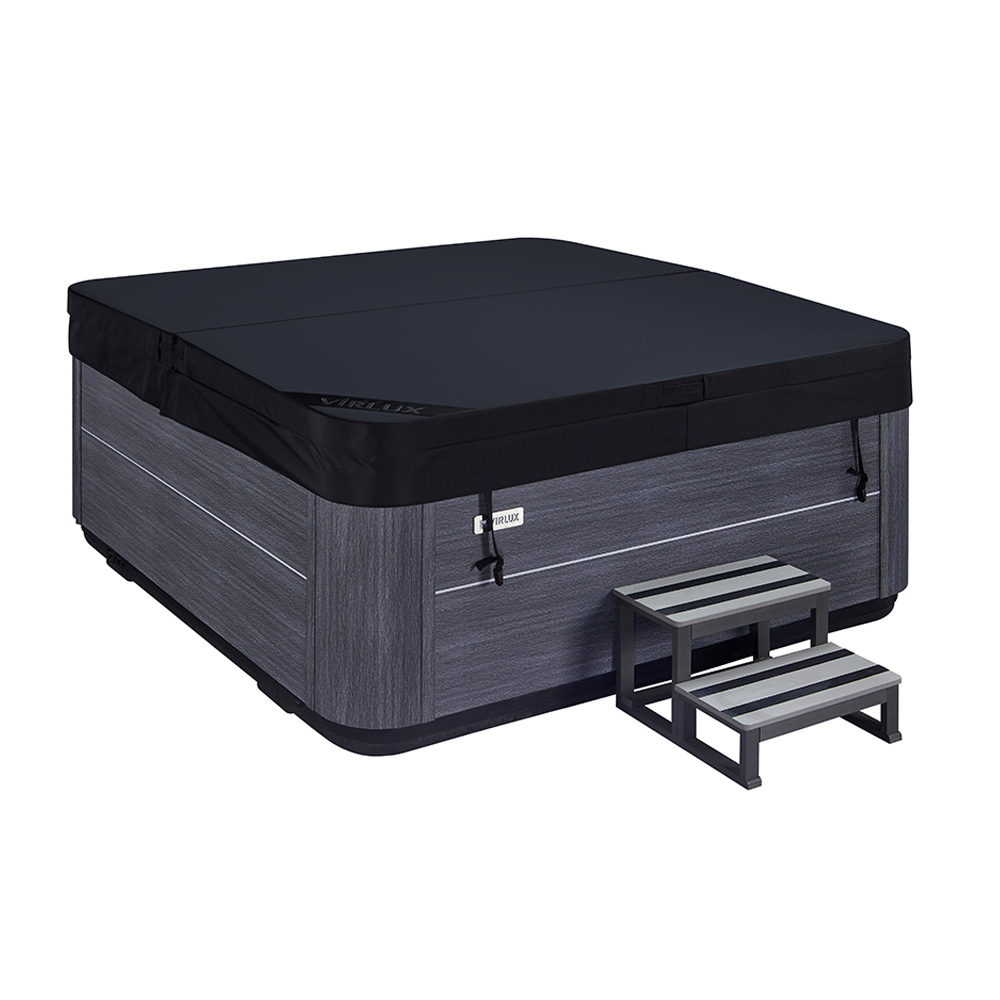

Q7: Does V1011 include a cover?
A: Yes, an insulated 75mm cover with locking straps is included. Cover lifter optional.
Q8: How often replace filter?
A: Every 12–18 months, depending on usage. Clean monthly by rinsing with garden hose; deep-clean with filter cleaner every 3 months.
