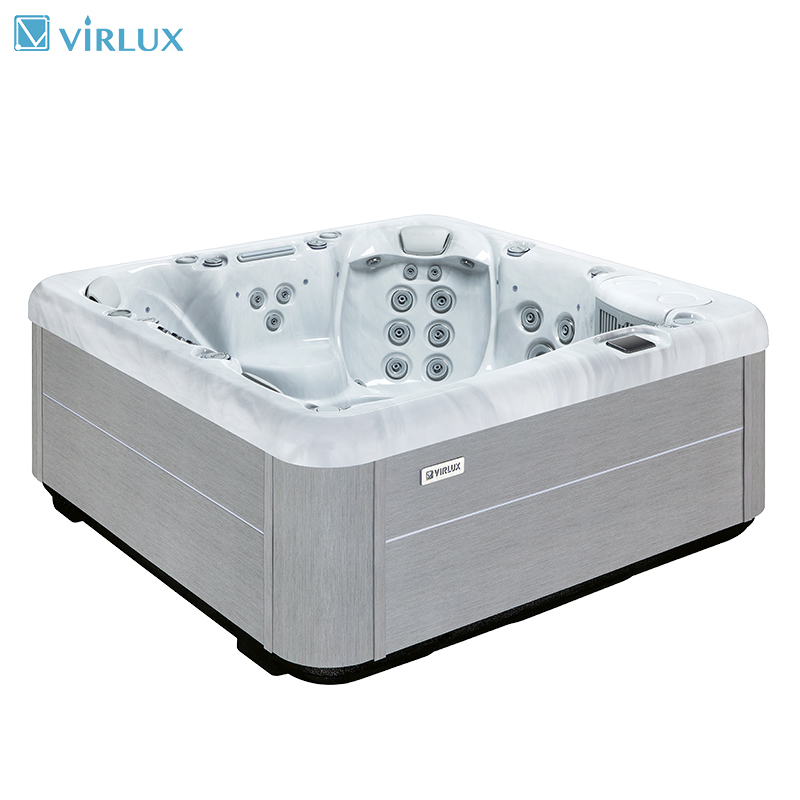

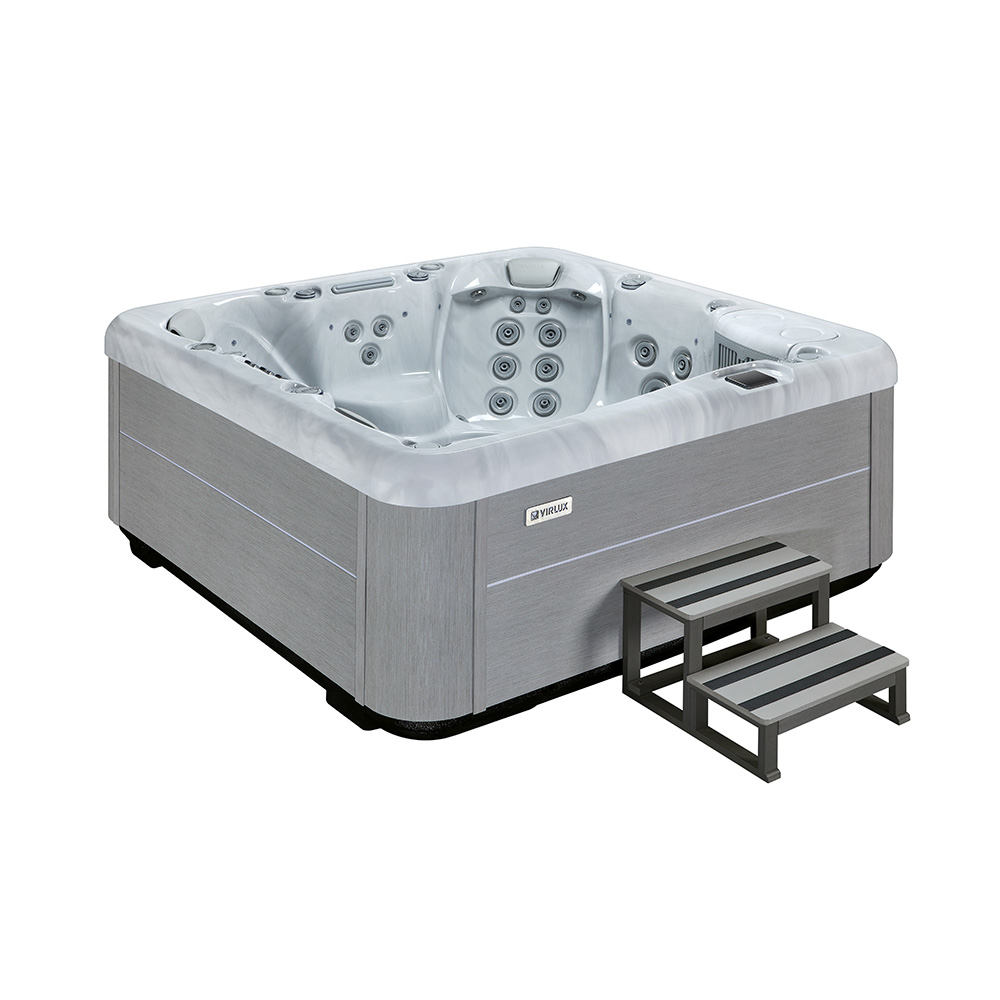

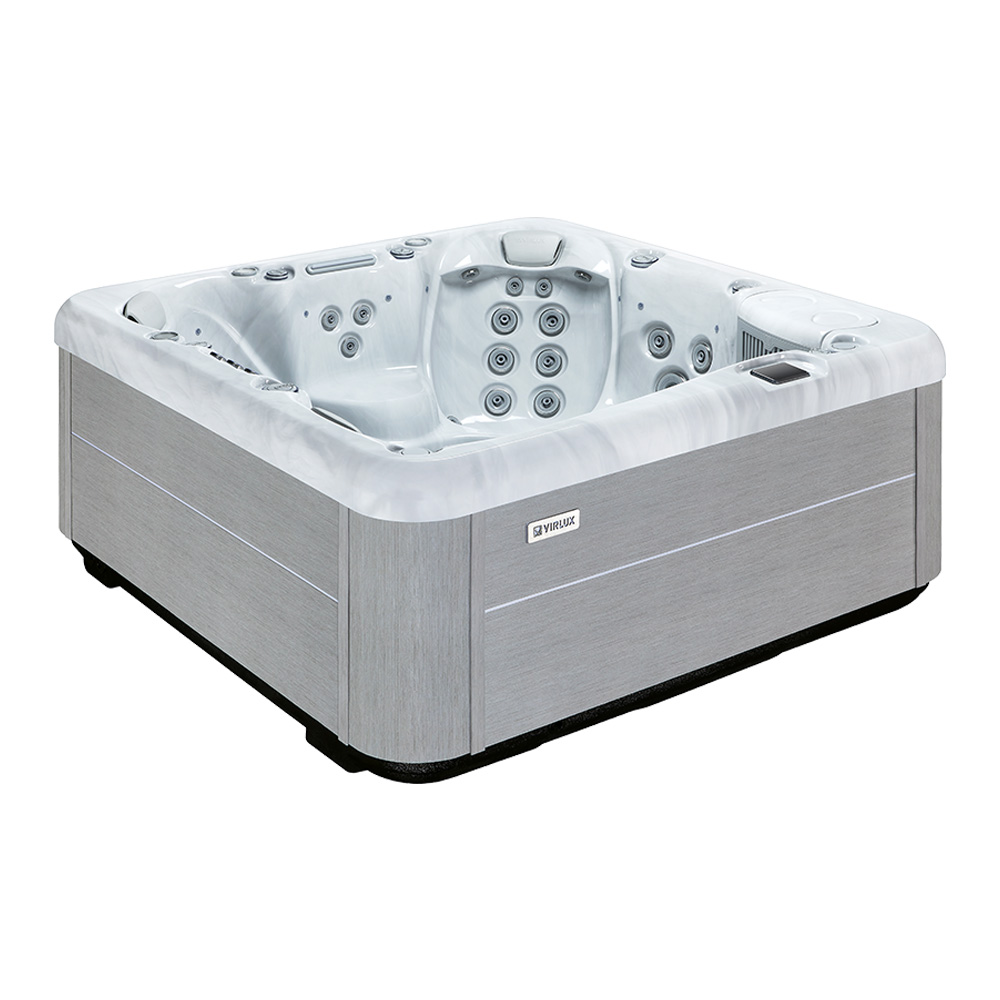

V1014 T10
| Quantity: | |
|---|---|

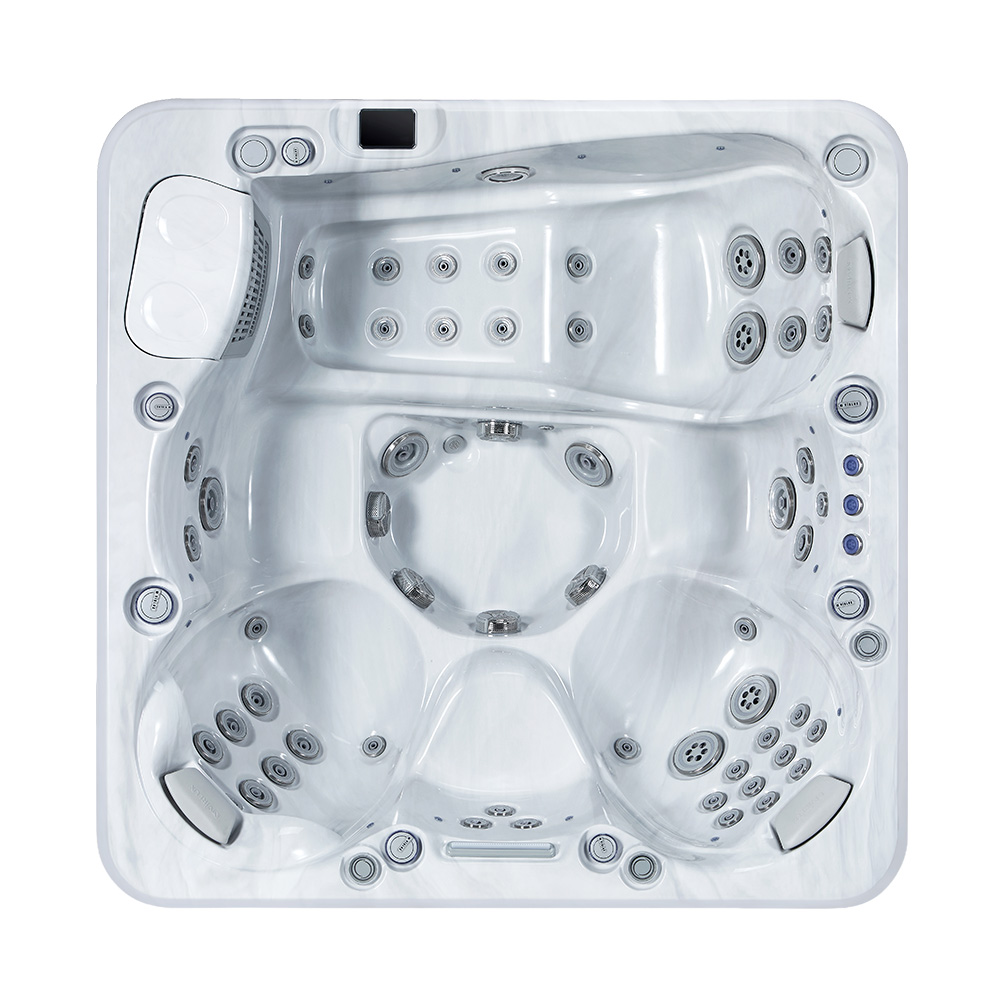

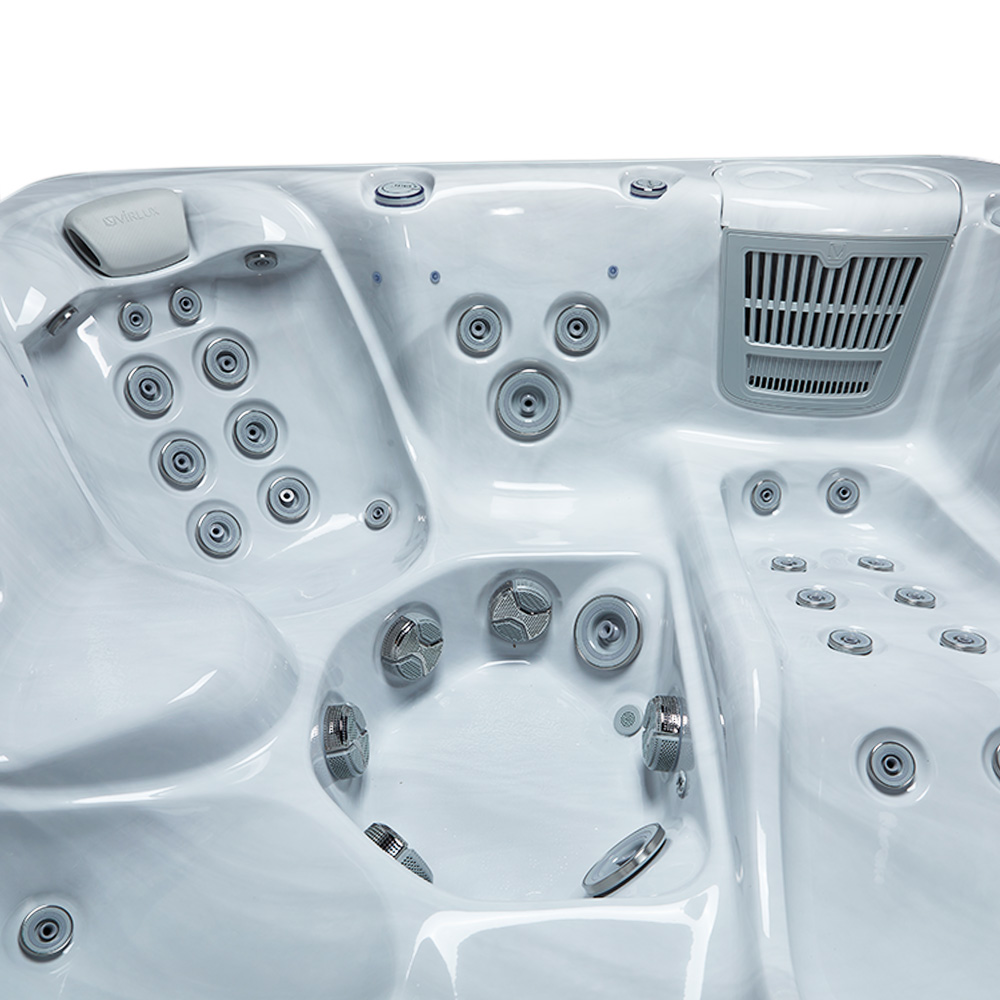

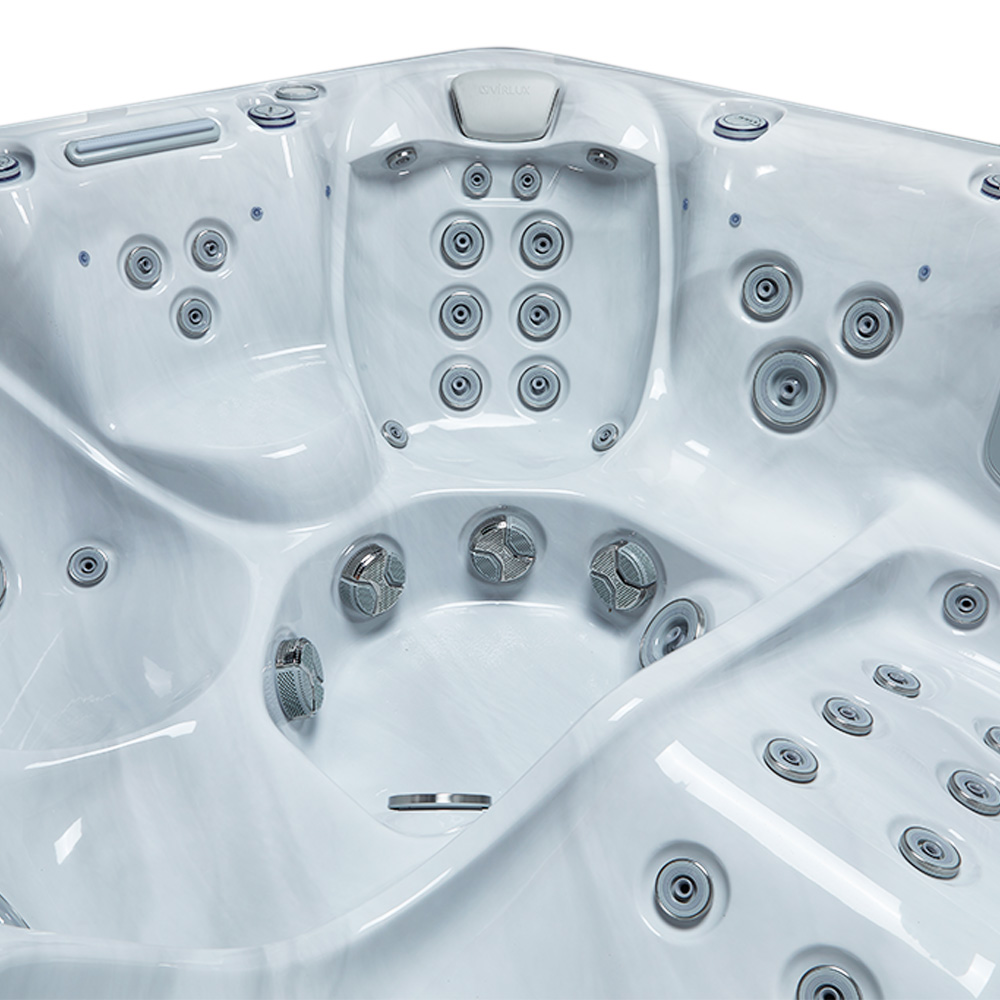

Most compact lounger spas sacrifice leg massage to fit the reclined shape. The V1014's 32 micro-directional jets (2.5") run from back of knee to arch—delivering flowing therapy that rivals full-size loungers.
Shell foam, pipe wraps, cabinet insulation, and base pan maintain heat in ambient temperatures as low as -30°C. Thicker pipe wraps on lounger's extended plumbing prevent freeze damage.
Parameter | Specification |
Model | V1014 |
Dimensions (L x W x H) | 2130*2130*920mm |
Seating Capacity | 5 adults |
Lounge Seat (s) | 1 adult |
Water Capacity | 1,391 liters |
Dry Weight | 420 kg |
Filled Weight | 1,811 kg |
Spa Shell Material(USA) | Aristech ® Acrylic |
Spa Cabinet Material | PS Wood-Plastic Composite Panels |
Cabinet Frame | Preserve Woods+ stainless steel |
Bottom (Pedestal Base) | ABS sheet |
Jet Ring Trim | White Grey Plastic |
Total Jets (pcs) | 54 |
6' Rotational Jets (pcs) | 4 |
6' Directional Jets (pcs) | 4 |
4'' Directiona Jets(pcs) | 14 |
2.5' Directional Jets (pcs) | 32 |
Ozone Jets | 1 |
Joyonway Control system | P68B123 |
Joyonway Touch panel | PB565 |
Pump 1(CE, TUV Approved) | One-speed / 1*2.0HP |
Pump 2(CE, TUV Approved) | One-speed / 1*2.0HP |
Circulation Pump (CE, TUV Approved) | 1 x 0.5HP |
Heater(CE, UL Approved) | 1 x 3.0kW |
Lighting(ETL Approved) | 1x12V, Multi-colored LED Underwater Light |
Ozone Water Purification System | Yes |
Electrical Requirements | 220-240V/50Hz, 22A Max. |
Filter Size | 50sq.ft. |
2' Diverter Valve(pc) | 2 |
1' Diverter Valve(pc) | 2 |
Air Control Valves (pcs) | 4 |
EVA Spa Pillows(pcs) | 3 |
Bottom Drain(pc) | 1 |
Drain Valve(pc) | 1 |
Couples in Urban Apartments
One partner uses lounger, other uses upright seat. Compact 2130×2130mm footprint fits on larger balconies (minimum 2.5×2.5m required).
Runners with Limited Outdoor Space
Marathoners living in city apartments can still enjoy leg-focused hydrotherapy. V1014 provides same calf/arch massage as full-size loungers in half the footprint.
Small Family with One Enthusiast
One family member (e.g., parent with back issues) claims lounger; children and other parent use four upright seats. Everyone fits without upgrading to larger spa.
Boutique Hotel Compact Suites
Hotels with small patio spaces can offer lounger-equipped spa where 2260mm unit wouldn't fit. V1014 becomes bookable "luxury compact" option.
Physical Therapy for Elderly Patients
Elderly patients with leg circulation issues benefit from 32 micro jets along lounger. Reclined position easier to enter than deep upright seats.
First-Time Lounger Buyers with Small Yards
Homeowners who want lounger but assumed it required large yard can now install V1014. True lounger benefits, not watered-down version.
Installation Requirements
Electrical: 220-240V / 50Hz, 22A dedicated circuit with GFCI/RCD.
Foundation: Reinforced concrete pad, 100mm minimum thickness, supporting 1,811 kg.
Access: 2130×2130mm footprint; diagonal delivery through 900mm gates works.
Getting Started
Position empty V1014 on concrete pad.
Connect electrical via licensed electrician.

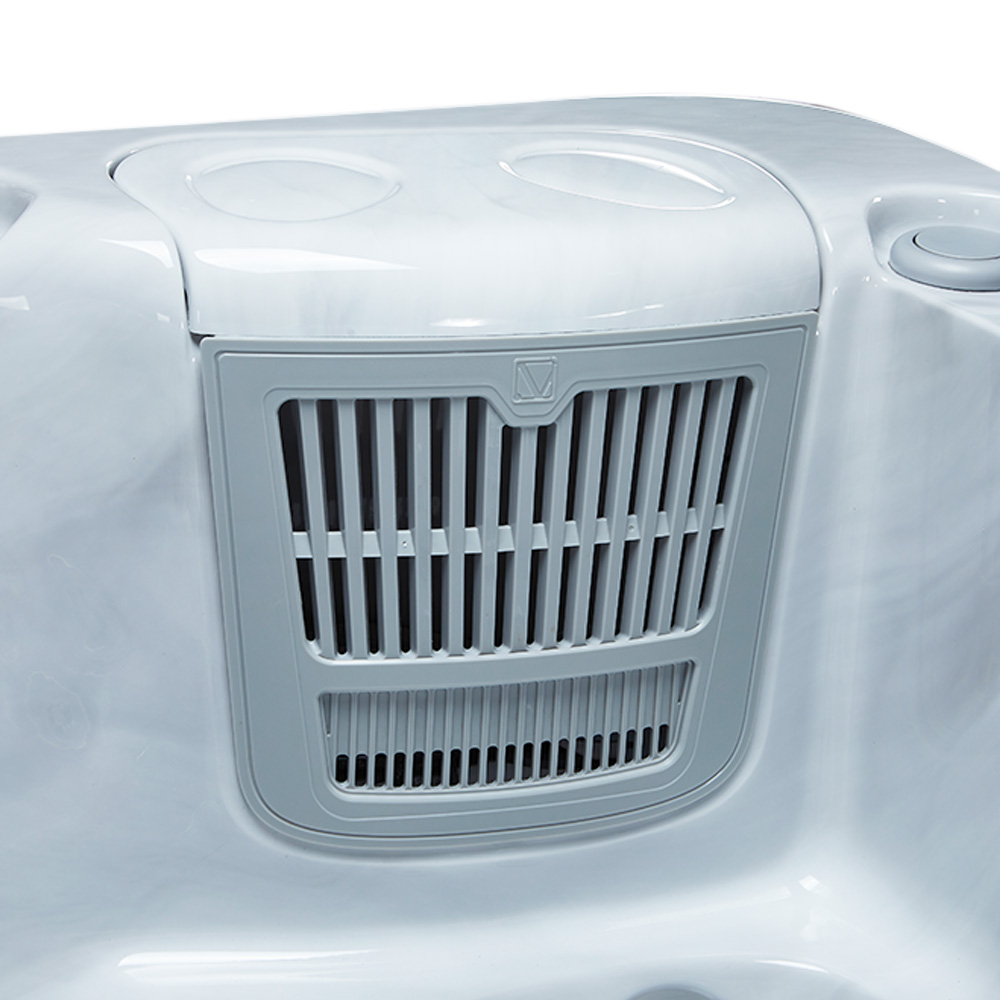

Fill through filter compartment.

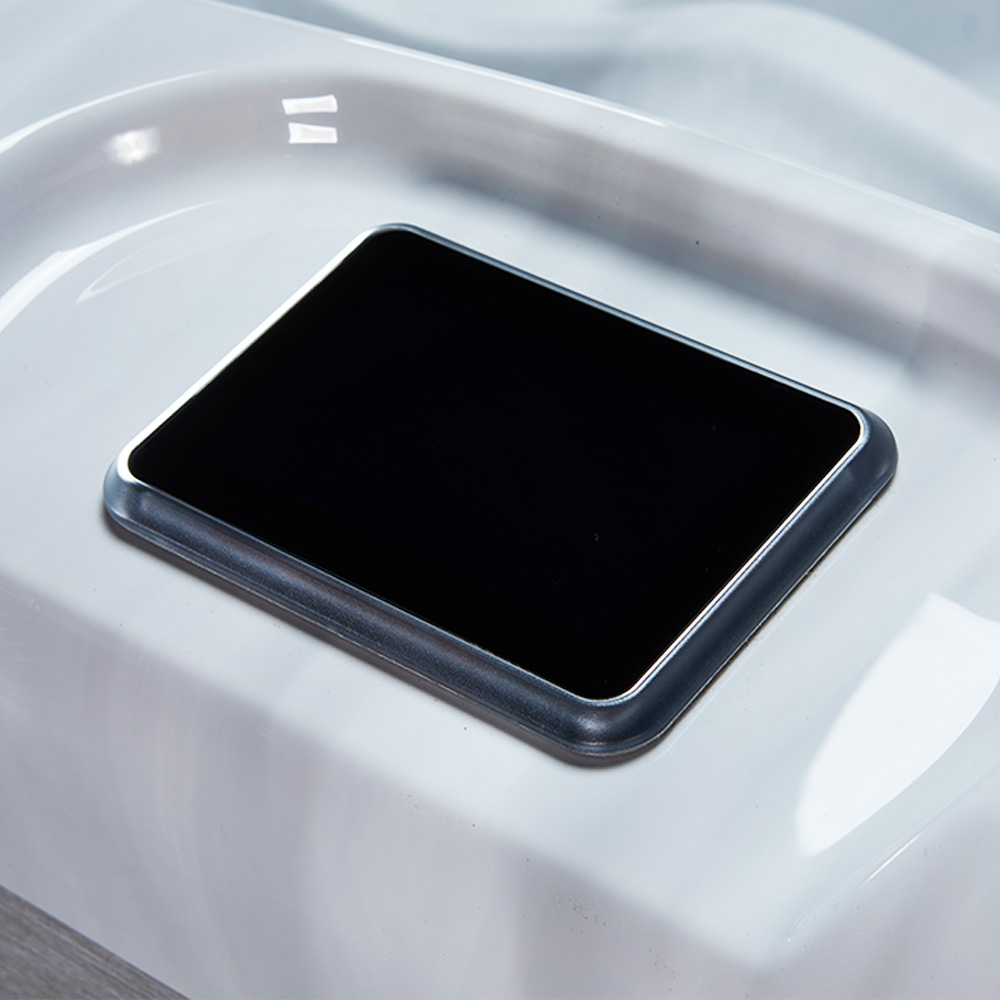

Power on; set temperature to 38°C via PB565 panel.
Add startup chemicals.
Test lounger pressure: close upright seat valves 75% and feel leg micro jets activate.
Quick Tips
Lounger Entry: Sit on lounger's side edge, then swing legs in. Attempting feet-first entry often results in slipping.

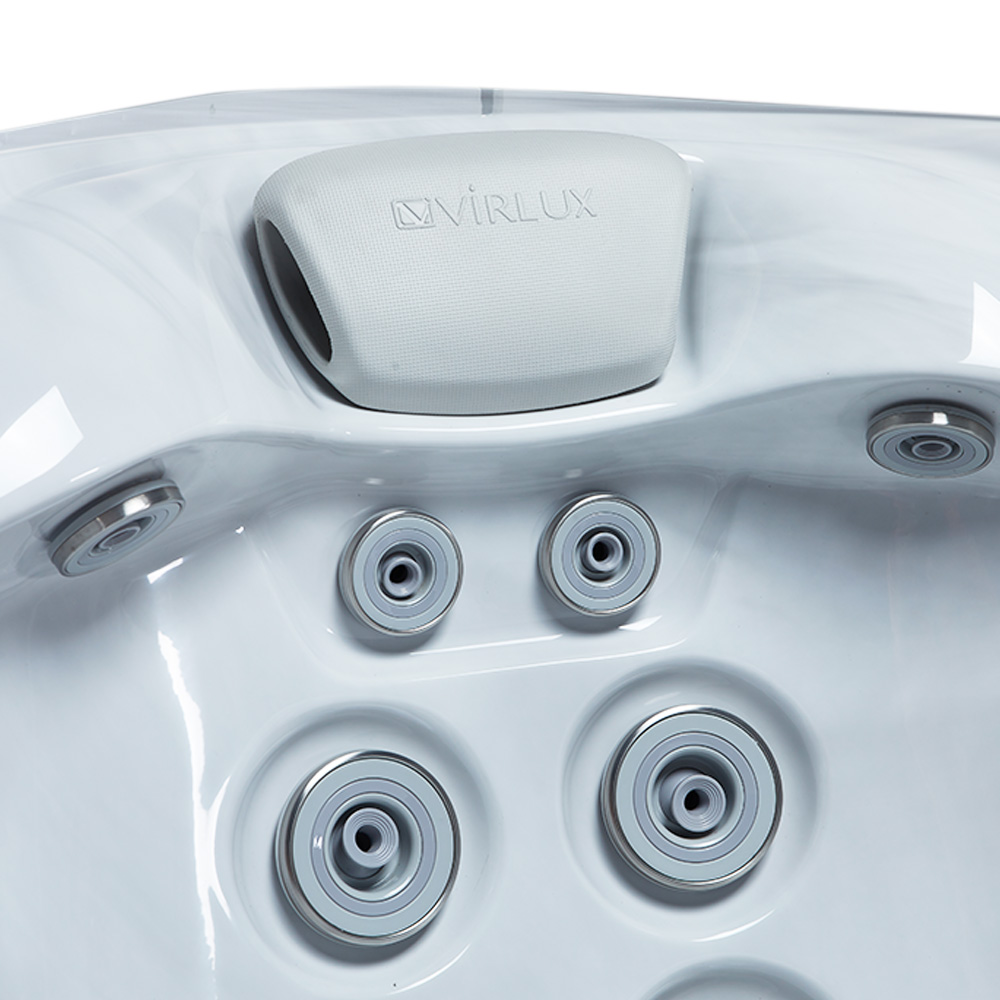

Pillow Removal: Lounger pillow pulls straight up from bracket. Taller users may prefer to remove it for extra neck room.
Download Full Installation Manual (PDF) → [Click Here]
Q1: Does V1014 feel cramped compared to V1002 (2260mm lounger)?
A: Lounger itself is same length (1900mm). Upright seats slightly closer together—adults touch shoulders if all five occupied. For four people or fewer, comfortable.
Q2: Can I use lounger as extra upright seat?
A: Lounger contoured for reclining; sitting upright in it awkward. Reserve for reclined use; use four upright seats for traditional sitting.
Q3: Is V1014 available with lounger on different side?
A: Lounger fixed on side opposite control panel. Left- or right-hand configurations not available; rotate spa 180 degrees if needed.

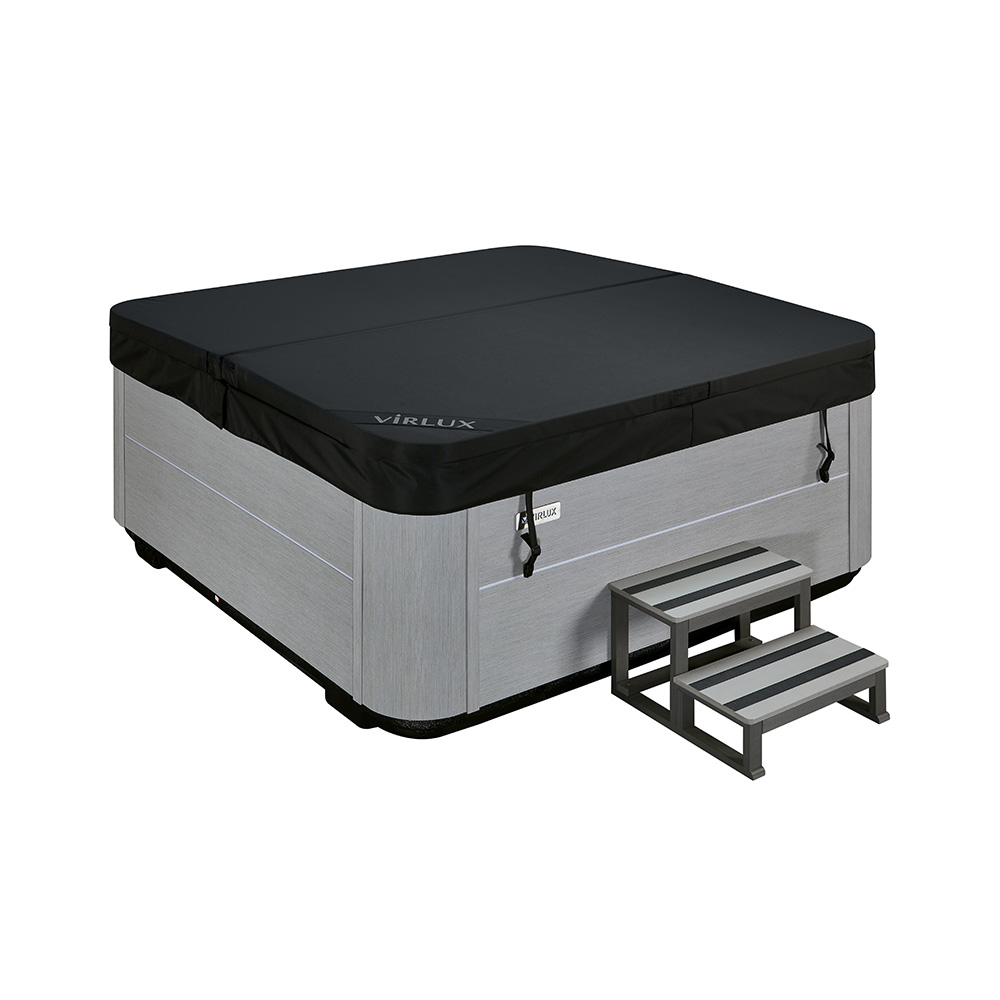

Q4: What is cover weight?
A: Approximately 11 kg. Cover cut with deeper section for lounger contour.
Q5: Can V1014 be installed on wooden deck?
A: If deck engineered for 1,811 kg (approx. 4,000 lbs) and reinforced beneath spa footprint, yes. Consult structural engineer.
Q6: Does V1014 use more electricity than standard compact spas?
A: No—same pumps, same heater. Lounger plumbing doesn't increase power consumption.
Q7: Is WiFi upgrade available?
A: Yes—retrofit module connects to PB565 control panel. Monitor temperature, jets, and lighting from smartphone.
Q8: What is difference between V1014 and V1005?
A: Both are 2130×2130mm, 5+1 lounger. V1014 has 54 jets; V1005 has 50 jets. V1014 uses different jet configuration (4+4+14+32 vs V1005's 3+5+2+4+36).
