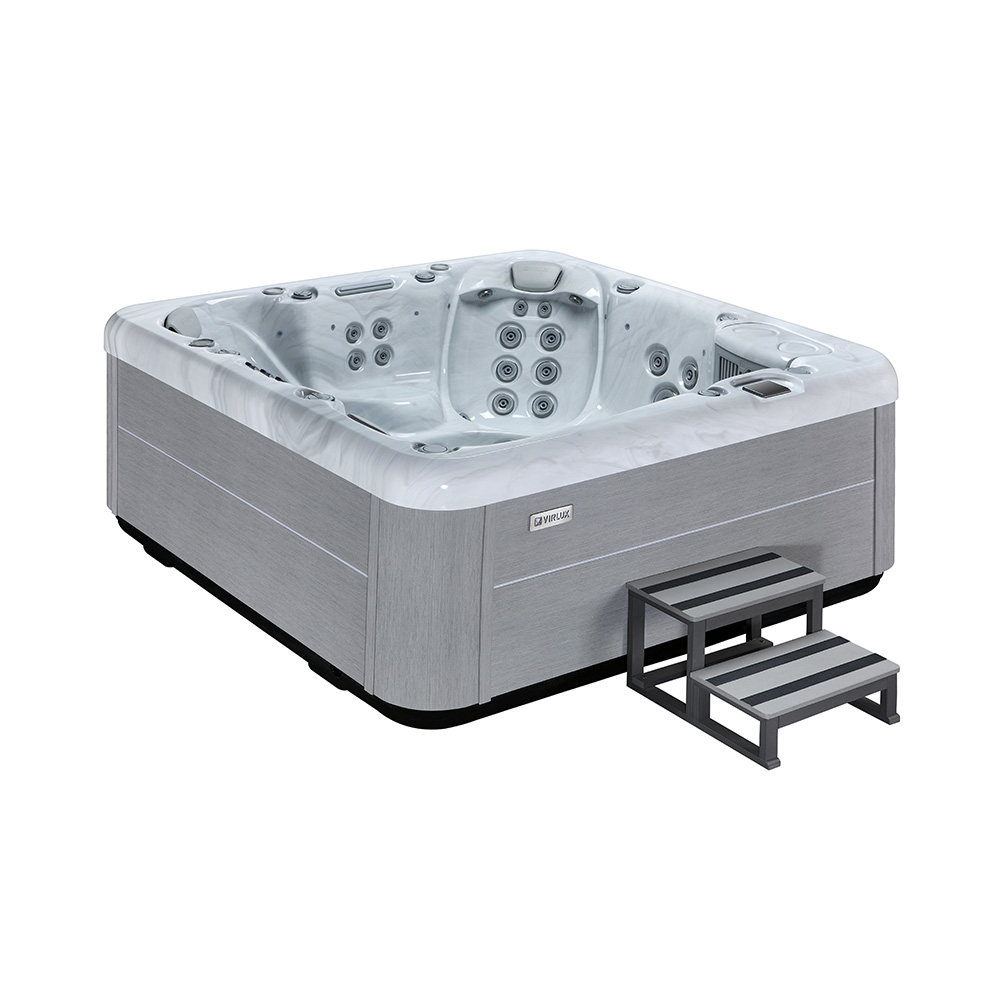

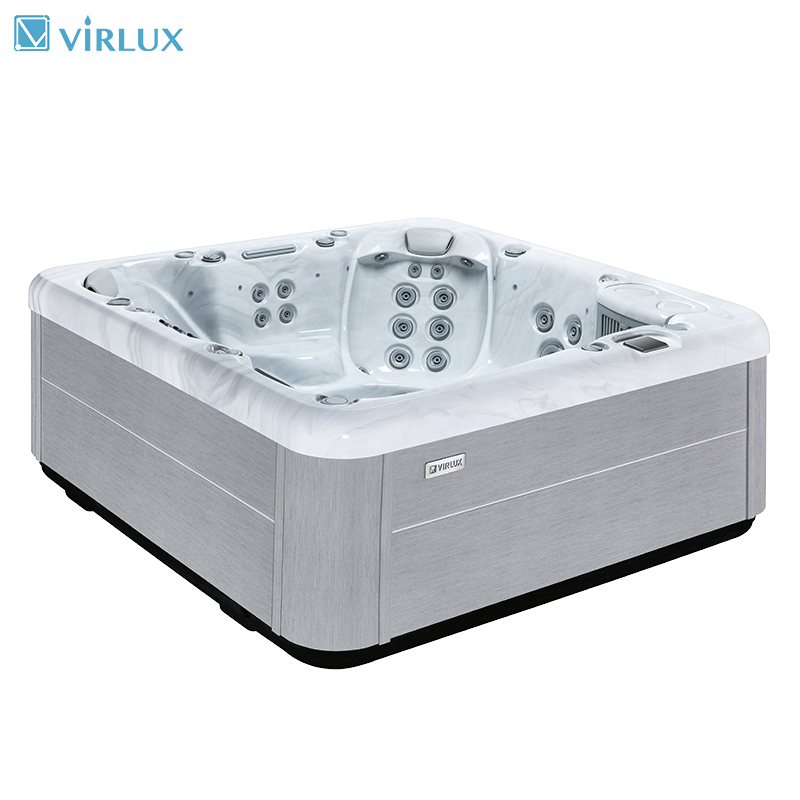

V1012 T10
| Quantity: | |
|---|---|

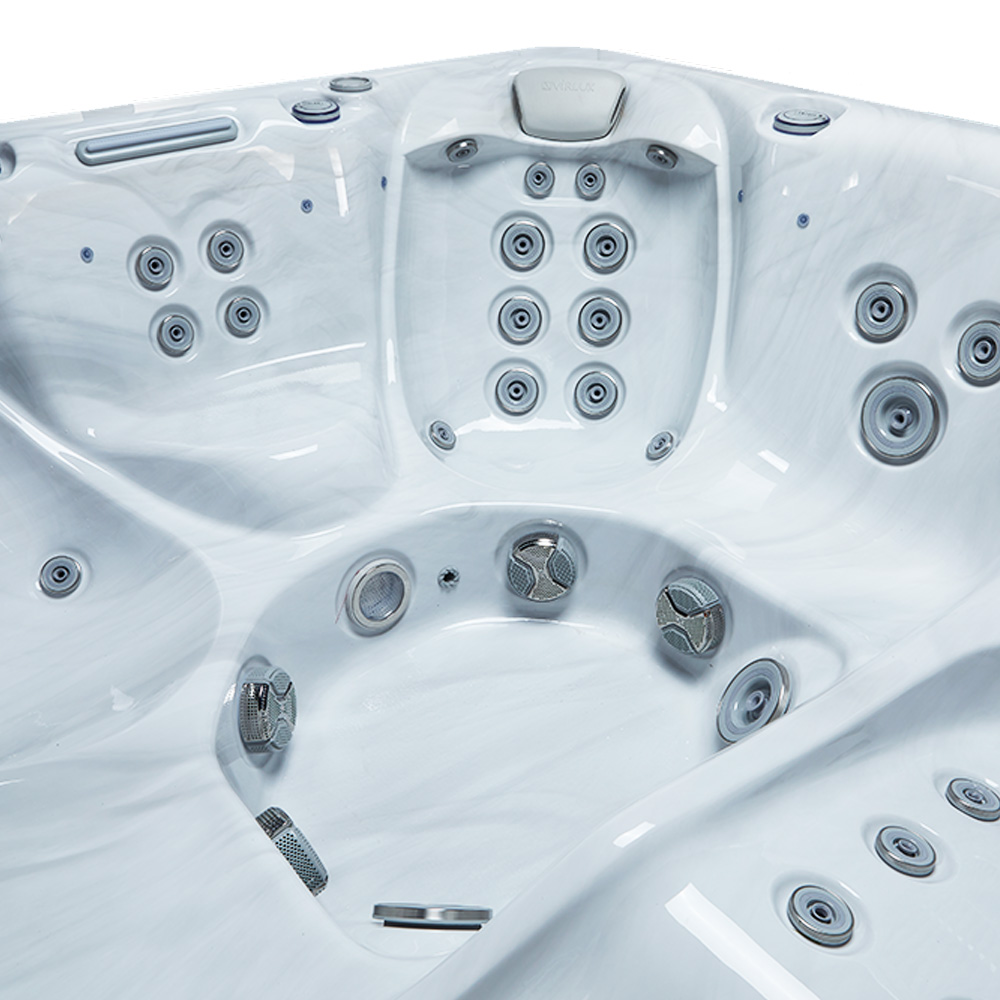

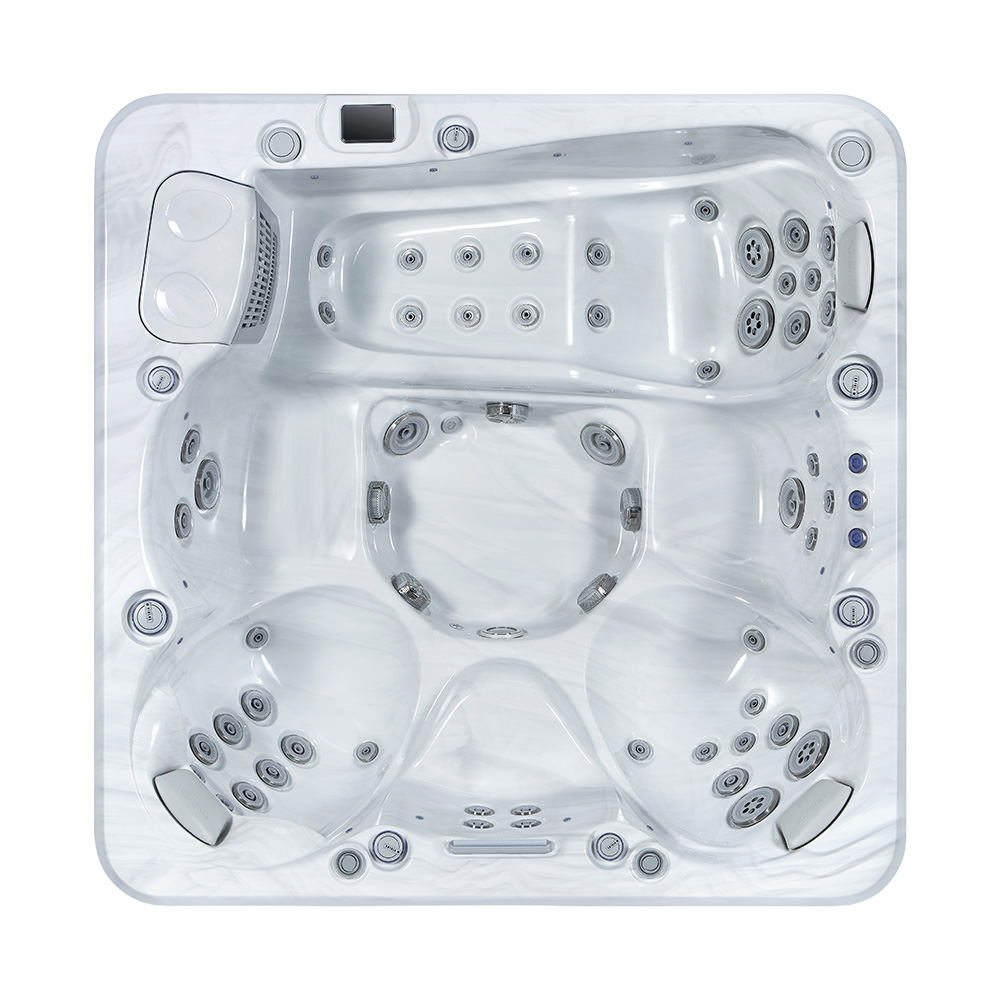

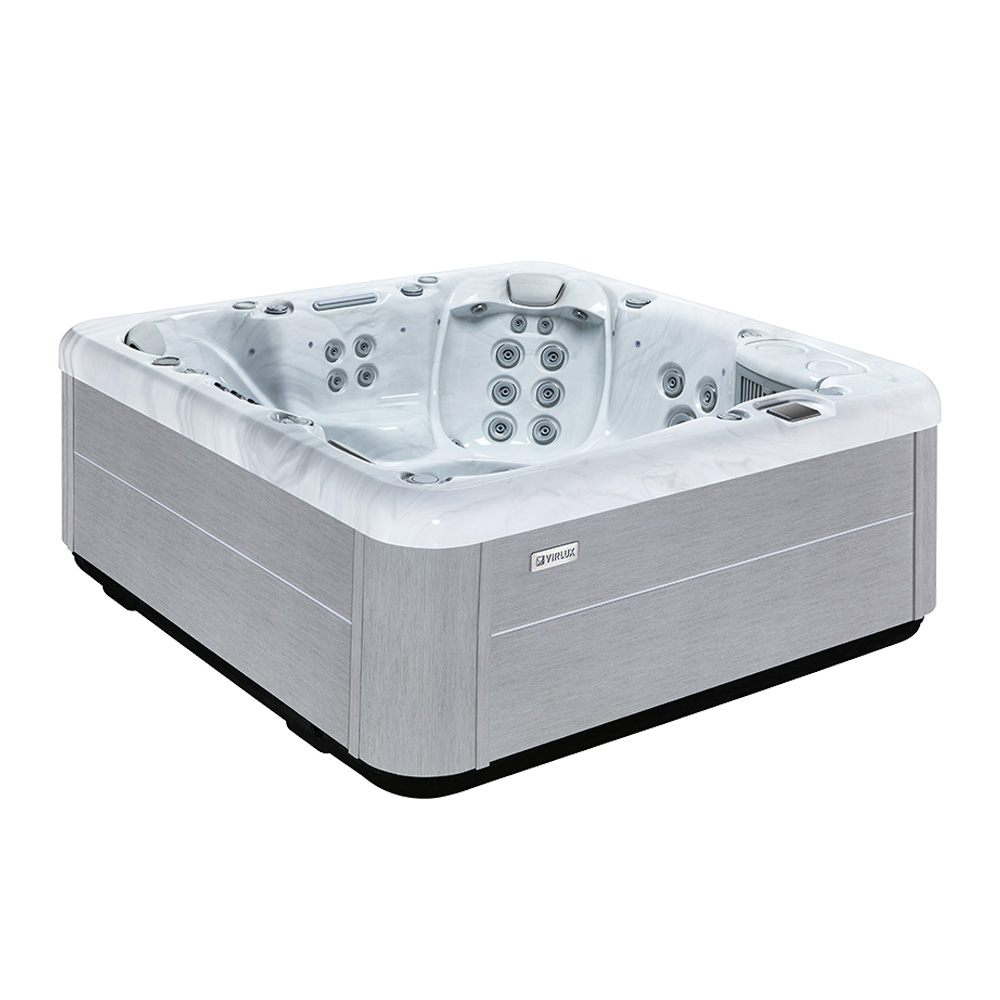

Fully reclined seat positions body at angle that reduces spinal pressure while 32 micro-directional jets (2.5") run along calf and foot area—a configuration often reserved for larger, more expensive spas.
Shell foam, pipe wraps, cabinet insulation, and base pan maintain heat in ambient temperatures as low as -30°C. 304 stainless steel frame resists corrosion.
Parameter | Specification |
Model | V1012 |
Dimensions (L x W x H) | 2260*2260*940mm |
Seating Capacity | 5 adults |
Lounge Seat (s) | 1 adult |
Water Capacity | 1,391 liters |
Dry Weight | 420 kg |
Filled Weight | 1,811 kg |
Spa Shell Material(USA) | Aristech ® Acrylic |
Spa Cabinet Material | PS Wood-Plastic Composite Panels |
Cabinet Frame | Preserve Woods+ stainless steel |
Bottom (Pedestal Base) | ABS sheet |
Jet Ring Trim | White Grey Plastic |

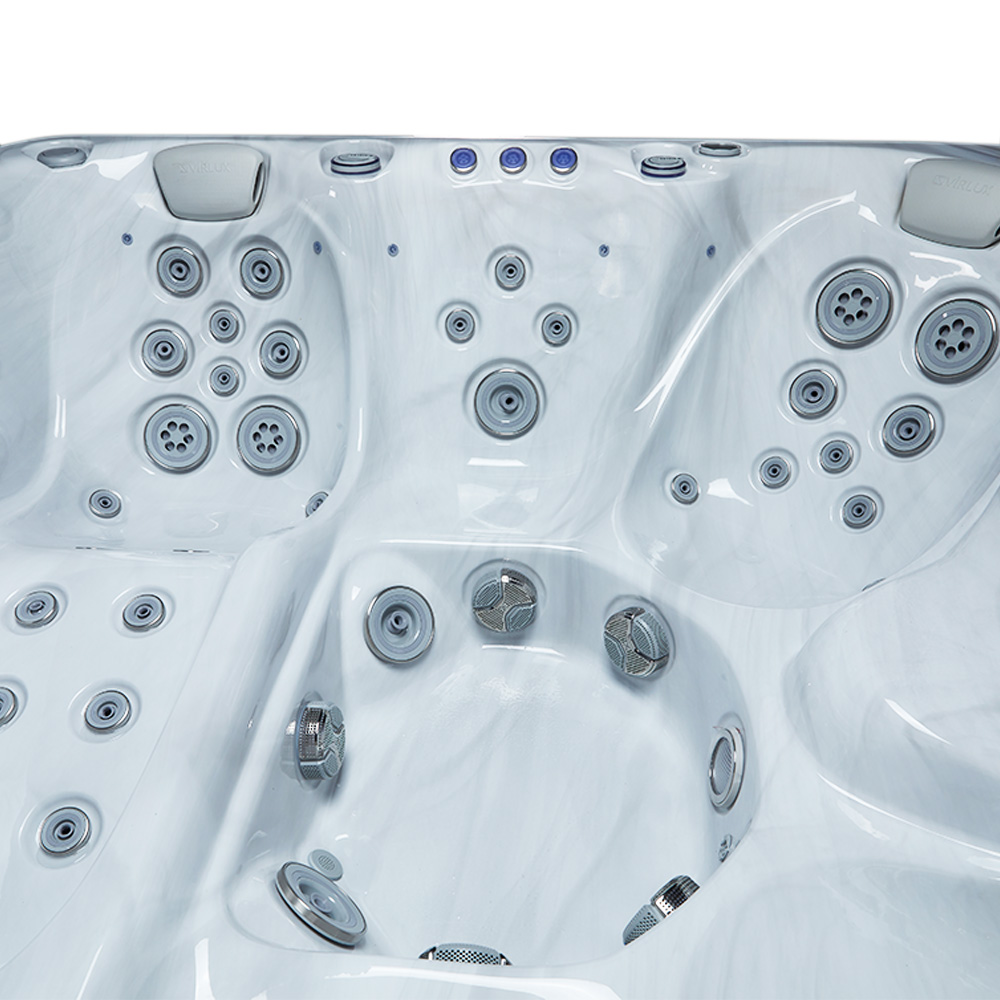

Total Jets (pcs) | 54 |
6' Rotational Jets (pcs) | 4 |
6' Directional Jets (pcs) | 4 |
4'' Directiona Jets(pcs) | 14 |
2.5' Directional Jets (pcs) | 32 |
Ozone Jets | 1 |
Joyonway Control system | P68B123 |

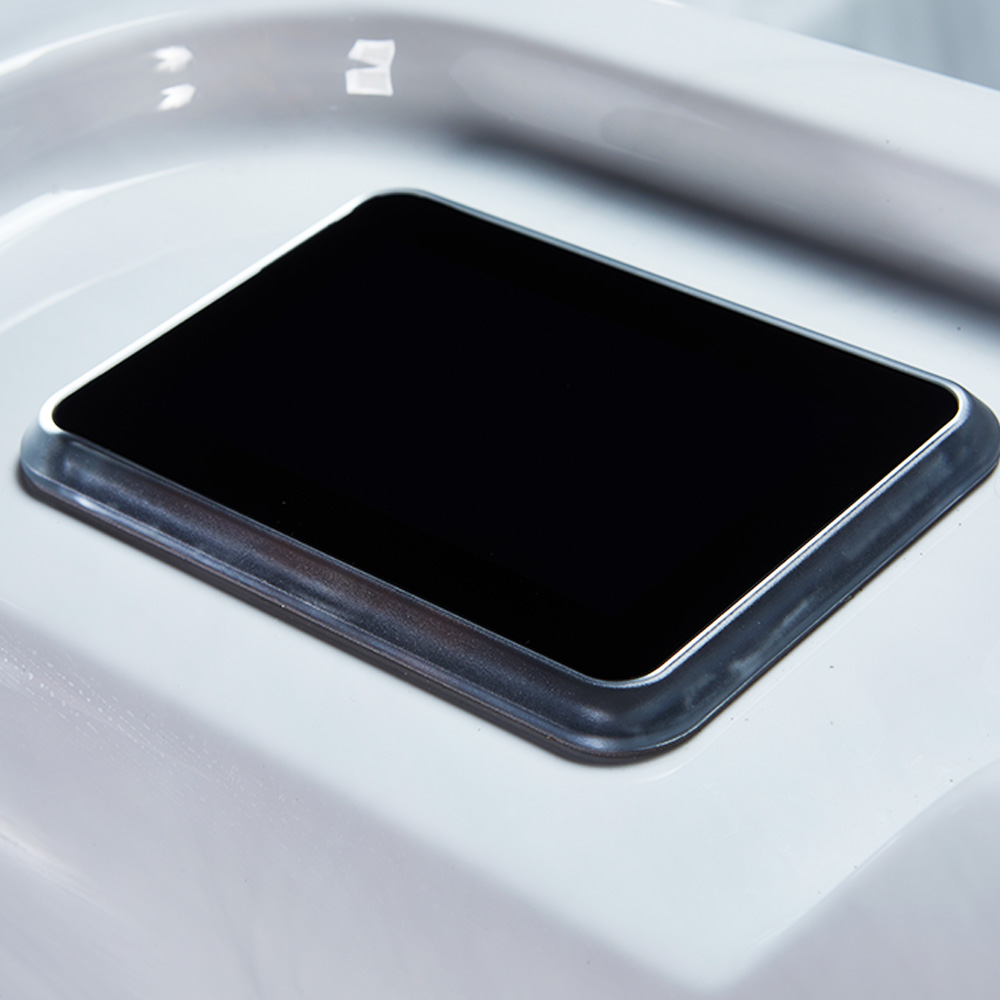

Joyonway Touch panel | PB565 |
Pump 1(CE, TUV Approved) | One-speed / 1*2.0HP |
Pump 2(CE, TUV Approved) | One-speed / 1*2.0HP |
Circulation Pump (CE, TUV Approved) | 1 x 0.5HP |
Heater(CE, UL Approved) | 1 x 3.0kW |
Lighting(ETL Approved) | 1x12V, Multi-colored LED Underwater Light |
Ozone Water Purification System | Yes |
Electrical Requirements | 220-240V/50Hz, 22A Max. |

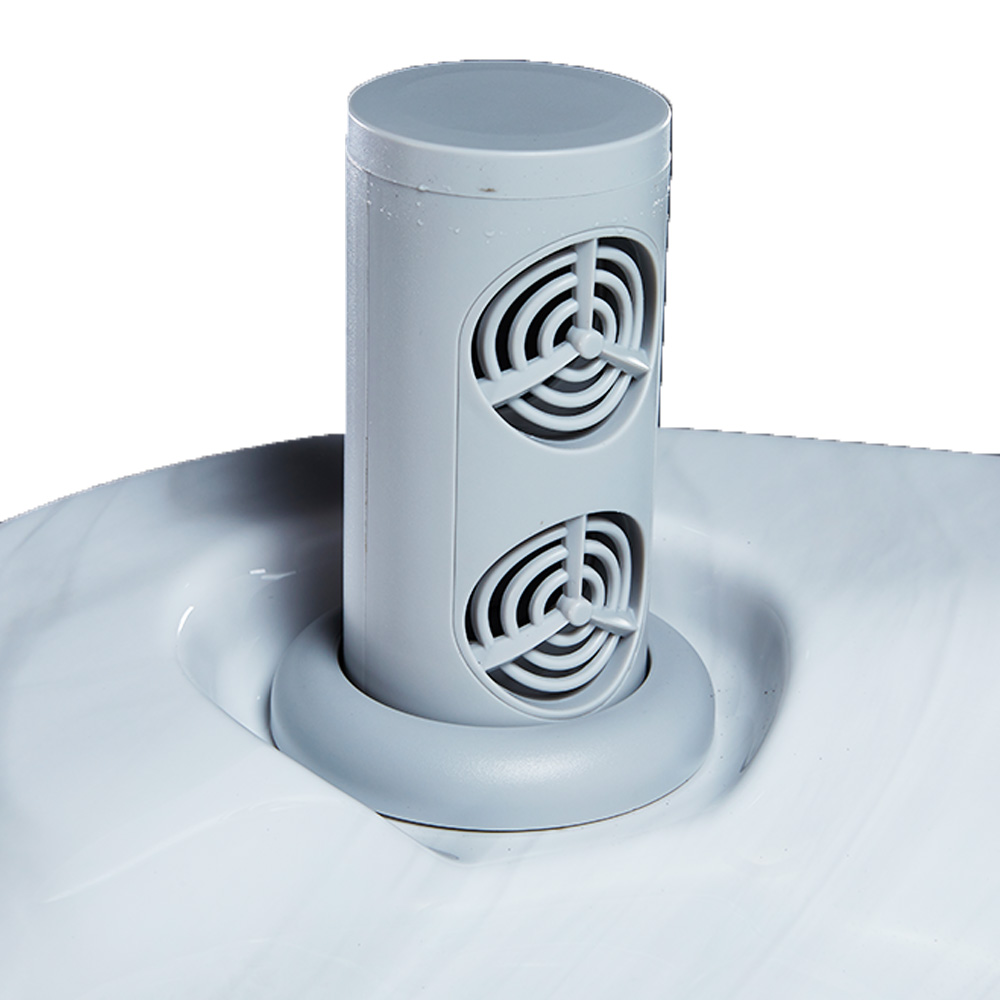

Filter Size | 50sq.ft. |
2' Diverter Valve(pc) | 2 |
1' Diverter Valve(pc) | 2 |
Air Control Valves (pcs) | 4 |

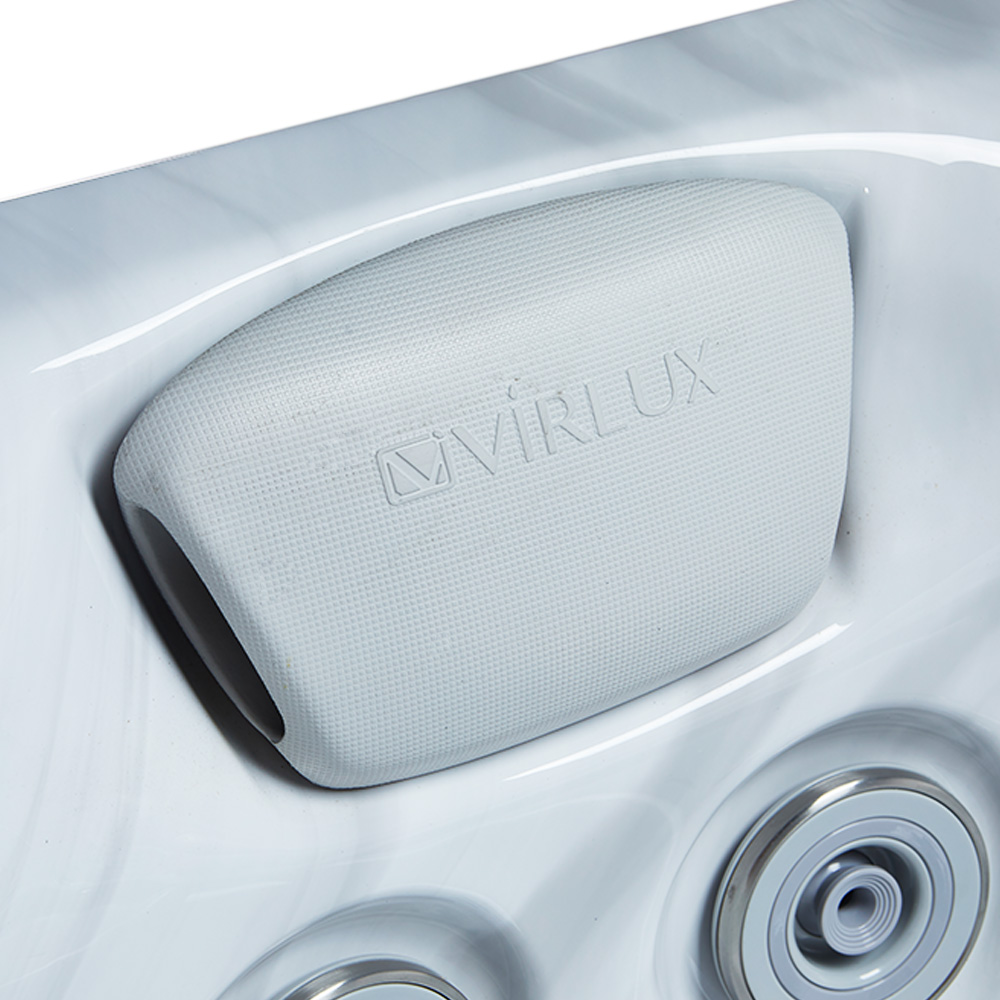

EVA Spa Pillows(pcs) | 3 |
Bottom Drain(pc) | 1 |
Drain Valve(pc) | 1 |
Couples with Occasional Guests
One partner claims lounger for full-body floating therapy; other uses upright seat. When friends visit, four additional upright positions accommodate everyone.
Endurance Athletes (Runners, Cyclists)
Thirty-two micro-directional jets along lounger's leg channel target calves, Achilles tendons, and arches—exactly where endurance sports create most soreness.
Boutique Hotel Spa Suites
Properties with private patios can install V1012 as bookable upgrade. Guests remember lounger experience and leave reviews mentioning "zero-gravity" seat.
Physical Therapy Clinics
Patients with lower back or leg issues benefit from reclined position, which reduces joint load while warm water and targeted jets improve circulation.
Residential Four-Season Use
From Canadian winters to Australian summers, multi-layer insulation and UV-resistant shell maintain performance. No winterization needed—just keep power connected.
Installation Requirements
Electrical: 220-240V / 50Hz, 22A dedicated circuit with GFCI/RCD.
Foundation: Reinforced concrete pad, 100mm minimum thickness, supporting 1,811 kg.
Access: 2260×2260mm footprint fits through standard 900mm gates diagonally.
Getting Started
Position empty V1012 on concrete pad.
Connect electrical via licensed electrician.
Fill through filter well until water covers all jets.
Power on; set temperature to 38°C via PB565 panel.
Add startup chemicals per quick-start guide.
Quick Tips
Lounger Optimization: Close upright seat diverter valves 50% to send more pressure to lounger's 32 micro jets.
Cover Management: Keep insulated cover closed when spa isn't in use; heat loss doubles without it.
Winter Monitoring: In sub-zero weather, check temperature display daily to ensure power hasn't tripped.
Download Full Installation Manual (PDF) → [Click Here]
Q1: Is lounger comfortable for someone over 190cm?
A: Lounger accommodates users up to 190cm (6'3") comfortably. Taller individuals may find heels extend beyond final micro jets but still receive adequate calf massage.
Q2: How does V1012 differ from V1002?
A: V1012 has 54 jets vs V1002's 56 jets. Both are 5+1 lounger spas in 2260×2260mm footprint. V1012 uses different jet configuration (14 medium directional vs 5+7 split).
Q3: Can children use lounger safely?
A: Yes, but supervise children under 12. Lounger depth means small child's head may not clear water surface; use upright seats for young bathers.
Q4: How often change water?
A: With ozone and regular chemical maintenance, water stays clear for 3–6 months. Drain and refill when total dissolved solids exceed 1,500 ppm.
Q5: Does V1012 include cover?

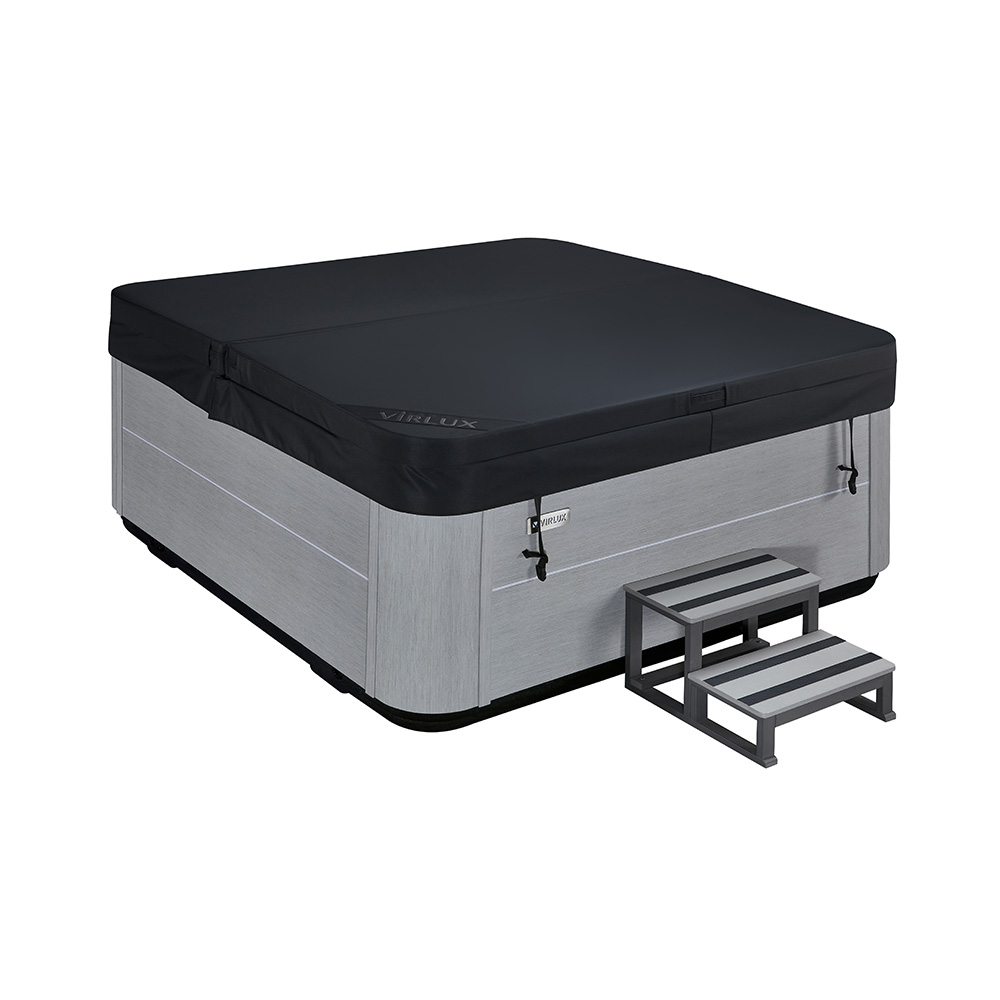

A: Yes—insulated locking cover with safety straps included. Optional cover lifter available separately.
Q6: What certifications does V1012 hold?
A: CE (Europe), TUV (Germany), ETL/UL (North America), SAA (Australia), ROHS—covering all target markets.
Q7: Can I upgrade to Balboa control system?
A: Yes—Balboa and Gecko systems available as optional upgrades during ordering. Contact sales team for pricing.
Q8: How noisy are pumps at full power?
A: Approximately 48–52 decibels—similar to refrigerator hum. Cabinet insulation absorbs most sound.
