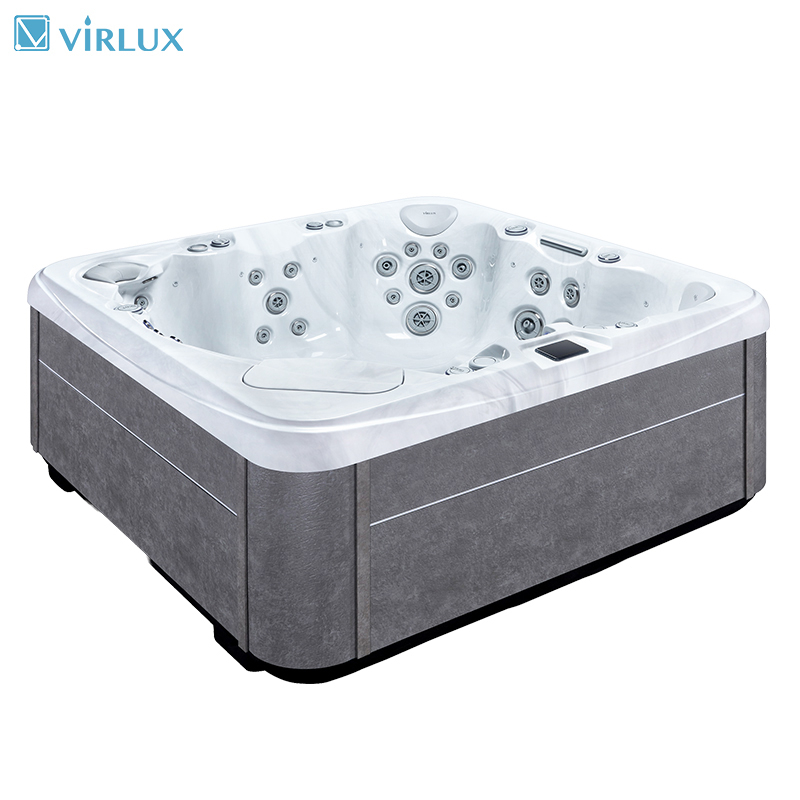

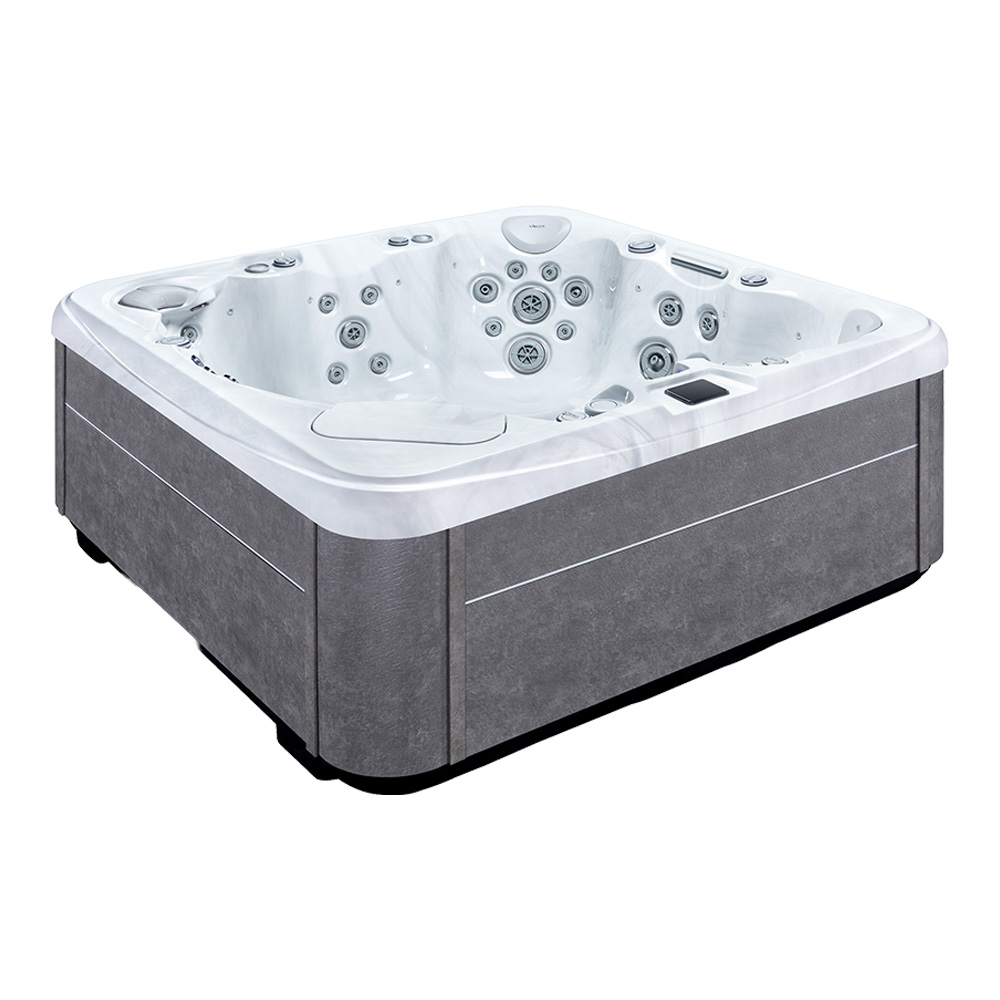

V1004
| Quantity: | |
|---|---|
The 2130×2130mm base fits standard patio paver patterns and leaves room for landscaping, outdoor kitchens, or seating areas—common constraints in European and Australian properties.
Shell foam, pipe wraps, cabinet insulation, and a base pan retain heat down to -30°C ambient. The 304 stainless steel frame resists frost heave damage and corrosion.
Parameter | Specification |
Model | V1004 |
Dimensions (L x W x H) | 2130*2130*920mm |

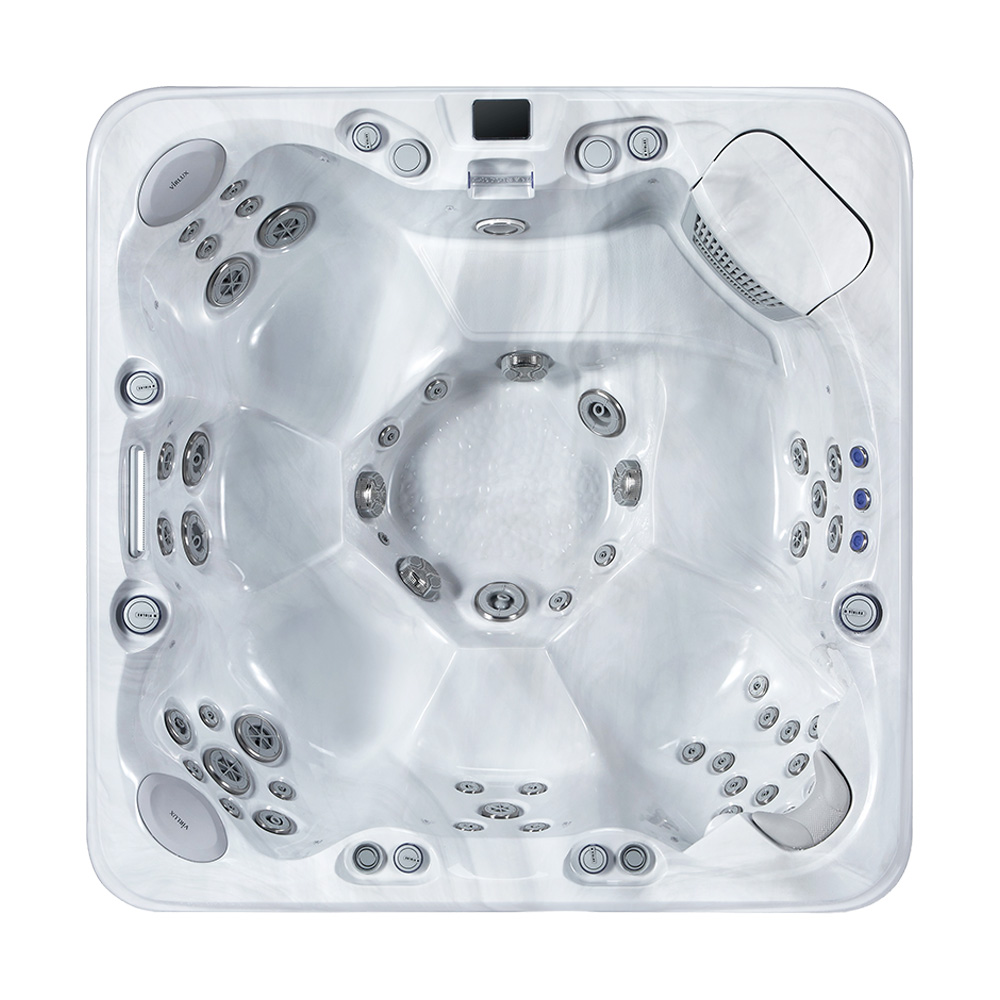

Seating Capacity | 6 adults |
Lounge Seat (s) | 0 adults |
Water Capacity | 1,391 liters |
Dry Weight | 420 kg |
Filled Weight | 1,811 kg |
Spa Shell Material(USA) | Aristech ® Acrylic |
Spa Cabinet Material | PS Wood-Plastic Composite Panels |
Cabinet Frame | Preserve Woods+ stainless steel |
Bottom (Pedestal Base) | ABS sheet |
Jet Ring Trim | White Grey Plastic |

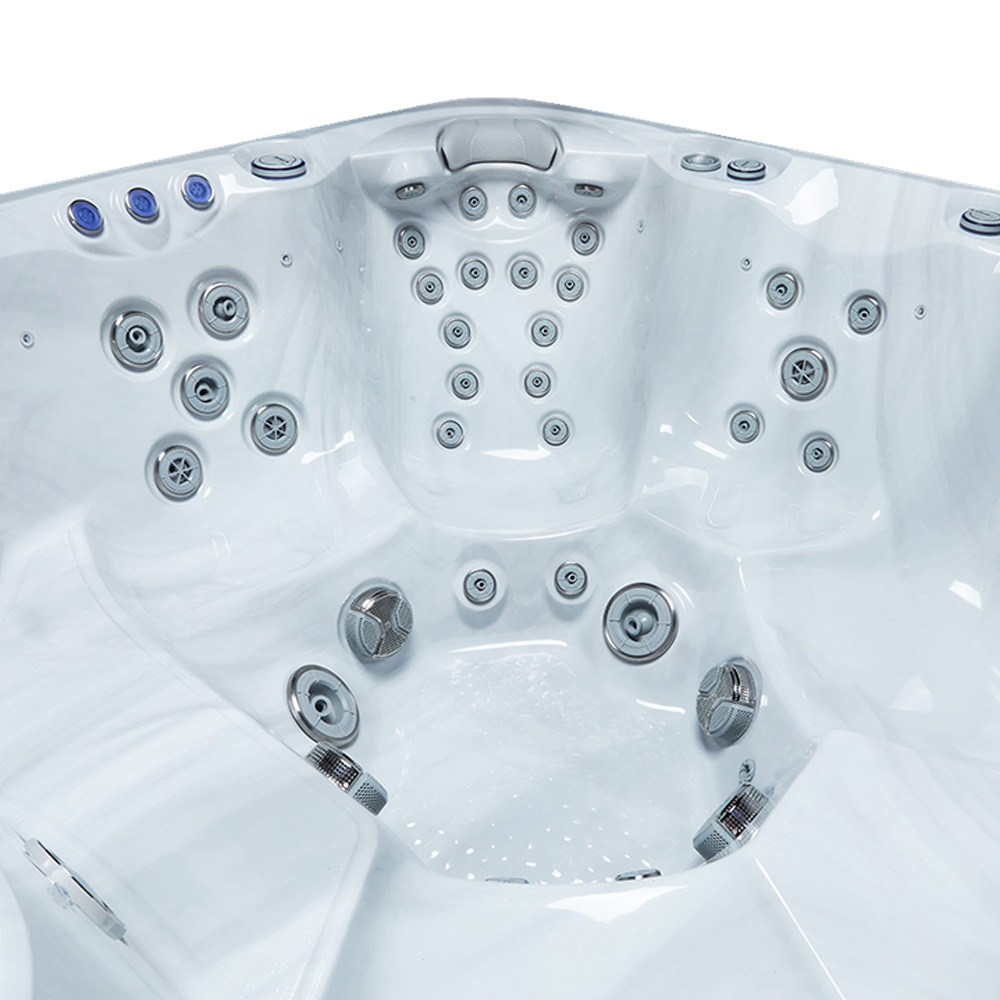

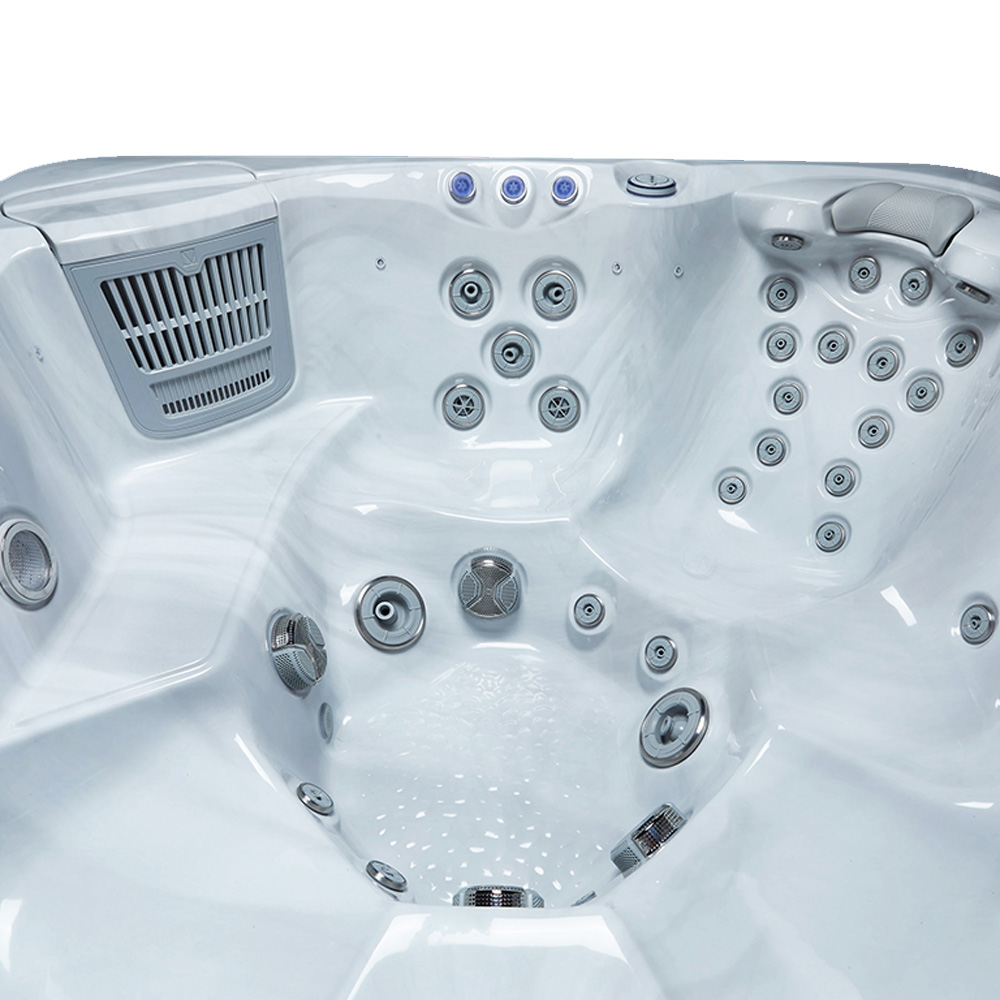

Total Jets (pcs) | 48 |
6' Rotational Jets (pcs) | 4 |
6' Directional Jets (pcs) | 4 |
4' Rotational Jets (pcs) | 5 |
4'' Directiona Jets(pcs) | 5 |
2.5' Directional Jets (pcs) | 30 |
Ozone Jets | 1 |
Joyonway Control system | P68B123 |

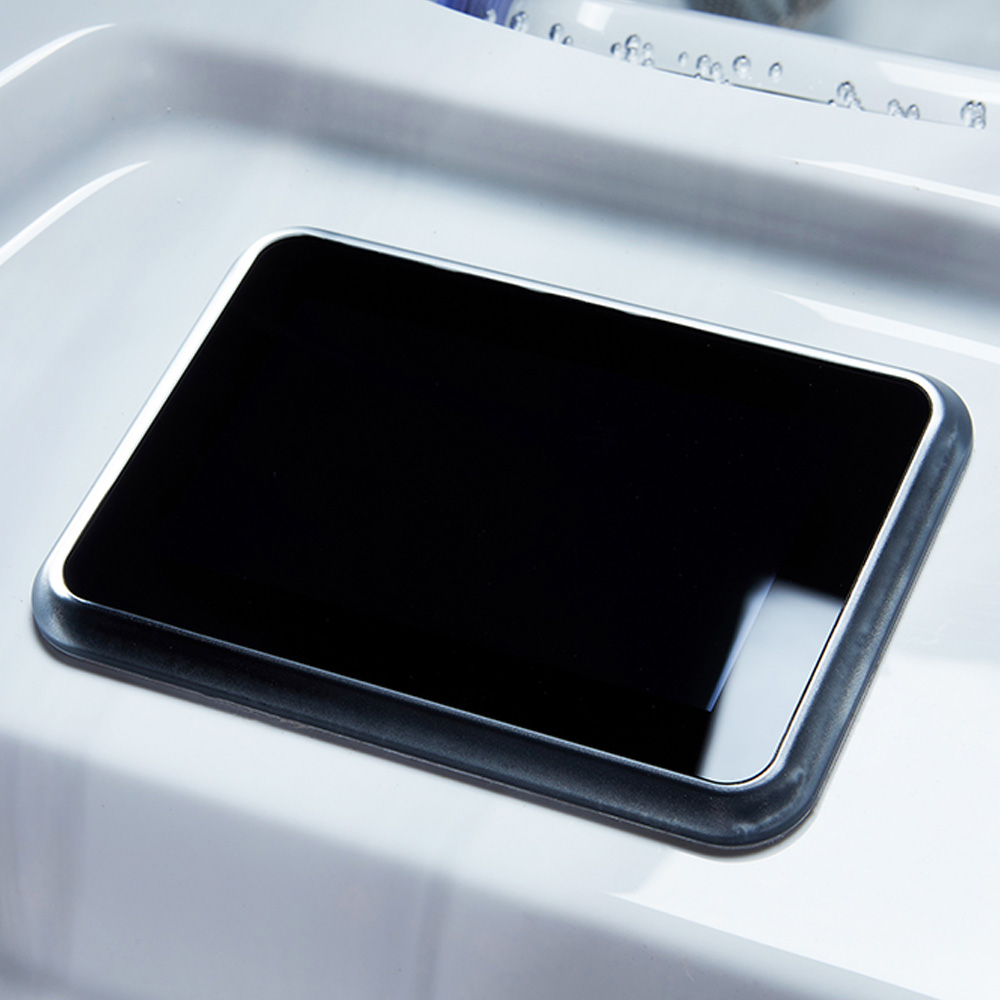

Joyonway Touch panel | PB565 |
Pump 1(CE, TUV Approved) | One-speed / 1*2.0HP |
Pump 2(CE, TUV Approved) | One-speed / 1*2.0HP |
Circulation Pump (CE, TUV Approved) | 1 x 0.5HP |
Heater(CE, UL Approved) | 1 x 3.0kW |
Lighting(ETL Approved) | 1x12V, Multi-colored LED Underwater Light |
Ozone Water Purification System | Yes |
Electrical Requirements | 220-240V/50Hz, 22A Max. |
Filter Size | 50sq.ft. |
2' Diverter Valve(pc) | 2 |
1' Diverter Valve(pc) | 2 |
Air Control Valves (pcs) | 4 |

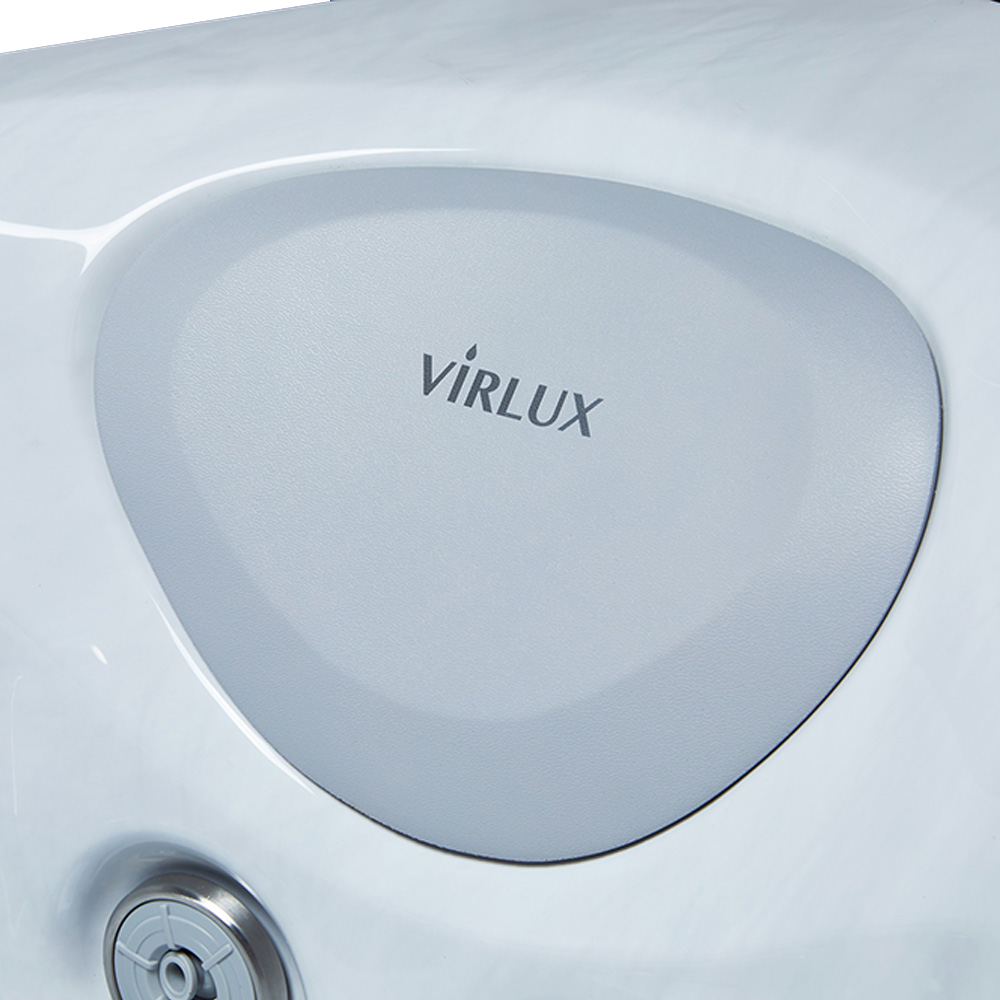

EVA Spa Pillows(pcs) | 3 |
Bottom Drain(pc) | 1 |
Drain Valve(pc) | 1 |
When your outdoor space measures just 4×5 meters, the V1004 leaves room for a grill and two lounge chairs. Full six-person capacity means you can still host Saturday night soaks with neighbors.
Hotels with limited garden area can install the V1004 instead of a larger model. Guests still get a six-person spa, and the hotel saves valuable square footage for other amenities.
Entry-level homes often come with smaller yards. The V1004 allows new homeowners to add a luxury feature without feeling they've "overfilled" their property.
Many historic districts restrict backyard structures to certain dimensions. The 2130×2130mm footprint often falls within permitted sizes where larger spas are denied.
Weight-loaded at 1,811kg filled, the V1004 suits reinforced rooftop decks (engineer approval required). The compact base fits within typical rooftop elevator dimensions.
Grandparents, parents, and children can all sit together. The 48 jets provide enough massage points without overwhelming young or sensitive users.
Installation Requirements
Electrical: 220-240V / 50Hz, 22A dedicated circuit with GFCI/RCD. Licensed electrician required.
Foundation: Level reinforced concrete pad, 100mm minimum thickness, supporting 1,811 kg.
Access: The 2130×2130mm base fits through standard 36" garden gates; diagonal delivery works for narrower openings.
Getting Started
Position the empty V1004 on its concrete pad.
Connect electrical supply through a qualified electrician.
Fill via garden hose through the filter compartment.
Power on; set temperature to 38°C via PB565 panel.
Add startup chemicals (pH balancer and sanitizer).
Quick Tips
Heating Time: First fill takes 12–20 hours to reach temperature. Subsequent heats are faster.

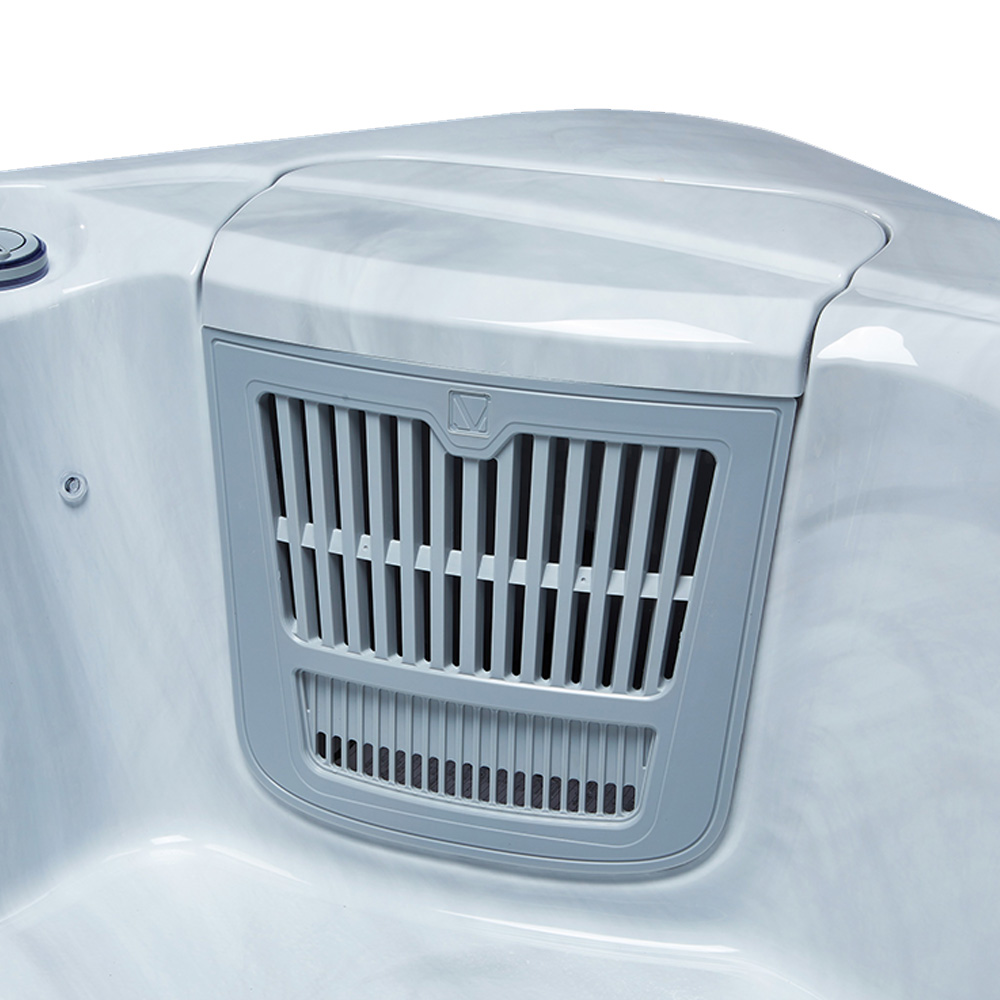

Filter Cleaning: Rinse the 50 sq.ft. filter monthly; replace every 12–18 months.
Winter Operation: Never drain the spa in freezing weather—the insulation relies on water mass for stability.
Download Full Installation Manual (PDF) → [Click Here]
Q1: Does the smaller footprint mean shallower seats?
A: No—seat depth is identical to the 2260mm VIRLUX models. Only the exterior dimensions shrank; interior ergonomics remain generous.
Q2: Can six adults sit without touching shoulders?
A: The layout spaces seats approximately 550mm center-to-center—adults will make shoulder contact if all six are used simultaneously. For personal space, limit to four adults.
Q3: Is the V1004 available with a lounger?
A: No—this model keeps all six seats upright to maximize capacity. For a lounger in a compact footprint, see the V1014 (5+1 configuration).
Q4: How does the V1004 compare to the V1001?
A: V1004 is 130mm narrower per side but seats the same six people. Jet count is 48 vs 52—a small reduction that most users don't notice during use.
Q5: Can I install the V1004 on a wooden deck?
A: If the deck is engineered for 1,811 kg (approx. 4,000 lbs) and reinforced beneath the spa footprint, yes. Have a structural engineer verify load capacity first.
Q6: What is the shipping weight?
A: Approximately 450 kg on a pallet. Delivery requires a liftgate truck and pallet jack; curbside delivery is standard.
Q7: Does the V1004 include a cover?
A: Yes—a 75mm-thick insulated cover with locking straps is included. An optional cover lifter is available separately.
Q8: How often should I change the water?
A: With ozone and regular chemical maintenance, water stays clear for 3–6 months. Drain and refill when total dissolved solids exceed 1,500 ppm.
