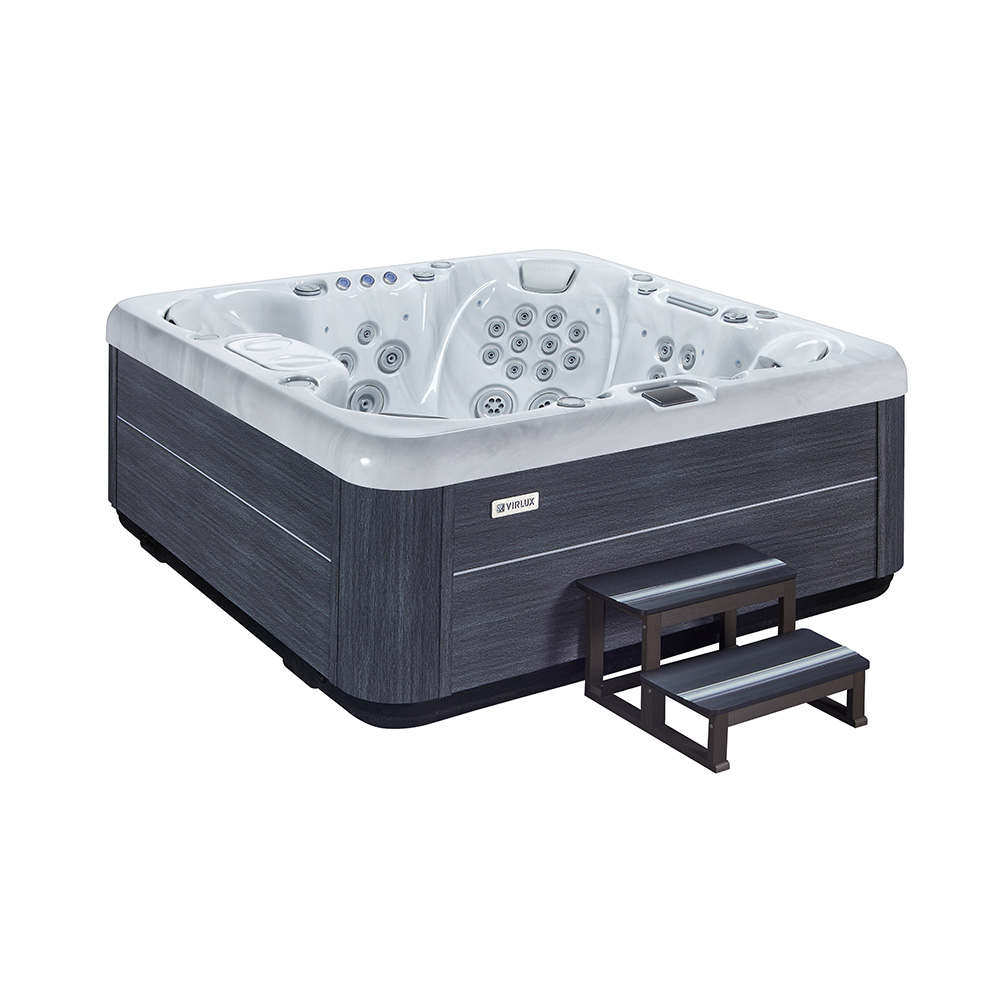

V1013 T10
| Quantity: | |
|---|---|
2130×2130mm base fits standard patio paver patterns and leaves room for landscaping, outdoor kitchens, or seating areas—common constraints in European and Australian properties.
Shell foam, pipe wraps, cabinet insulation, and base pan retain heat down to -30°C ambient. 304 stainless steel frame resists frost heave damage and corrosion.
Parameter | Specification |
Model | V1013 |
Dimensions (L x W x H) | 2130*2130*940mm |
Seating Capacity | 6 adults |
Lounge Seat (s) | 0 adults |
Water Capacity | 1,391 liters |
Dry Weight | 420 kg |
Filled Weight | 1,811 kg |
Spa Shell Material(USA) | Aristech ® Acrylic |
Spa Cabinet Material | PS Wood-Plastic Composite Panels |
Cabinet Frame | Preserve Woods+ stainless steel |
Bottom (Pedestal Base) | ABS sheet |
Jet Ring Trim | White Grey Plastic |

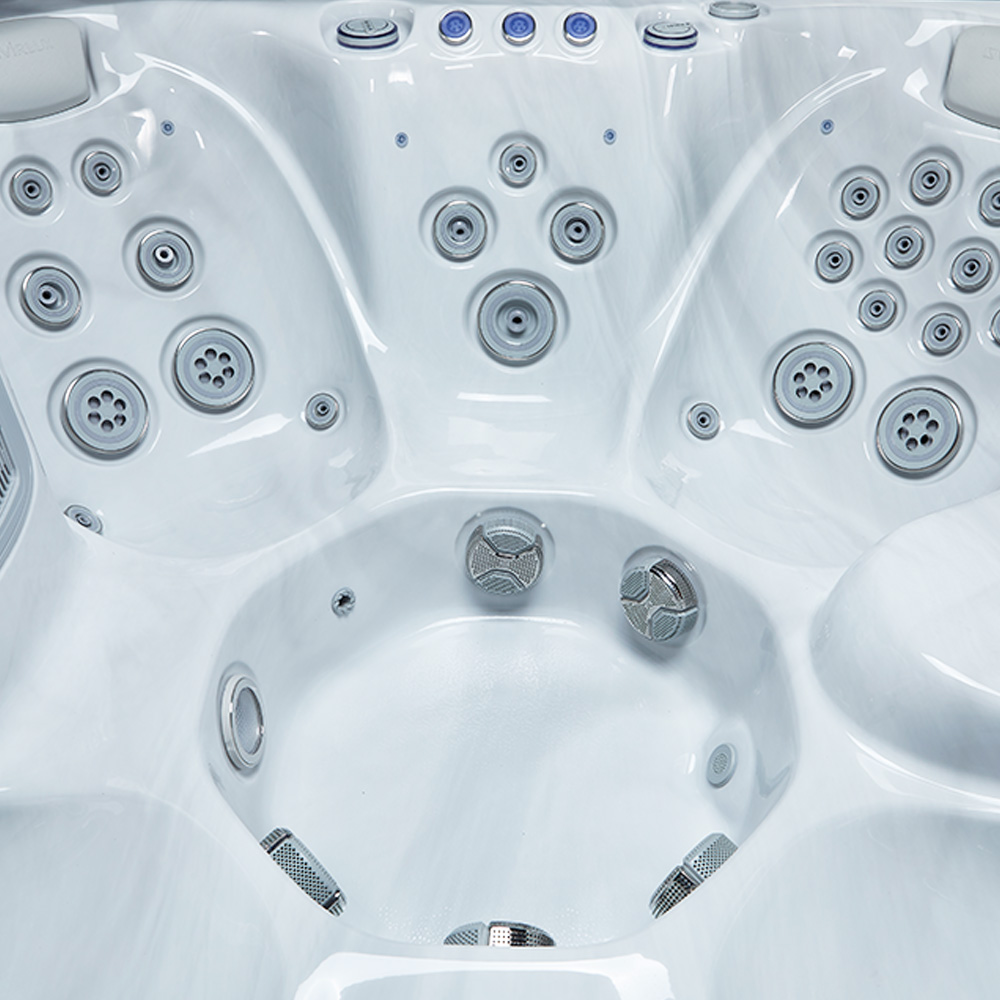

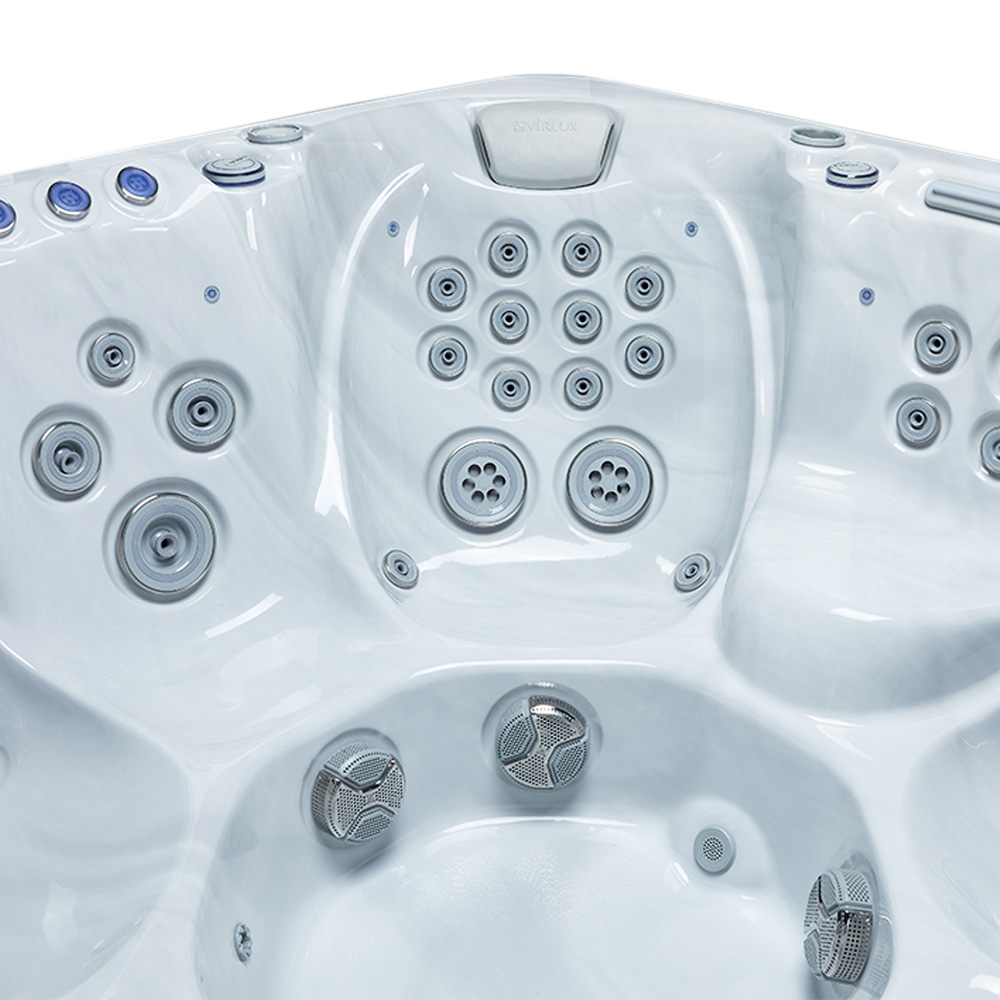

Total Jets (pcs) | 54 |
6' Rotational Jets (pcs) | 4 |
6' Directional Jets (pcs) | 4 |
4'' Directiona Jets(pcs) | 14 |
2.5' Directional Jets (pcs) | 32 |
Ozone Jets | 1 |
Joyonway Control system | P68B123 |
Joyonway Touch panel | PB565 |
Pump 1(CE, TUV Approved) | One-speed / 1*2.0HP |
Pump 2(CE, TUV Approved) | One-speed / 1*2.0HP |
Circulation Pump (CE, TUV Approved) | 1 x 0.5HP |
Heater(CE, UL Approved) | 1 x 3.0kW |
Lighting(ETL Approved) | 1x12V, Multi-colored LED Underwater Light |
Ozone Water Purification System | Yes |
Electrical Requirements | 220-240V/50Hz, 22A Max. |
Filter Size | 50sq.ft. |
2' Diverter Valve(pc) | 2 |
1' Diverter Valve(pc) | 2 |
Air Control Valves (pcs) | 4 |
EVA Spa Pillows(pcs) | 3 |
Bottom Drain(pc) | 1 |
Drain Valve(pc) | 1 |
Urban Townhouse Backyards
When outdoor space measures just 4×5 meters, V1013 leaves room for grill and two lounge chairs. Full six-person capacity means you can still host Saturday night soaks with neighbors.
Boutique Hotel Compact Courtyards
Hotels with limited garden area can install V1013 instead of larger model. Guests still get six-person spa; hotel saves valuable square footage for other amenities.
First-Time Homeowner Purchase
Entry-level homes often come with smaller yards. V1013 allows new homeowners to add luxury feature without feeling they've "overfilled" property.
Vacation Rentals in Historic Districts
Many historic districts restrict backyard structures to certain dimensions. 2130×2130mm footprint often falls within permitted sizes where larger spas denied.
Rooftop Terrace Installations
Weight-loaded at 1,811kg filled, V1013 suits reinforced rooftop decks (engineer approval required). Compact base fits within typical rooftop elevator dimensions.
Multi-Generational Soaking
Grandparents, parents, and children can all sit together. 54 jets provide enough massage points without overwhelming young or sensitive users.
Installation Requirements
Electrical: 220-240V / 50Hz, 22A dedicated circuit with GFCI/RCD.
Foundation: Level reinforced concrete pad, 100mm minimum thickness, supporting 1,811 kg.
Access: 2130×2130mm base fits through standard 36" garden gates; diagonal delivery works for narrower openings.
Getting Started
Position empty V1013 on concrete pad.
Connect electrical via qualified electrician.
Fill via garden hose through filter compartment.
Power on; set temperature to 38°C via PB565 panel.
Add startup chemicals (pH balancer and sanitizer).
Quick Tips
Heating Time: First fill takes 12–20 hours to reach temperature. Subsequent heats faster.

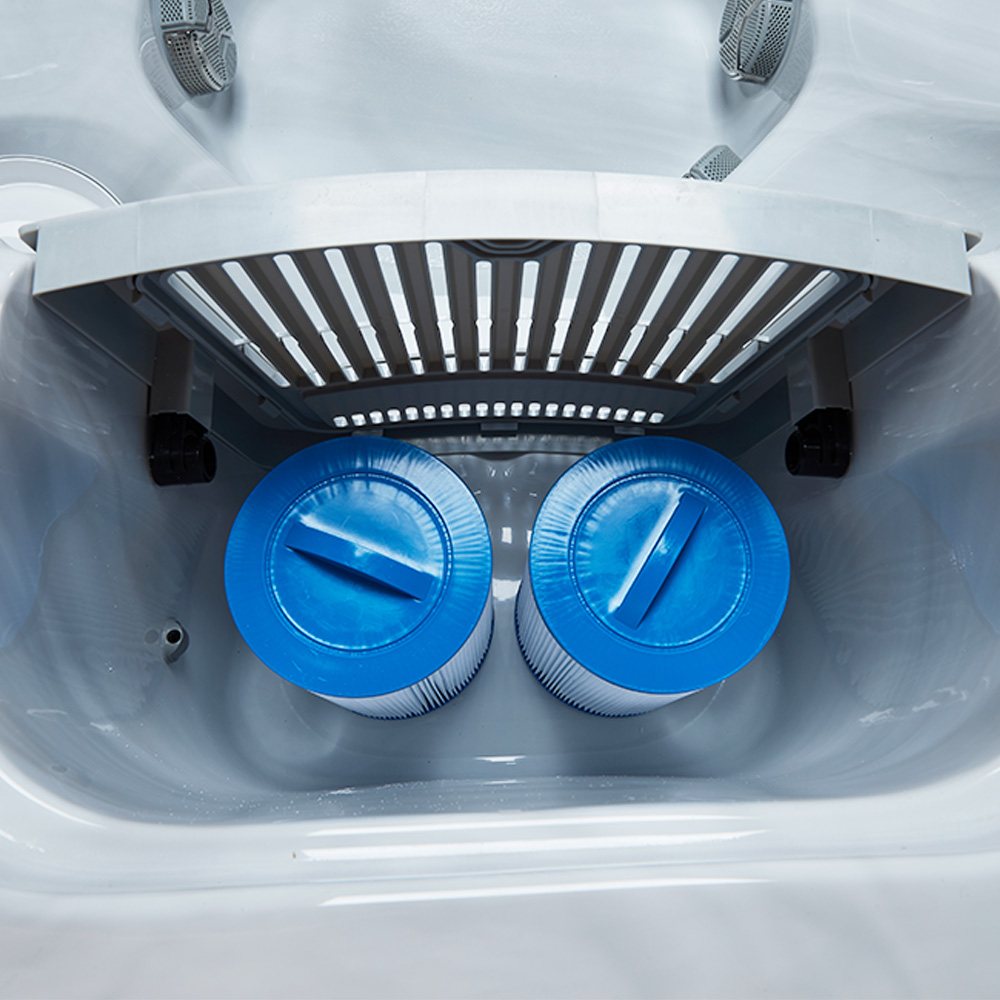

Filter Cleaning: Rinse 50 sq.ft. filter monthly; replace every 12–18 months.
Winter Operation: Never drain spa in freezing weather—insulation relies on water mass for stability.
Download Full Installation Manual (PDF) → [Click Here]
Q1: Does smaller footprint mean shallower seats?
A: No—seat depth identical to 2260mm VIRLUX models. Only exterior dimensions shrank; interior ergonomics remain generous.
Q2: Can six adults sit without touching shoulders?
A: Layout spaces seats approximately 550mm center-to-center—adults will make shoulder contact if all six used simultaneously. For personal space, limit to four adults.
Q3: Is V1013 available with lounger?
A: No—this model keeps all six seats upright. For lounger in compact footprint, see V1014 (5+1 configuration).
Q4: How does V1013 compare to V1004?
A: Both are 2130×2130mm, 6-person. V1013 has 54 jets (vs 48)—6 additional jets. V1004 is standard; V1013 is upgraded jet count.
Q5: Can I install V1013 on wooden deck?
A: If deck engineered for 1,811 kg (approx. 4,000 lbs) and reinforced beneath spa footprint, yes. Have structural engineer verify load capacity first.
Q6: What is shipping weight?
A: Approximately 450 kg on pallet. Delivery requires liftgate truck and pallet jack; curbside delivery standard.

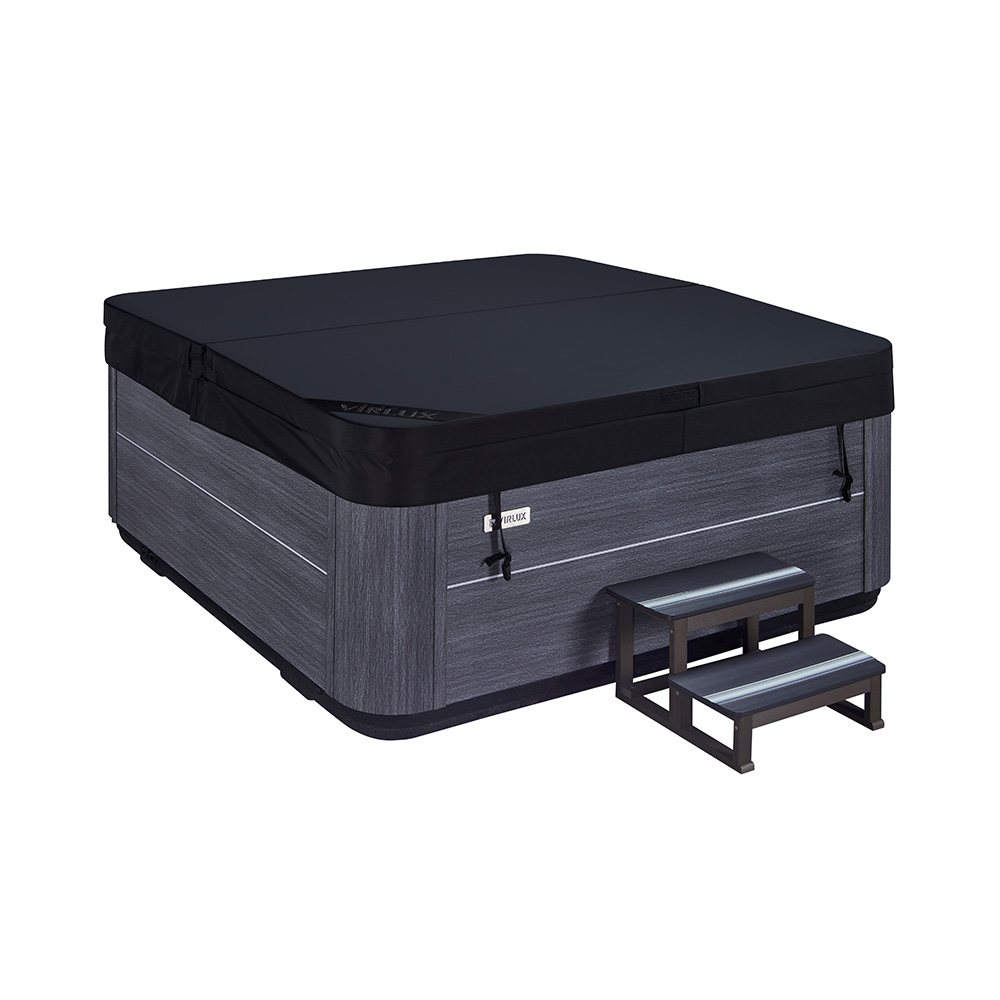

Q7: Does V1013 include cover?
A: Yes—75mm-thick insulated cover with locking straps included. Optional cover lifter available separately.
Q8: How often change water?
A: With ozone and regular chemical maintenance, water stays clear for 3–6 months. Drain and refill when total dissolved solids exceed 1,500 ppm.
