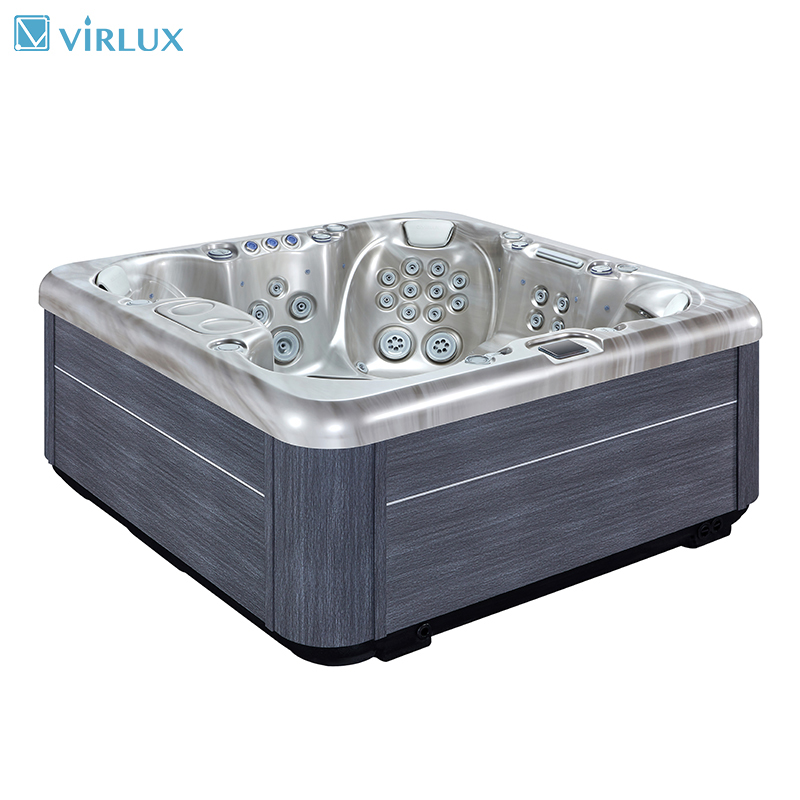

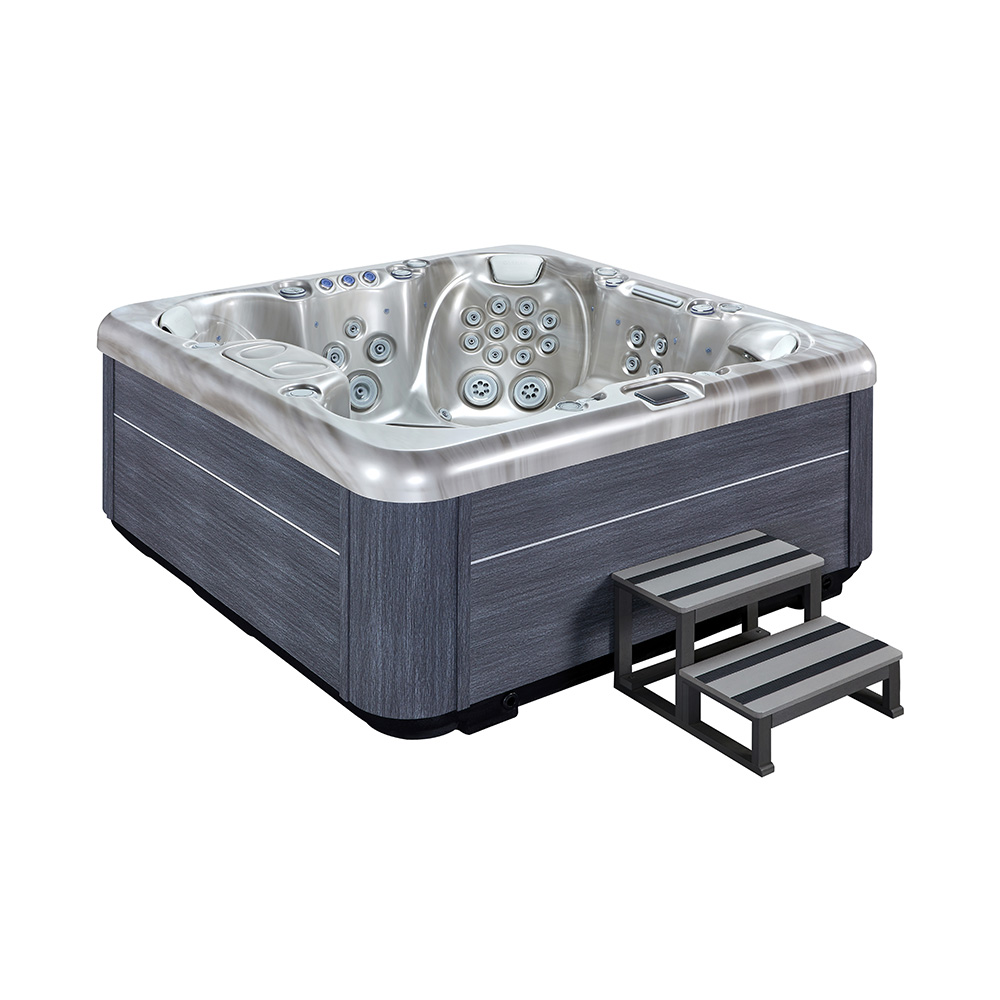

V1013 T21
| Quantity: | |
|---|---|

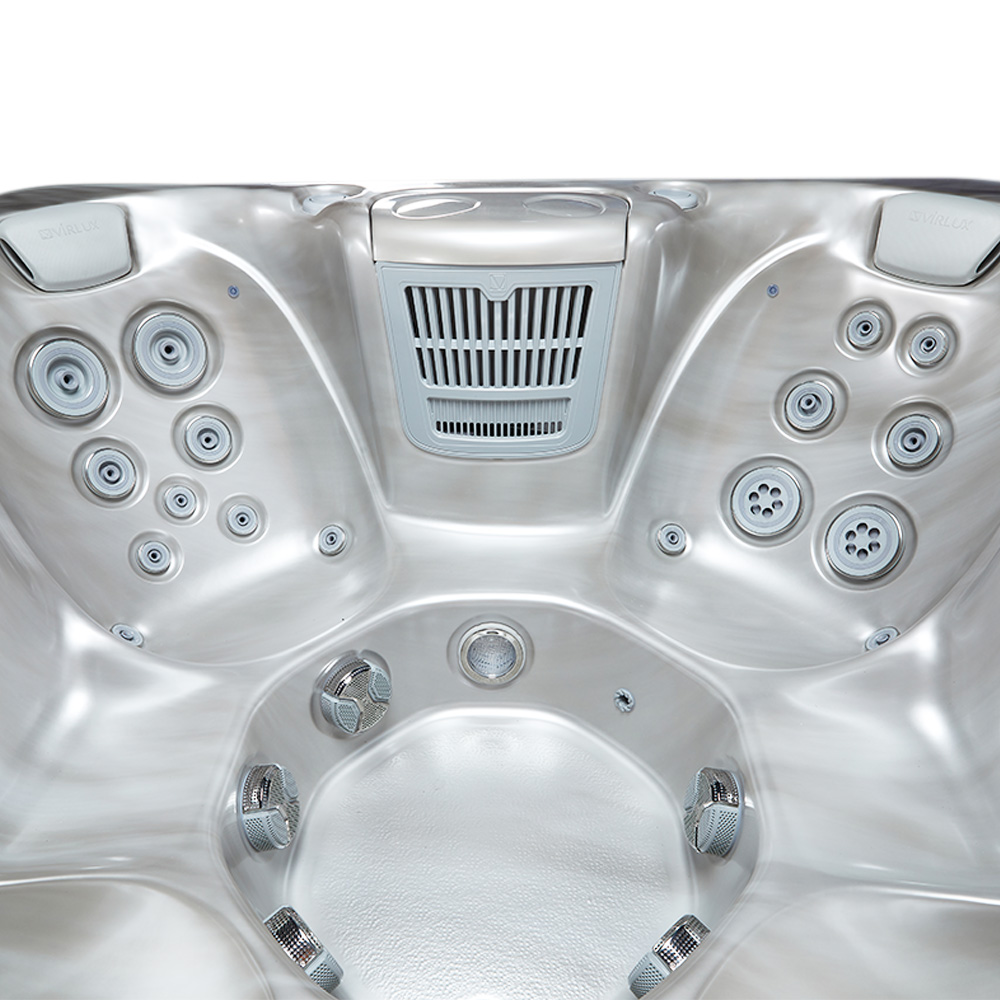

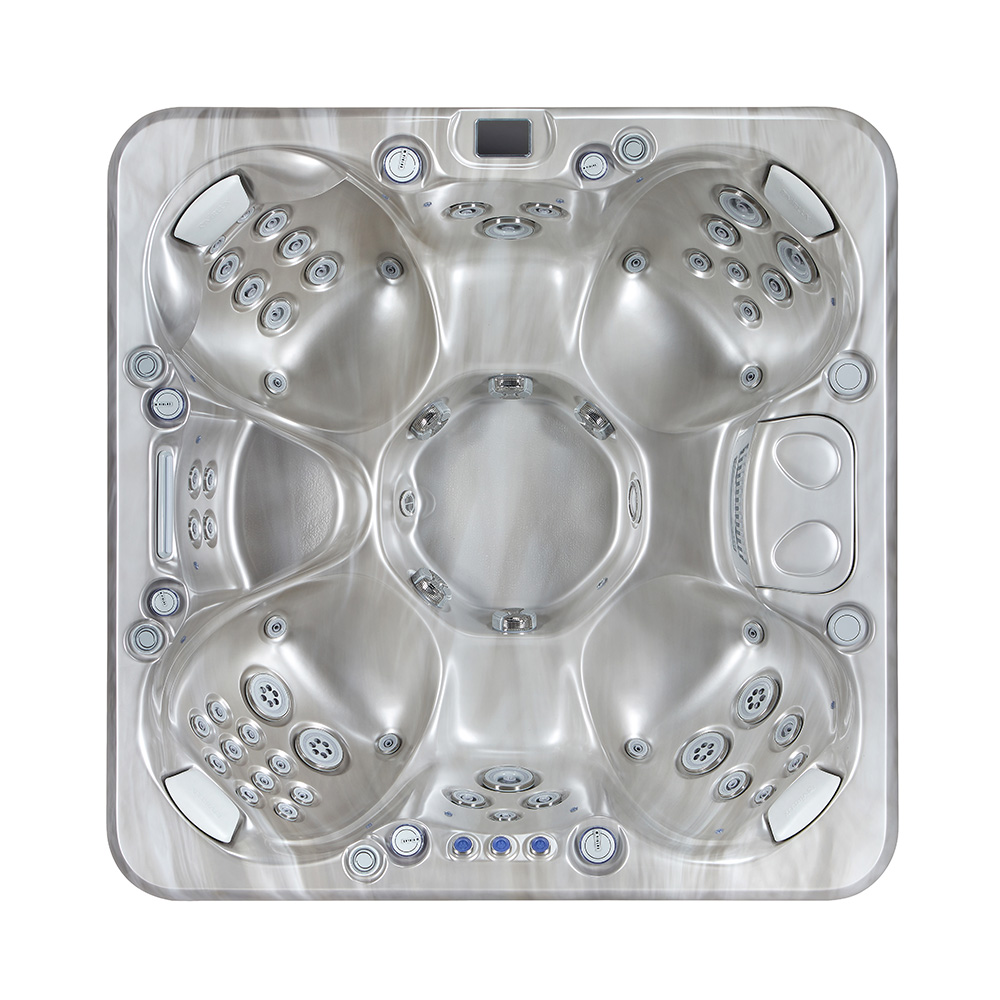

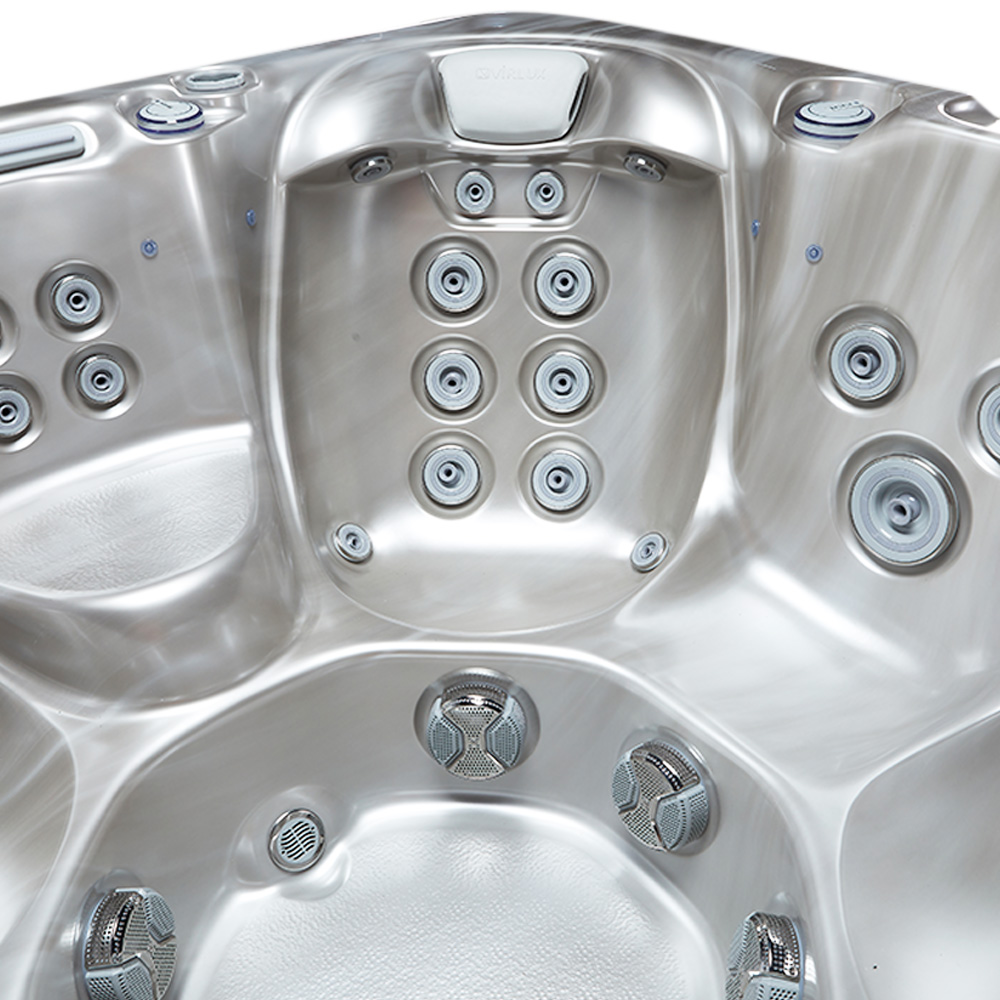

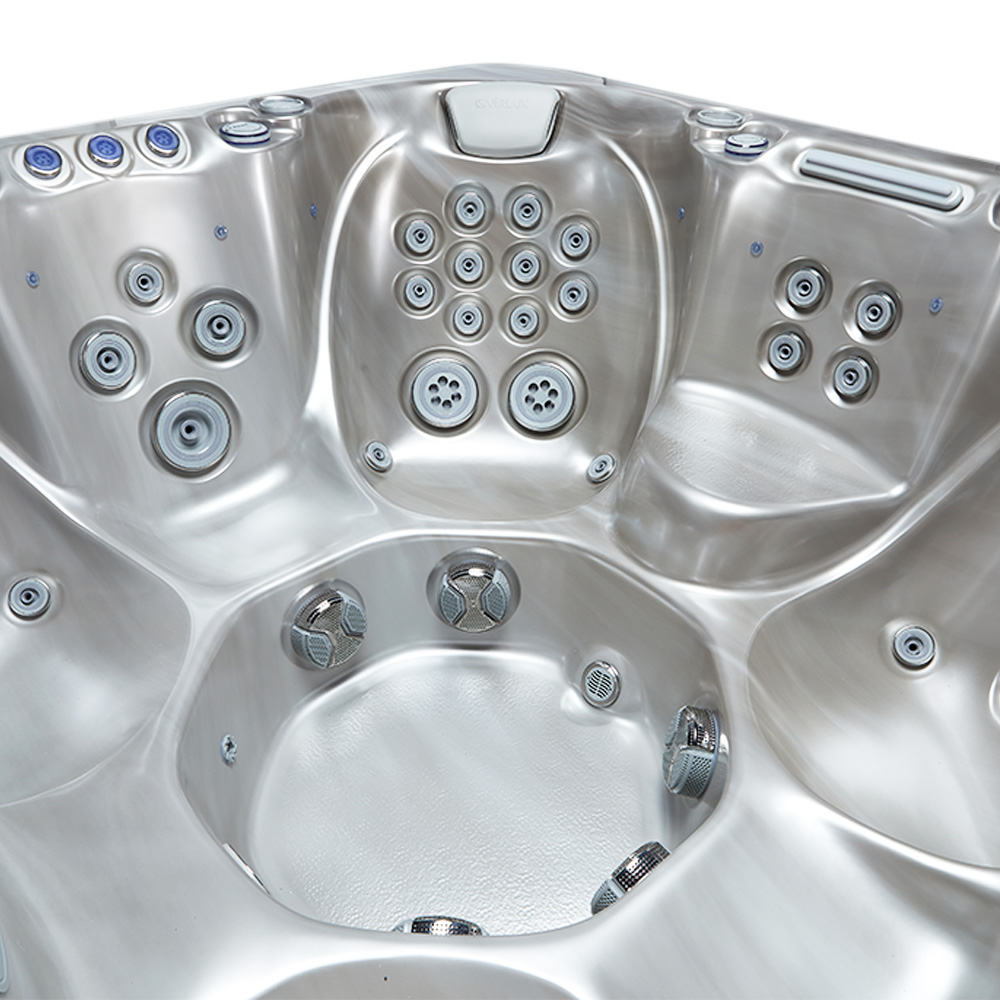

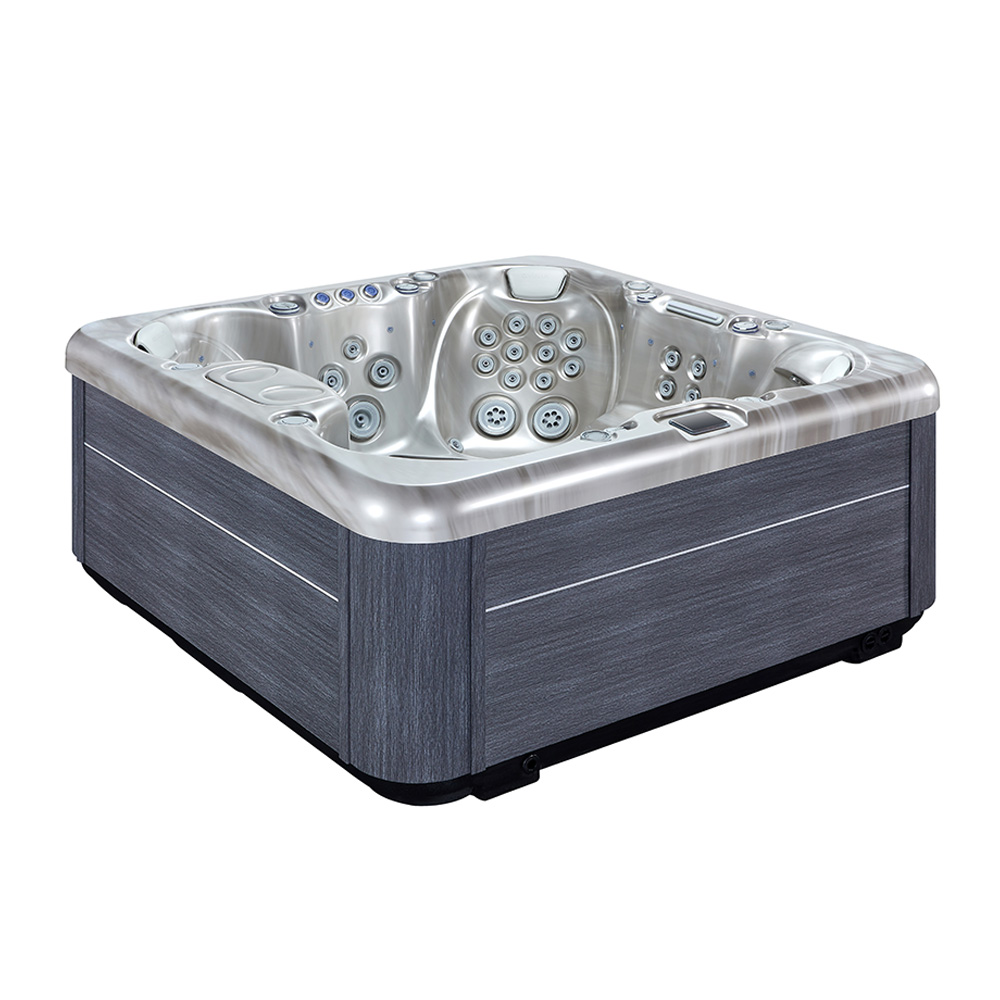

Outfitted with an impressive array of 54 fluid-dynamically optimized nozzles—including four 6-inch rotational jets and thirty-two 2.5-inch directional nodes. This complex system precisely targets neck, back, lumbar, and leg muscle groups, delivering customized relief ranging from a gentle aquatic caress to deep-tissue kneading.
Banish weak water pressure forever. Driven by twin 2.0HP heavy-duty pumps (CE and TUV certified) and complemented by a whisper-quiet 0.5HP circulation pump, this robust architecture guarantees that every single jet receives a relentless, stable surge of water to melt away your daily fatigue.

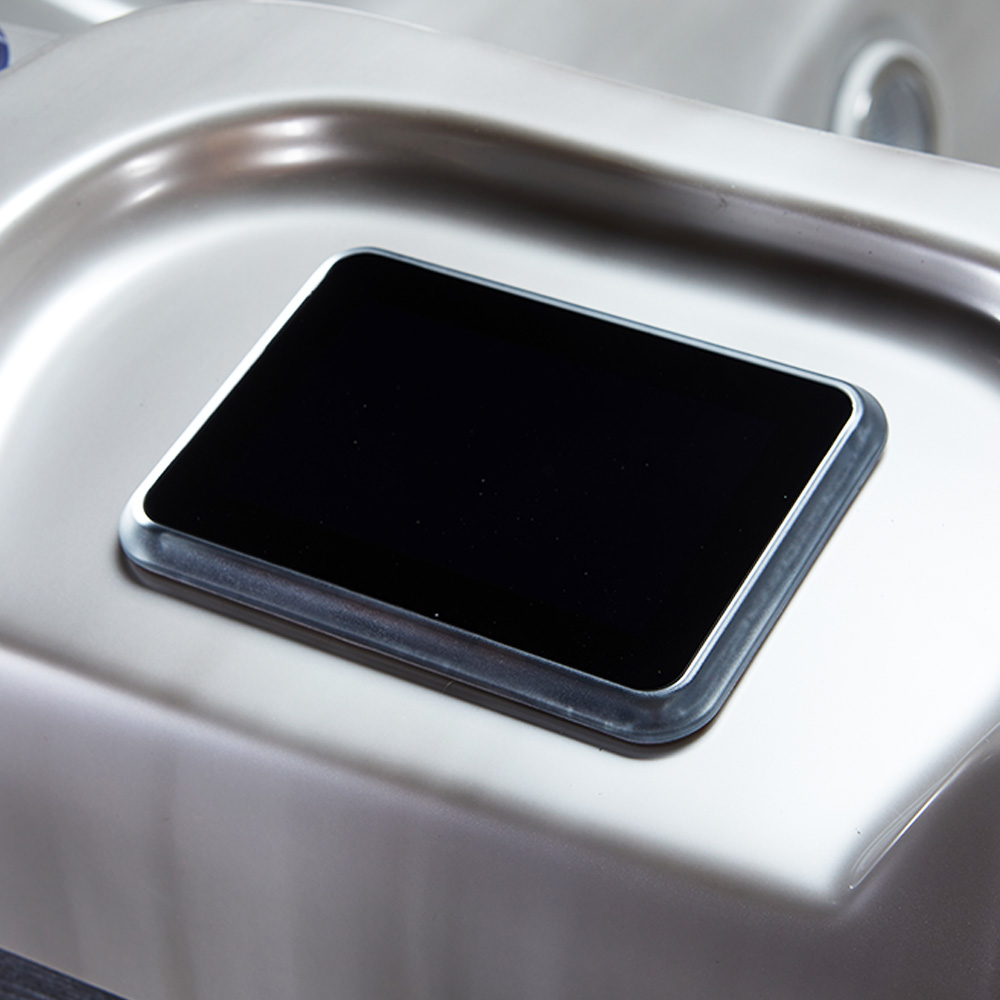

Powered by the industry-leading Joyonway P68B123 control module and accessed via a crystal-clear PB565 touch interface. The operational logic is incredibly straightforward, allowing you to instantly command the highly efficient 3.0kW heater to maintain your perfectly tailored soaking temperature.
Integrating an advanced ozone injection system with continuous physical filtration to flawlessly eradicate impurities and microscopic contaminants. This intelligent mechanism drastically reduces the reliance on harsh chemical sanitizers, keeping the water pristine and exceptionally gentle on sensitive skin.
Equipped with a standard 12V multi-colored LED underwater light matrix that lets premium illumination dance gracefully across the ripples. Whether you desire a tranquil deep sapphire or a vibrant emerald green, you can effortlessly cycle through hues to alleviate mental anxiety instantly.
Featuring a high-polymer PS composite cabinet paired with a high-density insulating layer and a fully sealed ABS reinforced pedestal base. This comprehensive insulation shield acts as cold-weather armor, aggressively blocking thermal escape in freezing climates and drastically reducing your electricity bills.
Specification | Data |
Model No. | V1013 |
Dimensions (L x W x H) | 2130 2130 940 mm |
Seating Capacity | 6 adults |
Lounge Seat(s) | 0 adults |
Water Capacity | 1,391 liters |
Dry / Filled Weight | 420 kg / 1,811 kg |
Spa Shell Material(USA) | Aristech ® Acrylic |
Spa Cabinet Material | PS Wood-Plastic Composite Panels |
Cabinet Frame | Preserve Woods + stainless steel |
Bottom (Pedestal Base) | ABS sheet |
Total Jets (pcs) | 54.0 |
Control System & Panel | Joyonway P68B123 / PB565 |
Pumps | 2 x 2.0HP (One-speed) + 1 x 0.5HP Circ Pump |
Heater | 1 x 3.0kW |
Lighting | 1x12V, Multi-colored LED Underwater Light |
Electrical Requirements | 220-240V/50Hz, 22A Max. |
Ozone System | Yes (1.0 Ozone Jet) |
Family Patio Bonding
Turn your weekend afternoons into a private family retreat. The six-seat configuration ensures parents and children all have their designated comfort zones, fostering unforgettable bonding moments illuminated by vibrant underwater LED hues.
Boutique Airbnb Value-Add
Act as a powerful magnet for high-paying rental guests. The expansive, barrier-free seating is highly attractive to groups of travelers, significantly boosting your property's aesthetic appeal, occupancy rates, and overall return on investment.
Post-Workout Athletic Recovery
For fitness aficionados, the dense cluster of directional jets combined with 3.0kW thermal retention acts as a private physiotherapy clinic. It rapidly flushes lactic acid, dramatically alleviating muscle stiffness and joint soreness after intense physical exertion.
Urban Rooftop Social Gatherings
Host sophisticated twilight gatherings above the city skyline. The symphony of rushing water and laughter pairs perfectly with the tub's weather-defying stainless steel and treated wood framework, maintaining its structural integrity against unpredictable metropolitan climates.
Site & Electrical Requirements:
With a filled weight of 1,811 kg, your chosen foundation (concrete pad, reinforced decking, or structural balcony) must support a minimum load-bearing capacity of 500kg/m². A certified electrician must install a dedicated 220-240V/50Hz circuit rated for a 22A maximum load, protected by a reliable Residual Current Device (RCD).
Getting Started
With the power disconnected, insert a garden hose into the filter housing to fill the basin up to the recommended water line.
Energize the circuit breaker; the Joyonway touch panel will illuminate and execute a rapid diagnostic check.
Select your desired climate (37°C - 38°C is optimal for beginners) and activate the heating element.
Briefly engage the primary pumps to bleed any trapped air from the plumbing, and your sanctuary is ready.
Quick Tips
Run the ozone generator and circulation pump for two hours prior to your maiden voyage to ensure absolute water purity.
The impenetrable ABS base pan naturally repels ground moisture and pests; simply ensure the surrounding perimeter has adequate drainage for effortless maintenance.
Q1: Why doesn't the V1013 feature a reclining lounge seat?
A: We engineered this model specifically for barrier-free socialization and maximum spatial efficiency. The open six-seat format prevents leg-tangling and accommodates half a dozen adults comfortably, making it the ultimate choice for hosts and large families.
Q2: Will running this spa cause a massive spike in my energy bills?
A: Not at all. Benefitting from extreme-density thermal insulation and an ultra-low-draw 0.5HP circulation pump, the system locks in heat masterfully. The German-inspired thermal logic ensures cost-effective daily operation even in cooler climates.
Q3: What makes the Aristech® Acrylic surface superior?
A: Imported directly from the United States, Aristech® surfaces boast peerless resistance to UV degradation, fading, and micro-scratches. Its non-porous nature guarantees a luxurious tactile feel while remaining remarkably effortless to wipe clean.
Q4: Can I use this hot tub outdoors during freezing winters?
A: Absolutely. The synergy between our formidable 3.0kW titanium heater and the multi-layered cabinet insulation guarantees rapid heat-up times and unwavering temperature stability, delivering a magical soaking experience amidst the snow.
Q5: How customizable is the underwater lighting?
A: The standard 12V multi-colored LED system offers an immersive visual spectrum. Using the PB565 interface, you can effortlessly cycle through solid therapeutic colors like emerald green or sapphire blue, or select dynamic fading modes to match your mood.
Q6: What is involved in routine water maintenance?
A: Our integrated ozone purification system handles the heavy lifting. Your responsibilities are minimal: check the pH balance weekly, rinse the paper filter cartridge periodically, and add a minimal dose of spa-specific clarifier as needed.
